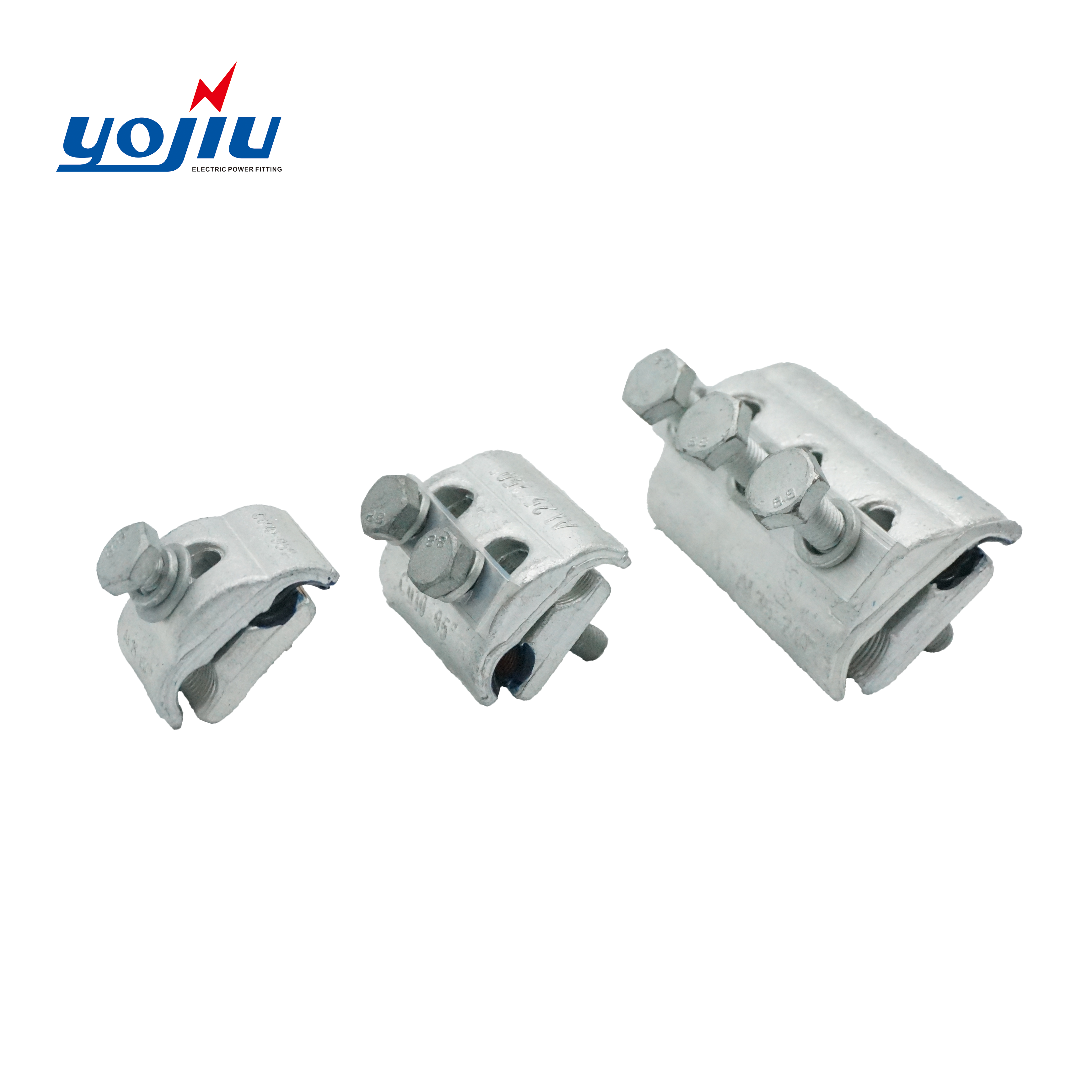

Bimetallic Parallel Groove Clamp CAPG Series
Inquire NowDescription

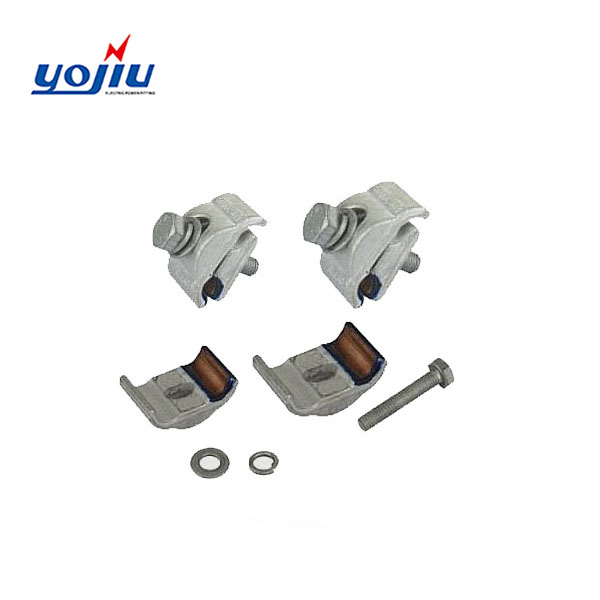

The Bimetallic Parallel Groove Clamp CAPG Series is expertly engineered to provide robust connections between two parallel bare conductors. This innovative clamp features an aluminum alloy conductor on the main side and a copper conductor on the tap side, ensuring optimal performance and durability.
Key features include:

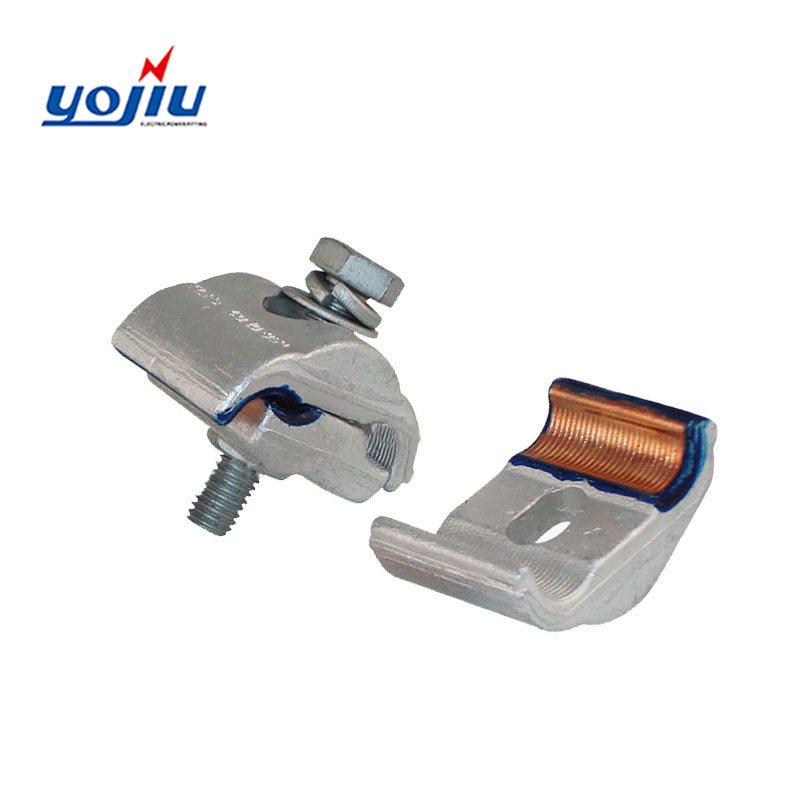

- Hot Compressed Cupal Plate: Guarantees excellent electrical contact while preventing corrosion.
- Cross-Grooved Clamp Channels: Enhance mechanical pullout strength and improve electrical connectivity.
- Spring Washers: Maintain consistent pressure, accommodating any expansion due to temperature fluctuations.
Specifications
| Item No. | Wire Range (mm²) | Main Dimension (mm) | Bolts Qty. |
|---|---|---|---|
| CAPG-A1 | CU: 6-50, AL: 16-70 | L: 25, B: 42, H: 40, M: 8 | 1 |
| CAPG-A2 | CU: 10-95, AL: 25-150 | L: 30, B: 46, H: 50, M: 8 | 1 |
| CAPG-B1 | CU: 6-50, AL: 16-70 | L: 40, B: 42, H: 45, M: 8 | 2 |
| CAPG-B2 | CU: 10-95, AL: 25-150 | L: 50, B: 46, H: 50, M: 8 | 2 |
| CAPG-B3 | CU: 16-185, AL: 35-240 | L: 62, B: 58, H: 60, M: 10 | 3 |
| CAPG-C1 | CU: 6-50, AL: 16-70 | L: 60, B: 42, H: 45, M: 8 | 3 |
| CAPG-C2 | CU: 10-95, AL: 16-150 | L: 70, B: 46, H: 50, M: 8 | 3 |
| CAPG-C3 | CU: 25-185, AL: 35-240 | L: 90, B: 58, H: 60, M: 10 | 3 |
| CAPG-C4 | CU: 35-240, AL: 35-300 | L: 105, B: 65, H: 70, M: 10 | 3 |
