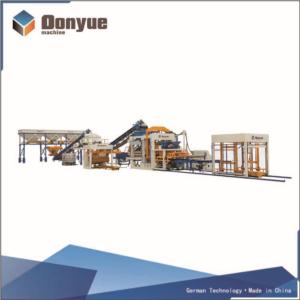

Block making machine
Inquire NowDescription
The Block Making Machine is an advanced solution designed for the efficient production of concrete blocks. This fully automated concrete block making line is suitable for large, medium, and small enterprises, ensuring high productivity and consistent quality. It features a semi-automatic option that includes a curing room, providing a simple yet effective operation that can transition to full automation.
The full automatic line encompasses a mother and finger car, steam curing room, and a high level of automation that integrates feeding, batching, mixing, conveying, stacking, and packing processes. This machine is engineered for maximum efficiency and reliability, making it an ideal choice for businesses looking to enhance their manufacturing capabilities.
Specifications
| Product Name | QT12-15 Block Making Machine |
|---|---|
| Size | 3800 * 2500 * 3550 mm |
| Block Making Period | 10-15 seconds |
| Vibration Force | 100-130 kN |
| Host Machine Power | 56.2 kW |
| Host Machine Weight | 13.5 T |
| Pallet Size | 1400 * 900 * 35 mm |
| Color | Optional |
Products Capacity
| Size (LxWxH) | pcs/mould | pcs/hour | pcs/8 hours |
|---|---|---|---|
| 200X100X60 | 42 | 7560 | 60480 |
| 240X115X53 | 60 | 10800-14400 | 86400-115200 |
| 400X200X200 | 12 | 2160-2880 | 17280-23040 |
| 200X163X60 | 28 | 4320 | 34560 |
Block Samples
For a visual representation of the blocks produced by this machine, please refer to the block samples available.
Factory and Client
Our factory is equipped with state-of-the-art technology and has successfully served numerous clients in the concrete block manufacturing industry.
