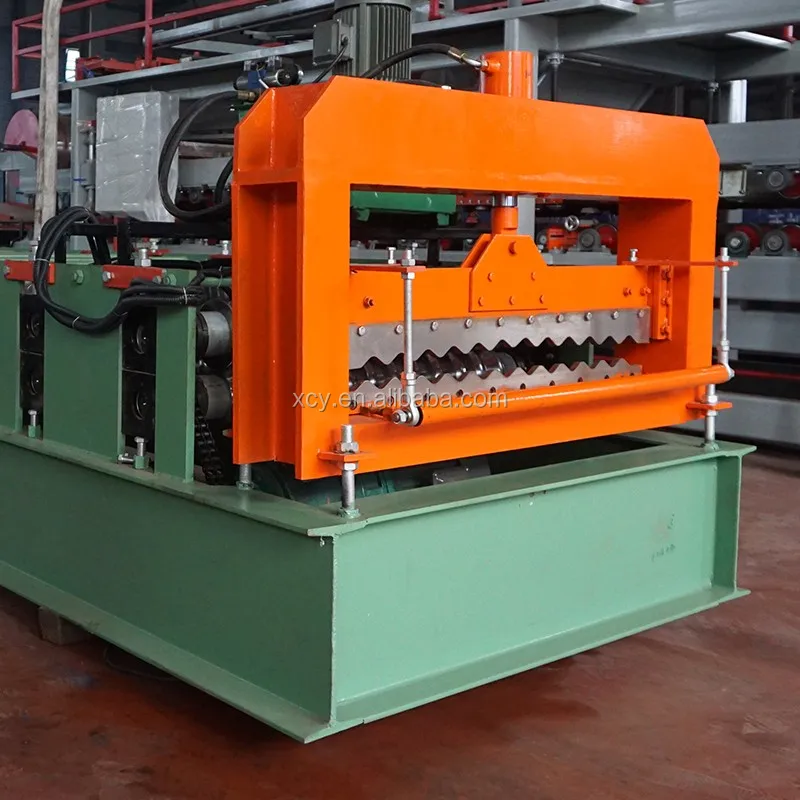

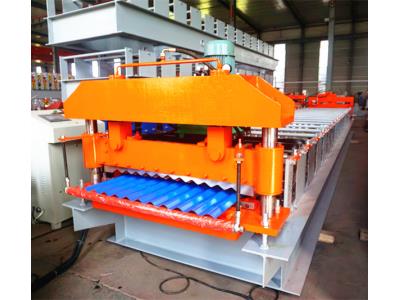

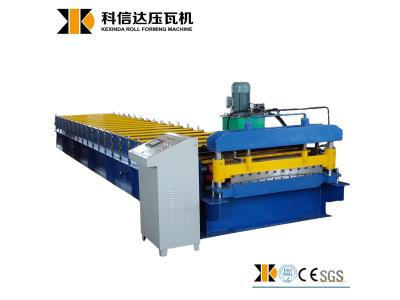

BOTOU KEXINDA 836 Roof Corrugating Cold Roll Forming Machine
Inquire NowDescription
The BOTOU KEXINDA 836 Roof Corrugating Cold Roll Forming Machine is a versatile and efficient solution designed for the manufacturing of corrugated roofing sheets. This machine excels in processing a variety of materials including steel, color steel plates, GI, and aluminum sheets. Its robust construction and advanced features ensure high productivity and precision, making it an essential tool for any roofing production line.
Equipped with manual de-coiling capabilities, the machine can accommodate up to 5 tons of raw material, facilitating a seamless workflow. The design includes multiple rollers for forming, with an impressive configuration of 9 upper rows and 11 lower rows, ensuring a consistent and high-quality output. The BOTOU KEXINDA 836 is ideal for businesses looking to enhance their roofing manufacturing processes with a reliable and high-performance machine.
Specifications
| No. | Specification | Details |
|---|---|---|
| 1 | Suitable to process | Steel, Color steel plate, GI, Aluminium sheet |
| 2 | Width of the plate | 1000mm |
| 3 | Thickness of the plate | 0.3-0.8 mm |
| 4 | De-coiler | Manual, can load 5 tons raw material |
| 5 | Rollers for forming | Up layer: 9 rows, Down layer: 11 rows |
| 6 | Diameter of the roller | 70 mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4 kw |
| 9 | Productivity | 8-12 m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3 kw |
| 13 | Processing precision | Within 1.00 mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 12 mm |
| 16 | Main structure of the machine | 300 H steel |
Additional Information
For optimal performance, ensure regular maintenance and check the hydraulic system for any leaks. This machine is designed for heavy-duty use in industrial settings, providing robust and reliable operation for all your roofing manufacturing needs.
