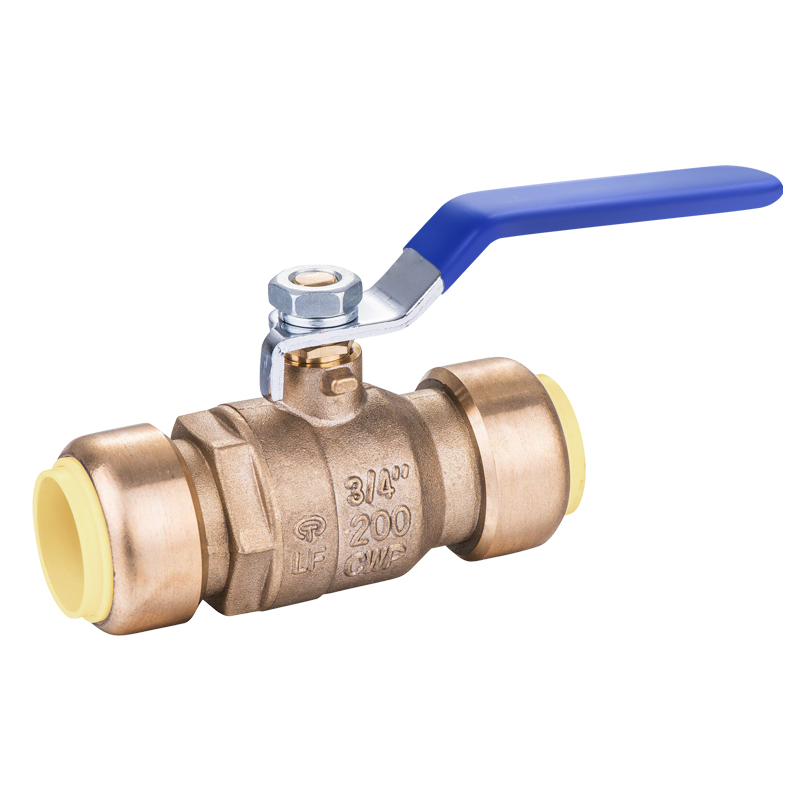

OEM ODM BRASS PUSH FIT BALL VALVE
Description
The BRASS PUSH FIT BALL VALVE is a robust and reliable valve designed for efficient water flow management. Constructed from high-quality materials including C37700 and C46500 brass, this valve features a forged brass body and a full port design, ensuring maximum flow capability. With a maximum working temperature of 203°F (95℃) and a working pressure of 200 PSI, it is built to withstand demanding conditions. The innovative push-fit end design adheres to IGC188 and ASSE 1061 standards, making installation quick and hassle-free. This valve is certified for use with water and carries multiple approvals including cUPC, NSF/ANSI 61, NSF/ANSI 372, and IGC188, ensuring reliability and safety in any application.
Specifications
| Attribute | Details |
|---|---|
| Model Number | 4PF/ LF-4PF |
| Material | Brass |
| Temperature of Media | Normal Temperature |
| Pressure | Low Pressure |
| Power | Manual |
| Media | Water |
| Port Size | 1/2″-1″ |
| Structure | Ball |
| Standard or Nonstandard | Standard |
| Certificate | CSA, UL, FM, IAMPO |
Additional Information
Supply Ability: 500,000 Pieces per Month; OEM welcome.
Packaging & Delivery:
| Details | Information |
|---|---|
| Packaging Details | Standard export package unless special requirements are provided. Custom colorful packaging is also available per design. |
| Port | Shanghai, Ningbo |
