Description

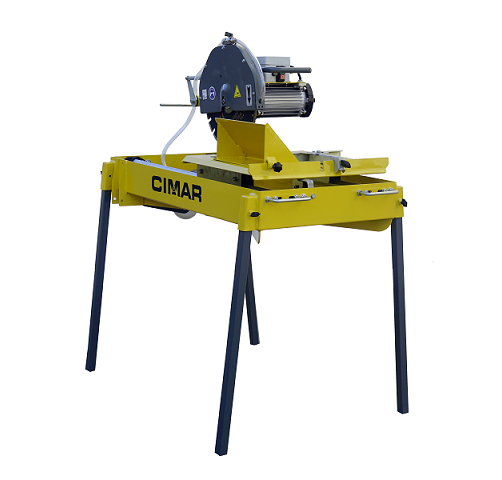

The CIMAR CBC-142 Brick Cutter is a versatile tool tailored for the building sector, designed to make precision cuts on a variety of materials including bricks, stones, concrete blocks, granite, marble, and natural stones. This robust cutter features a 14-inch cutting capacity, allowing for both straight cuts and 45-degree angle cuts, making it ideal for various construction applications.
Its user-friendly design enables operators to make cuts by pushing the sliding working table or tilting the cutting head. The CIMAR CBC-142 is compatible with cutting discs of Ø 350 mm or Ø 300 mm, ensuring flexibility for different cutting needs. Built for durability and efficiency, this brick cutter is equipped with a powerful single-phase engine (230V, 50Hz, 3Hp/2.2 Kw) that includes thermal and amperometric protection, ensuring safe operation.
Additional features include a switch with a release coil, overheat protection with manual reset, a sliding working table, a tilting cutting head, and an adjustable goniometer fence. The unit also comes with wheels for easy mobility and includes a submersible water recycling pump for water-cooled cutting, enhancing performance and prolonging blade life. Please note that the diamond blade is not included and a three-phase engine option is available upon request.
Specifications
| Feature | Details |
|---|---|
| Cutting Capacity | 14 inches |
| Compatible Discs | Ø 350 mm or Ø 300 mm |
| Engine Type | Single Phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Power | 3Hp / 2.2 Kw |
| Overheat Protection | Manual Reset |
| Wheels | Yes |
| Water Pump | Submersible Water Recycling Pump |
| Diamond Blade | Not Included |
| Three Phase Engine | Available Upon Request |
