Bridge steel cable tray roll forming making machines
Inquire NowDescription
The Bridge Steel Cable Tray Roll Forming Machine is a high-performance equipment designed for producing cable trays with exceptional quality and speed. Ideal for building material shops, this machine efficiently shapes galvanized steel coils into various tray types including solid and ladder side rails. With its impressive production capacity of 10-15 meters per minute, it is perfect for high-demand operations ensuring reliable performance.
Engineered for durability, this machine features advanced technology that guarantees high safety levels and precision in production. The automatic size changing mechanism allows for versatile adjustments, making it suitable for a wide array of applications in the construction and electrical sectors.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Cable tray forming machine |
| Material | Galvanized steel coil |
| Type | Solid type, ladder type side rail, cover |
| Width adjustable (mm) | 100-600 |
| Height adjustable (mm) | 50-200 |
| Thickness (mm) | 0.6-2.0 |
| Feeding width (mm) | 120-1000 |
| Max. forming speed (m/min) | 6-12 |
| Power | 3*4kw+5.5kw+11kw |
| Dimension (L*W*H) | About 25000*2000*1500mm |
| Weight (KG) | About 30000 |
| Certification | CE/ISO9001 |
| Warranty | 1 Year |
Additional Information
For optimal performance, it is recommended to regularly maintain the machine and ensure proper adjustments are made according to the specifications. The warranty covers all core components, providing peace of mind for users. Furthermore, the machine includes comprehensive after-sales support including installation, training, and technical assistance.

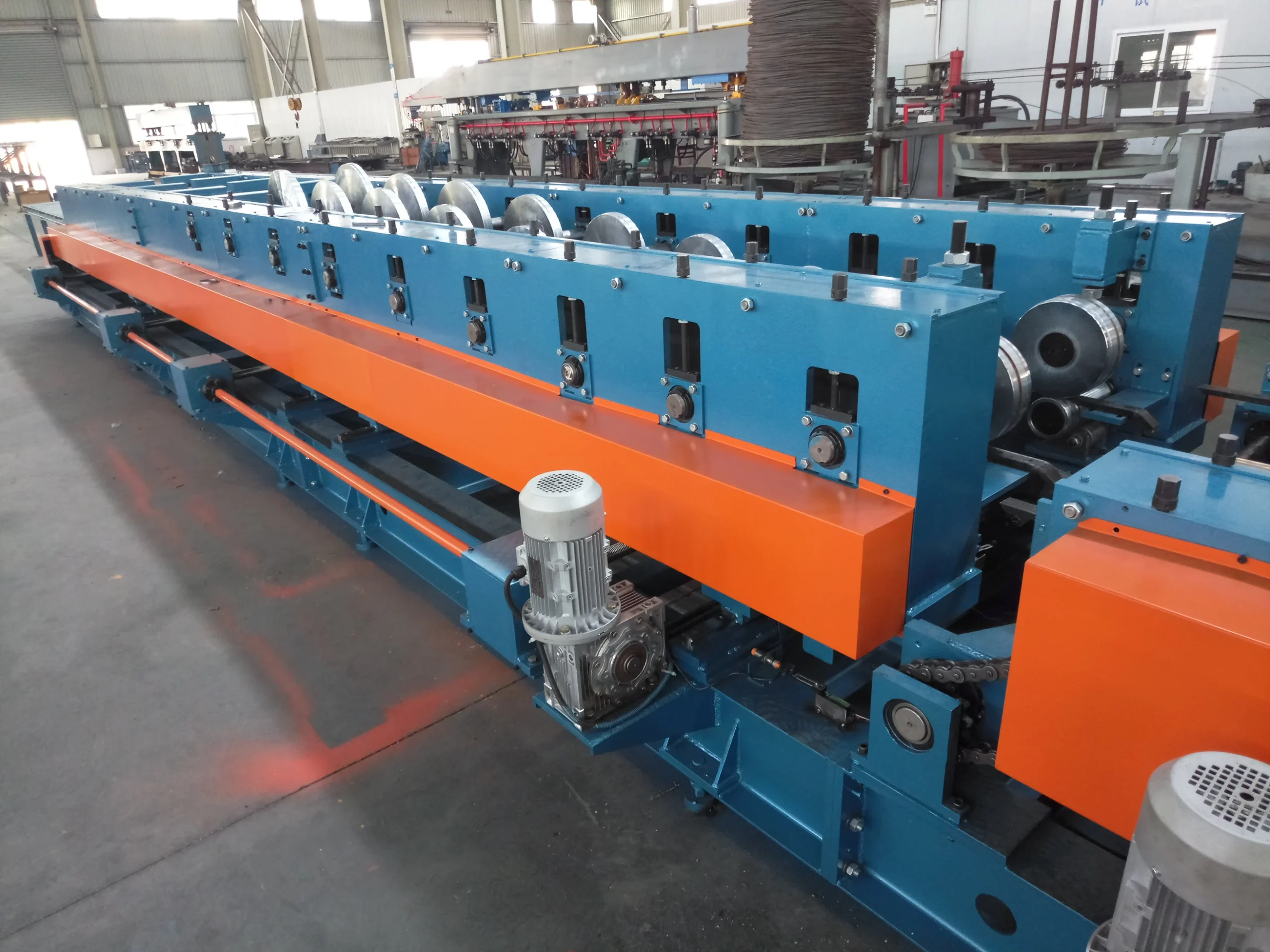

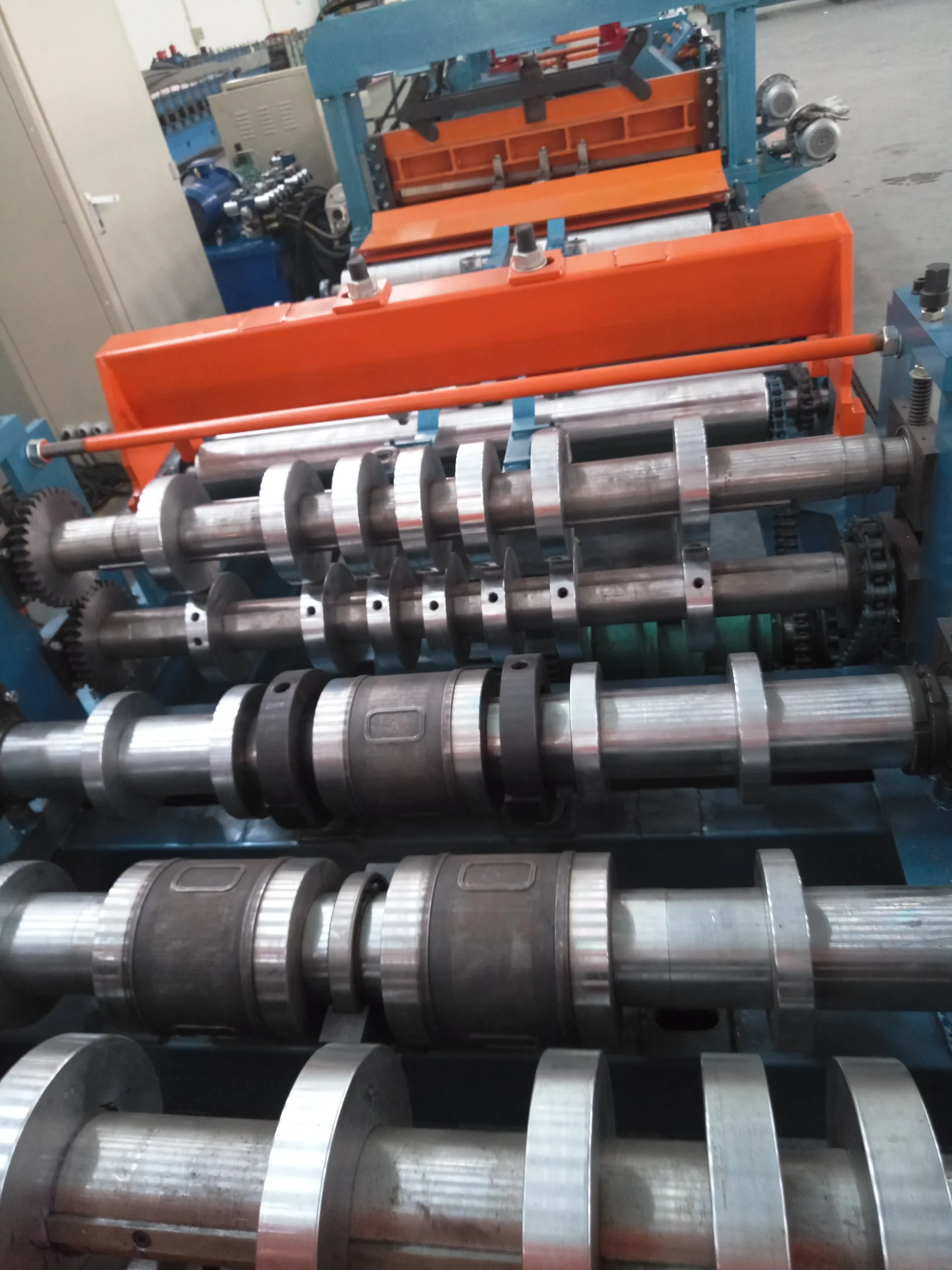

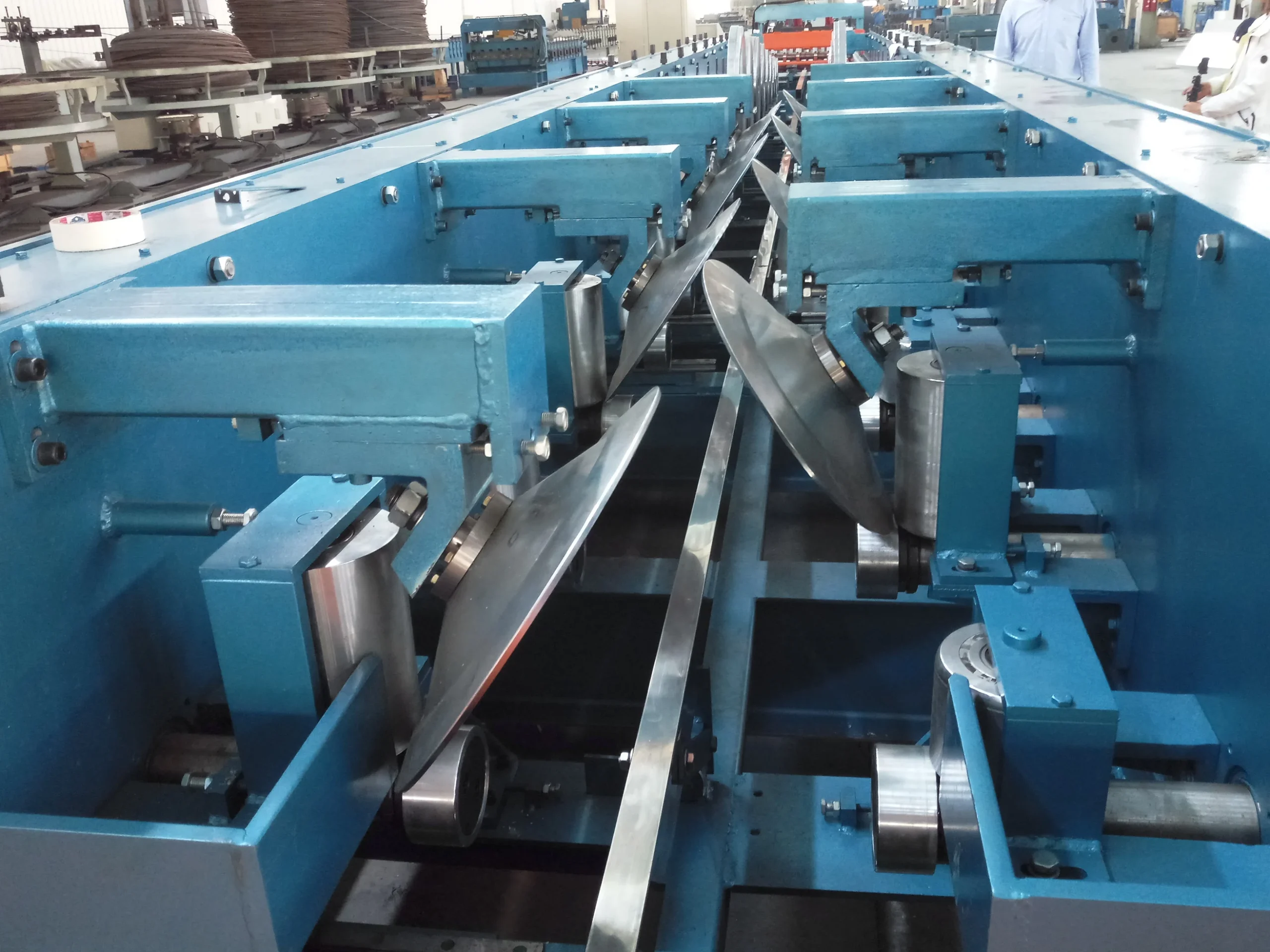

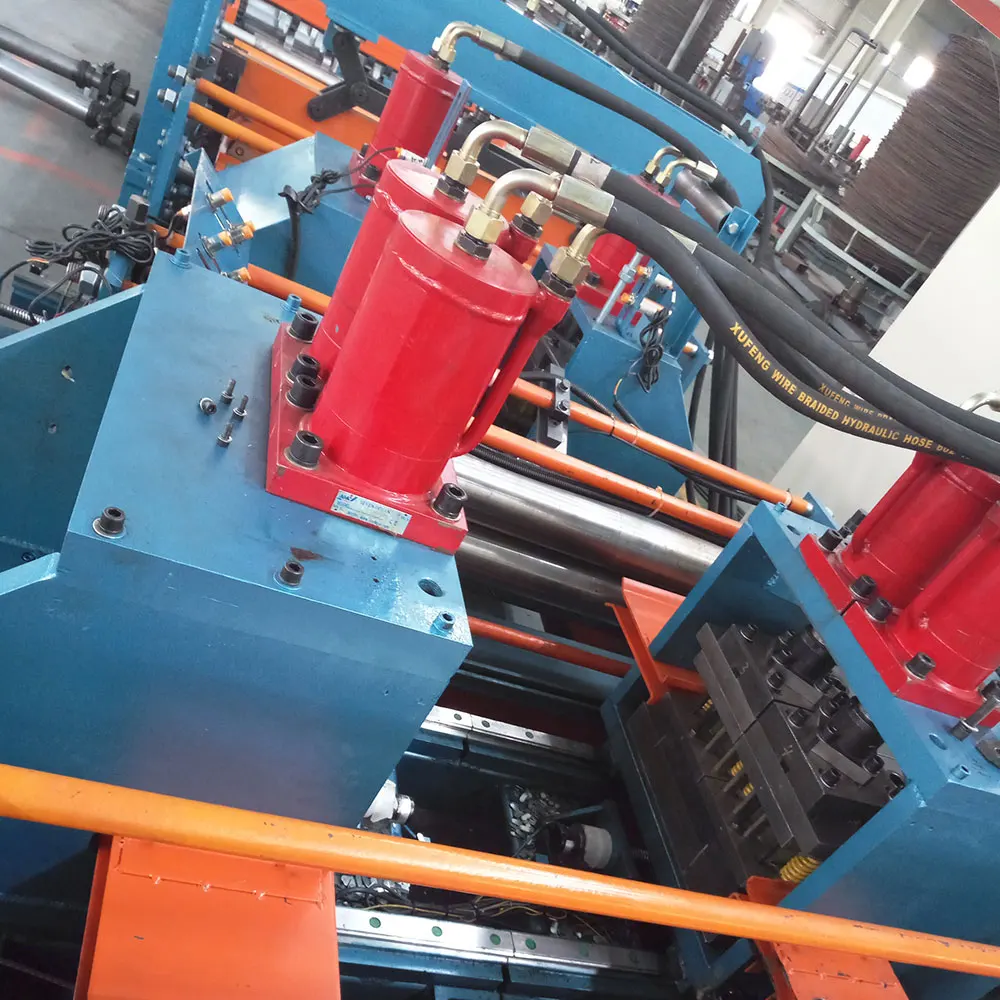

Images
