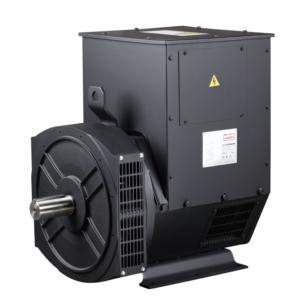

Description
The ASG series three-phase A.C. Synchronous brushless alternators represent a cutting-edge solution for reliable power generation. Designed with a star connection and a neutral point, these alternators feature a unique combination of protruding and concealed revolving magnetic fields. The excitive magnetic machine is pivot-based, utilizing high-quality electromagnetic and electrical engineering materials to ensure optimal performance. The automatic voltage adjustment system (A.V.R) expertly regulates the output voltage of the generator, maintaining it at a rated value for consistent power delivery.
By eliminating traditional ring and brush equipment, this series reduces wear and tear, mitigating issues related to grinding and ensuring a cleaner operation that minimizes interference with wireless devices. With impressive electrical characteristics, the ASG series alternators are engineered for reliability and efficiency.
Specifications
| Attribute | Value |
|---|---|
| Steady-state voltage regulation rate | ≤±0.5%; ±1.0% |
| Transient-state voltage regulation rate | ≤+15%; +20%; ≤-10%; -15% |
| Voltage setting range | ≥±10%Un |
| Line-Voltage sinusoidal waveform distortion rate | PN＞100KW, ≤2.5%; PN≤100KW, ≤4.0% |
| Voltage deviation rate with asymmetric loads | ≤5% |
| Insulation Level | H (Temperature rise limit: 125k); F (Temperature rise limit: 105k) |
| Voltage variation between cold-state and hot-state | ≤2% |
Additional Information
No additional information available.
