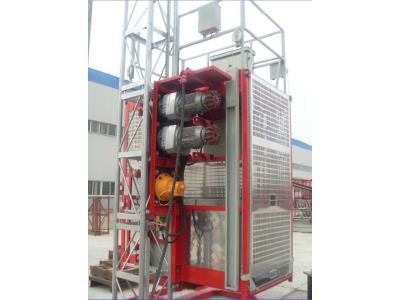

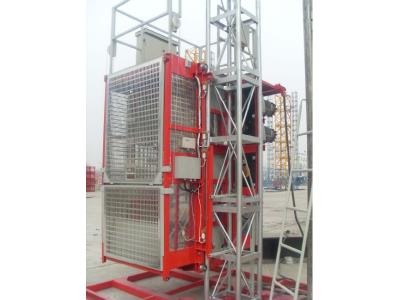

OEM ODM Building Hoist SC100/100
Description
The Building Hoist SC100/100 is a state-of-the-art lifting solution designed for high-efficiency construction operations. Manufactured by a leading state-owned company, it boasts a range of advantages, including long-term stability and reliability as evidenced by its successful global track record. Equipped with advanced technology and compliance with international standards such as ISO9001:2008 and CE certification, this hoist is engineered to meet the demands of large-scale construction projects. Its robust design and versatile functionality make it an indispensable asset on any job site.
Specifications
| No. | Description | Specification |
|---|---|---|
| 1 | Anchoring | Support anchor/ Concrete Insert – Included |
| 2 | Mast Section All mast sections are painted |
1.2T and 2.0T model (H<=150m): 650 x 650 x 1508mm, thickness = 4.5 mm Steel Grade: Q235 (#20 China Steel) |
| Joining Bolts with Self-Locking Nuts | 8.8 | |
| Cable Guides | Spacing: 7.5m, Material: painted | |
| Rubber strip | Urethane oil resistant | |
| 3 | Tie In | Minimum adjustable distance: 30 cm, Material: painted, Allowable up/down movement: +15° |
| 4 | Buffer | 1.2T and 2.0T model: Spring; 2.7T and 3.2T model: Hydraulic Buffer |
| 5 | Cage Structure | Base plate: Checked steel; Sidewall: Aluminum, No steel mesh; Upper half: Aluminum perforated; Lower half: Aluminum solid |
| 6 | Roof | All plate: Checked steel; Cage Dimension: 1.2T and 2.0T cages: 3.0 m (L) x 1.5 m (W) x 2.5 m (H); 2.7T and 3.2T cages: 3.8 m (L) x 1.5 m (W) x 2.5 m (H) |
| 7 | Roof Hand Railing | Material: Galvanized, box tube; Minimum Height: 90 cm |
| 8 | Doors | Material: Aluminum; Upper half: Punched; Lower half: Punched |
| 9 | Safety Devices | Anti-Drop Safety Device, Stop Limit Up, Stop Limit Down, 3-Phase Cut-off, ELCB at Ground, Limit Switch on Side Doors and Roof Doors, Horn, Emergency Cut-off |
| 10 | Electrical | Drive motor: IP55; Contactors Power Control: Telemechanique, ABB or SIEMENS |
| 11 | Cable | Guaranteed per purchase height for one (1) year |
| 12 | Ground Enclosure | Material: Steel net (all around); Mechanical and electrical interlock; Minimum height: 1.8 m |
| 13 | Painting | Sand blasting, either powder coating: 2 layers; Epoxy resin coat: Minimum 2 layers |
| 14 | Color | Available in various colors |
Additional Information
This hoist is designed for easy operation and maintenance, supported by a wide network of overseas branch offices for immediate service and convenience. Ideal for large construction projects, it ensures safety and efficiency on the job site.
