OEM ODM Building Hoist SC200/200
Description

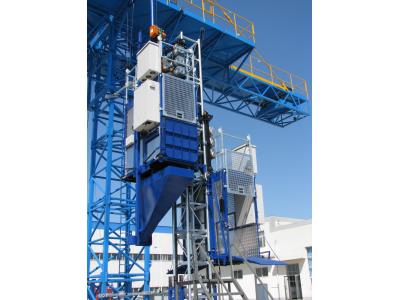

The Building Hoist SC200/200 is a robust and efficient lifting solution designed for construction projects of any scale. Recognized for its reliability and stability, this hoist is manufactured by CNBM, a Fortune Global 500 company, ensuring that you receive top-quality equipment backed by years of expertise and innovation. The SC200/200 is perfect for transporting materials and personnel vertically, making it an essential tool for modern construction sites. Its advanced design incorporates multiple safety features, high-quality materials, and customizable specifications to meet the demands of various projects.
Specifications
| No. | Description | Specification |
|---|---|---|
| 1 | Anchoring | Support anchor/Concrete Insert: Included |
| 2 | Mast Section | 1.2T and 2.0T model (H<=150m): 650 x 650 x 1508mm, thickness = 4.5 mm |
| Steel Grade | Q235 (#20 China Steel) | |
| Joining Bolts with Self-Locking Nuts | 8.8 | |
| Cable Guides | Spacing: 7.5m, Material: painted | |
| Rubber strip | Urethane oil resistant | |
| 3 | Tie In | Minimum adjustable distance: 30 cm |
| Material | painted | |
| Allowable up/down movement | +15° | |
| 4 | Buffer | 1.2T and 2.0T model: Spring; 2.7T and 3.2T model: Hydraulic Buffer |
| 5 | Cage Structure | Base plate: Checked steel; Sidewall: Aluminum, No steel mesh; Upper half: Aluminum perforated; Lower half: Aluminum solid |
| 6 | Roof | All plate: Checked steel |
| 7 | Roof Hand Railing | Material: Galvanized, box tube; Minimum Height: 90 cm |
| 8 | Doors | Material: Aluminum; Upper half: Punched; Lower half: Punched |
| 9 | Safety Devices | Anti-Drop Safety Device, Stop Limit Up, Stop Limit Down, 3-Phase Cut-off, ELCB at Ground, Limit Switch on Side Doors and Roof Doors, Horn, Emergency Cut-off |
| 10 | Electrical | Drive motor: IP55; Contactors Power Control: Telemechanique, ABB or SIEMENS |
| 11 | Cable | Guaranteed per purchase height for one (1) year |
| 12 | Ground Enclosure | Material: Steel net (all around); Mechanical and electrical interlock; Minimum height: 1.8 m |
| 13 | Painting | Sand blasting, either powder coating; Minimum 2 layers |
| 14 | Color | Customizable options available |
Additional Information
CNBM is proud to provide exceptional after-sales service through its extensive network of over 10 overseas branch offices, ensuring immediate assistance and support for all customers. The SC200/200 has been rigorously tested in various global construction projects, confirming its stability and reliability in demanding environments.
