Building Hoist SC500

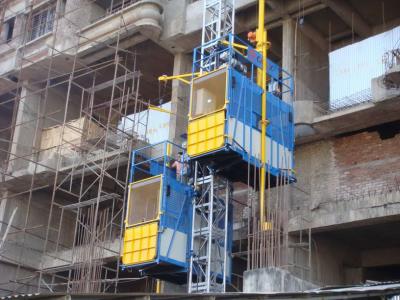

Inquire NowIntroducing the Building Hoist SC500, a robust and reliable solution designed for modern construction needs. Manufactured by a Fortune Global 500 company, this hoist stands out as a leader in quality and performance, utilized in major projects worldwide. The SC500 is engineered with precision, featuring a state-of-the-art design that ensures safe and efficient vertical transport of materials. Its ISO9001:2008 and CE certifications attest to its adherence to international quality standards. The SC500 is supported by a network of over 10 overseas branches, providing immediate service and convenience to clients.
Specifications
| No. | Description | Specification |
|---|---|---|
| 1 | Anchoring | Support anchor/ Concrete Insert – Included |
| 2 | Mast Section | 1.2T and 2.0T model (H<=150m), 650 x 650 x 1508mm, thickness = 4.5 mm |
| Steel Grade | Q235 (#20 China Steel) | |
| Joining Bolts with Self-Locking Nuts | 8.8 | |
| Cable Guides | Spacing: 7.5m, Material: painted | |
| Rubber strip | Urethane oil resistant | |
| 3 | Tie In | Minimum adjustable distance: 30 cm, Material: painted |
| Allowable up / down movement | + 15° | |
| 4 | Buffer | 1.2T and 2.0T model – Spring; 2.7T and 3.2T model – Hydraulic Buffer |
| 5 | Cage Structure | Base plate: Checked steel; Sidewall: Aluminum, No steel mesh; Upper half: Aluminum perforated; Lower half: Aluminum solid |
| 6 | Roof | All plate: Checked steel |
| 7 | Roof Hand Railing | Material: Galvanized, box tube; Minimum Height: 90 cm |
| 8 | Doors | Material: Aluminum; Upper half: Punched; Lower half: Punched |
| 9 | Safety Devices | Anti-Drop Safety Device, Stop Limit Up, Stop Limit Down, 3 – Phase Cut-off, ELCB at Ground, Limit Switch on Side Doors and Roof Doors, Horn, Emergency Cut-off |
| 10 | Electrical | Drive motor: IP55; Contactors Power Control: Telemechanique, ABB or SIEMENS |
| 11 | Cable | Guaranteed per purchase height for one (1) year |
| 12 | Ground Enclosure | Material: Steel net (all around); Mechanical and electrical interlock; Minimum height: 1.8 m |
| 13 | Painting | Sand blasting, either powder coating, 2 layers; Epoxy resin coat, Minimum 2 layers |
| 14 | Color | Customized options available |
Additional Information
The Building Hoist SC500 is designed to ensure safety and reliability on construction sites. With its advanced safety features and sturdy construction, it is the perfect choice for efficiently transporting materials at height. Regular maintenance is recommended to ensure optimal performance.
