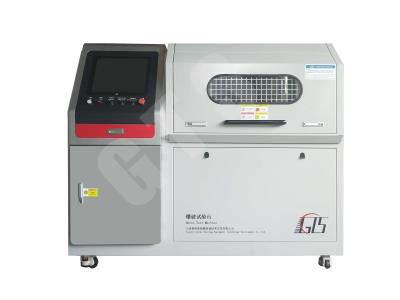

Burst test stand
Inquire NowDescription
The Burst Test Stand is an essential tool designed for conducting proof pressure and burst tests on various products such as radiators, condensers, evaporators, intermediate coolers, core and fan heaters, oil coolers, pressure meters, fire equipment, metal joints, valves, hose assemblies, pipelines, pressure containers, and pressure transmitters. This advanced testing machine allows precise control over critical parameters including test pressure, pressurization rate, and temperature, ensuring accurate results. With the capability to automate the testing process after configuration, it enhances efficiency and reliability in testing various products.
Specifications
| Feature | Details |
|---|---|
| Test Pressure | 0~500 MPa (select range according to need) |
| Medium | Water, water-glycol, and hydraulic oil |
| Pressurization Rate | 0~300 MPa/min (adjustable) |
| Environment Temperature | -60 to 180 ℃ |
| Media Temperature | RT to 180 ℃ |
| Single Test Piece Number | 1 piece |
| Diameter of Tested Sample | Φ3 – Φ150 mm |
| Length of Tested Sample | 100 – Φ1000 mm |
| Testing Procedures |
|
| Safety Features |
|
Additional Information
The Burst Test Stand is engineered for versatility, accommodating various testing mediums and conditions. It is crucial to observe safety protocols during operation to ensure the protection of both the equipment and the user. Regular maintenance is recommended to uphold the performance and accuracy of the machine.
