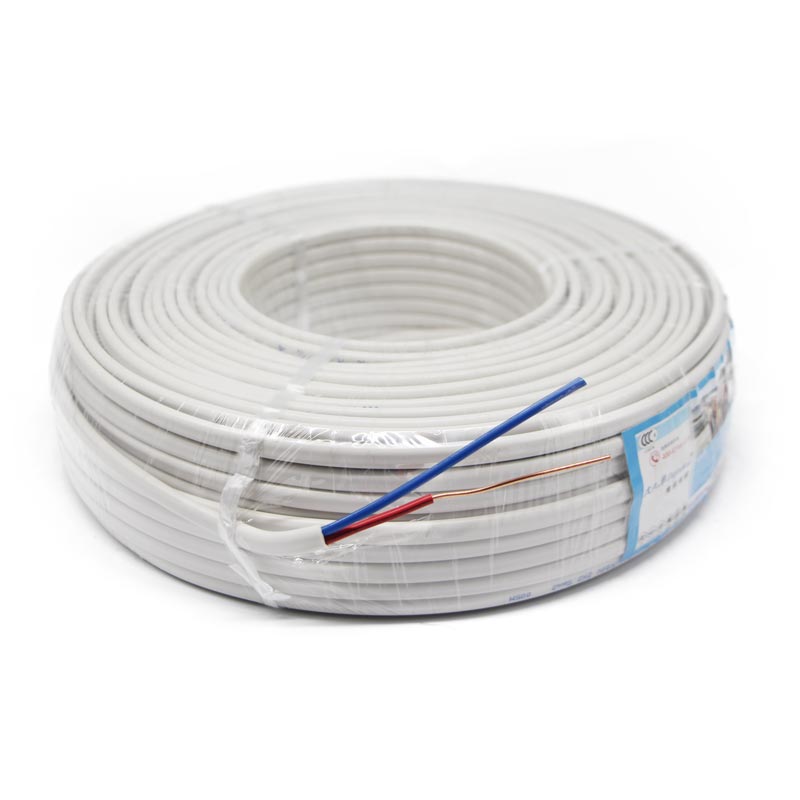

BVVB PVC jacket PVC insulated electric wire cable
Inquire NowDescription

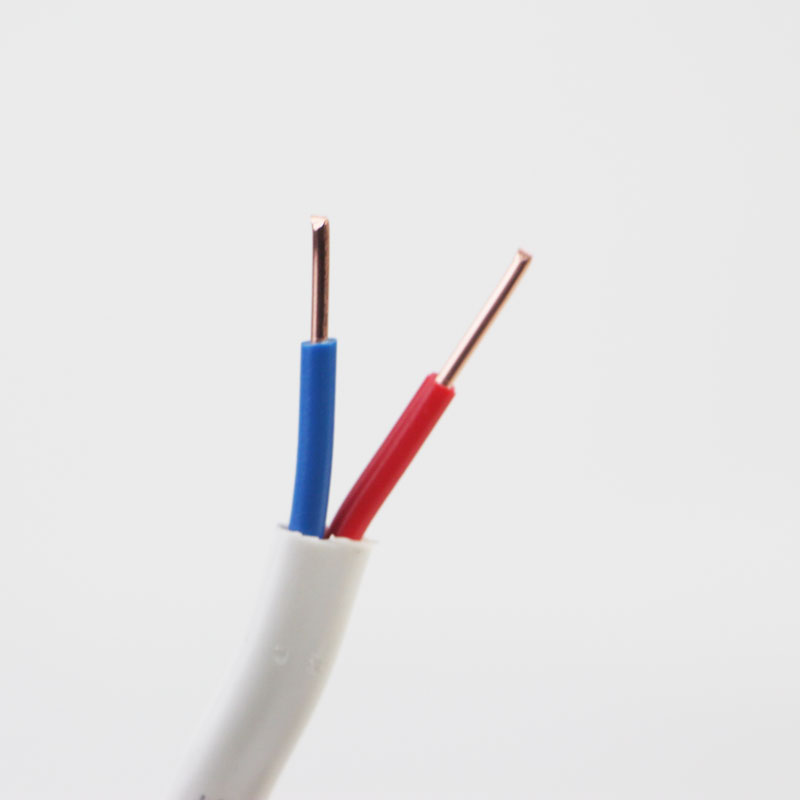

The BVVB PVC jacket PVC insulated electric wire cable is designed for the fixed wiring of power units with an AC rated voltage of 300/500V and below. This high-quality cable features a sturdy PVC insulation, ensuring durability and safety in various applications. Built with a high-purity oxygen-free solid core or stranded copper conductor, it also incorporates a tinned copper conductor for enhanced performance. The insulation and sheath are made from top-grade PVC, providing resistance to aging, wear, water, oil, and chemical corrosion, while remaining non-toxic. With options for customization in core count and cross-section, this cable is perfect for a range of electrical projects.
Specifications
| Item | Size (mm²) | Rated Voltage | Construction (mm) | Insulation Thickness (mm) | Jacket Thickness (mm) | Max. Outer Diameter (mm) | Standard |
|---|---|---|---|---|---|---|---|
| BVVB | 2*1.0 | 300/500V | 2/1.13 | 1.131 | 2.33 | 4.8*7.0 | JB/T8734.2-2016 |
| BVVB | 2*1.5 | 300/500V | 2/1.36 | 1.283 | 2.80 | 5.4*8.4 | JB/T8734.2-2016 |
| BVVB | 2*2.5 | 300/500V | 2/1.74 | 1.589 | 3.38 | 6.2*9.8 | JB/T8734.2-2016 |
| BVVB | 2*4.0 | 300/500V | 2/2.22 | 2.013 | 3.85 | 6.8*11.0 | JB/T8734.2-2016 |
Additional Information
This cable has a long-term allowable working temperature not exceeding 70°C and can be laid at temperatures as low as 0°C. The bending radius should be maintained at a minimum of 4D for cables with an outer diameter less than 25mm and 6D for those 25mm or more. Custom lengths are available upon request, allowing for flexibility in your electrical installations.
