C-BAND DUAL POLARITY SINGLE OUTPUT LNB
Inquire NowDescription

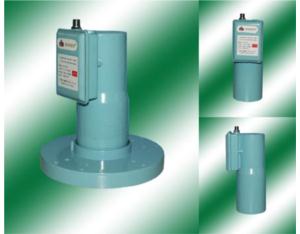

The C-Band Dual Polarity Single Output LNB is a high-performance satellite device designed for optimal signal reception across various frequencies. Engineered for reliability and precision, this model (DP04) ensures enhanced communication capabilities with its dual polarity feature, providing versatile use in diverse applications. With a robust construction, this LNB is perfect for both commercial and residential satellite systems, ensuring you receive quality signals with minimal interference.
Specifications
| SPECIFICATIONS | |
|---|---|
| MODEL | DP04 |
| INPUT FREQUENCY | 3.4-4.2 GHz |
| L.O. FREQUENCY | 5.15 GHz ± 1 MHz |
| STABILITY | ±2 MHz (-40 ℃ – +70 ℃) |
| L.O. PHASE NOISE | -55 dBc/Hz@1KHz -85 dBc/Hz@10KHz -105 dBc/Hz@100KHz |
| OUTPUT FREQUENCY | 950-1750 MHz |
| CONVERSION GAIN | 65 dB (TYP) |
| GAIN FLATNESS | ±0.5 dB/36 MHz |
| NOISE FIGURE | 17°K |
| INPUT V.S.W.R | 2.5:1 |
| OUTPUT V.S.W.R | 2.5:1 |
| LOCAL LEAKAGE AT INPUT | -45 dBm |
| IMAGE REJECTION | 50 dB |
| OUTPUT POWER | + 5 dBm (AT 1 dB COMPRESSION) |
| CROSS POLAR ISOLATION | 23 dB MIN |
| DC SUPPLY VOLTAGE | 11-14.5 V (V), 15.5-22 V (H) |
| SUPPLY CURRENT | 130 mA (MAX) |
| OPERATING TEMPERATURE | -40 ℃ ~ +70 ℃ |
| RELATIVE HUMIDITY | 0%~95% |
| RF INPUT CONNECTOR | WAVE GUIDE WC-229 |
| IF OUTPUT CONNECTOR | “F” TYPE FEMALE |
| OUTPUT IMPEDANCE | 75 OHMS |
| The color of LNB’s shape is up to you | |
Additional Information
This versatile LNB is suitable for a range of environments and can withstand various weather conditions. Ensure optimal placement to maximize signal quality for enhanced performance.
