c purlin roll forming machine
Inquire Now#### **Description**
The C Purlin Roll Forming Machine is an essential piece of equipment designed for the efficient production of C and Z purlins, widely utilized in various industrial applications, including factories, civilian buildings, warehouses, and steel construction. This machine features a comprehensive set of components including a manual uncoiler, a roll forming machine, a computer control system, a hydraulic control system, and a cutting mechanism. Its robust design ensures a durable performance, complemented by an aesthetically pleasing appearance.
With advanced technology, the C Purlin Roll Forming Machine allows for precise adjustments and configurations tailored to meet user specifications. It is capable of operating at varying speeds, making it suitable for a range of production needs. The machine’s versatility and efficiency make it a valuable asset for any manufacturing setup.
#### **Specifications**
| Parameter | Description |
|---|---|
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
#### **Additional Information**
– **Terms of Payment:** 30% of the total contract value paid by T/T as down payment, the rest 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.
– **Delivery Time:** 30 days after receipt of advance payment.
– **Service:** Technicians can be sent to your country for machine installation and operation training; costs for visa, round trip tickets, and accommodation are to be covered by the buyer, along with a daily salary of $80.
– **Warranty:** 12 months limited warranty; parts are free during the warranty period, but the buyer is responsible for shipping costs.

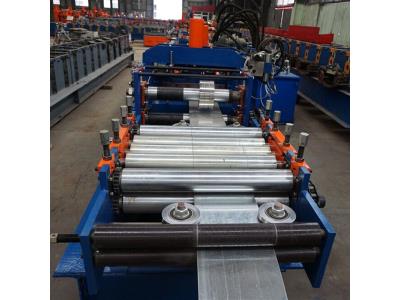

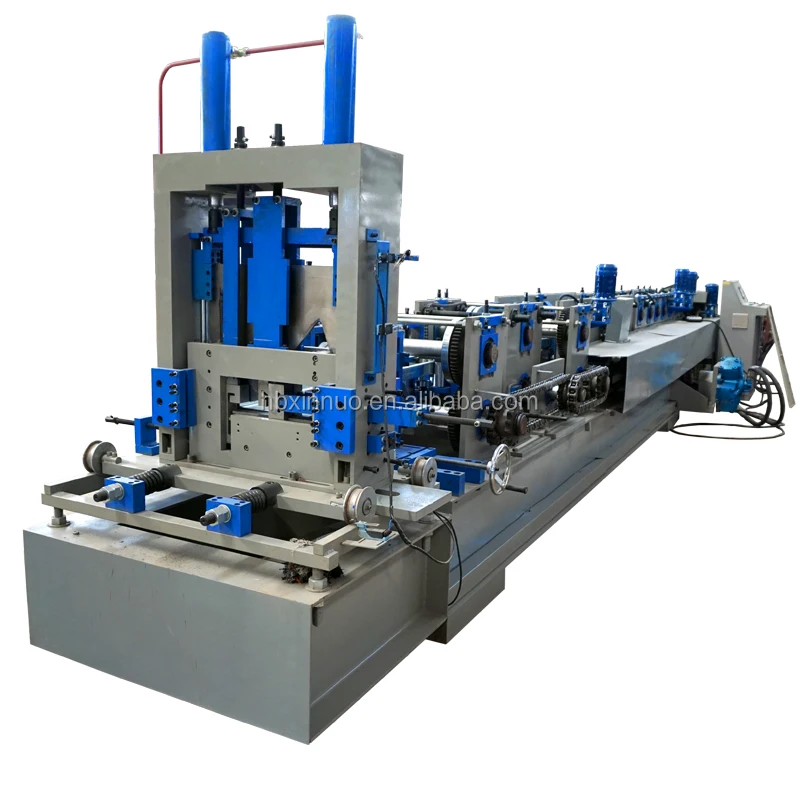

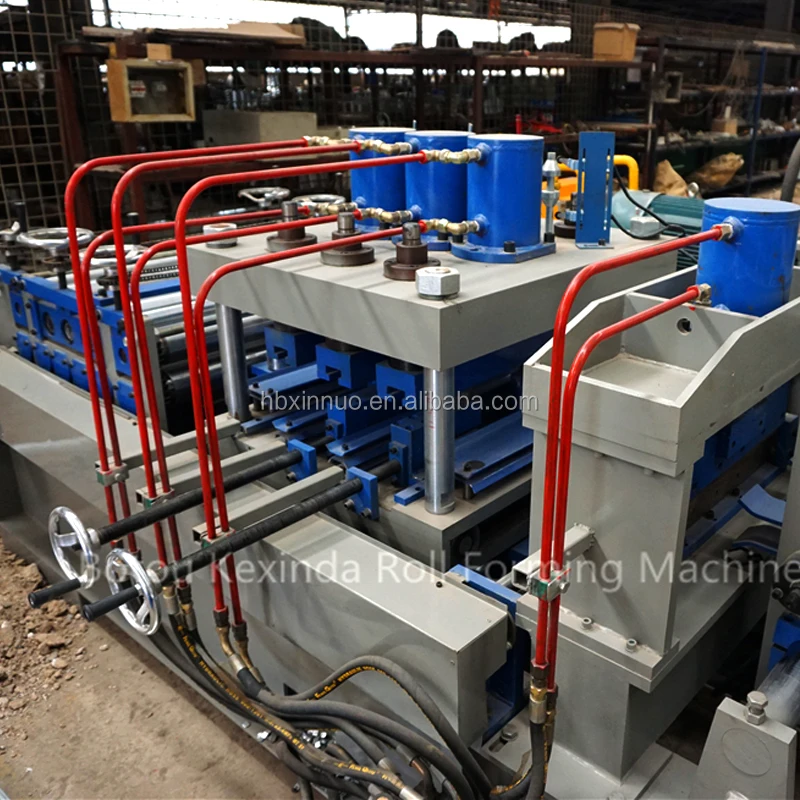

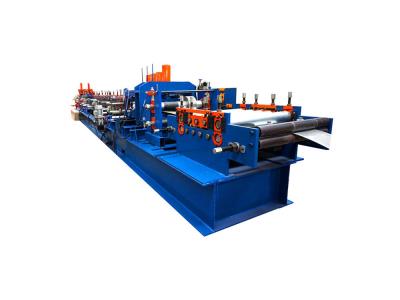

Product Pictures
