Description

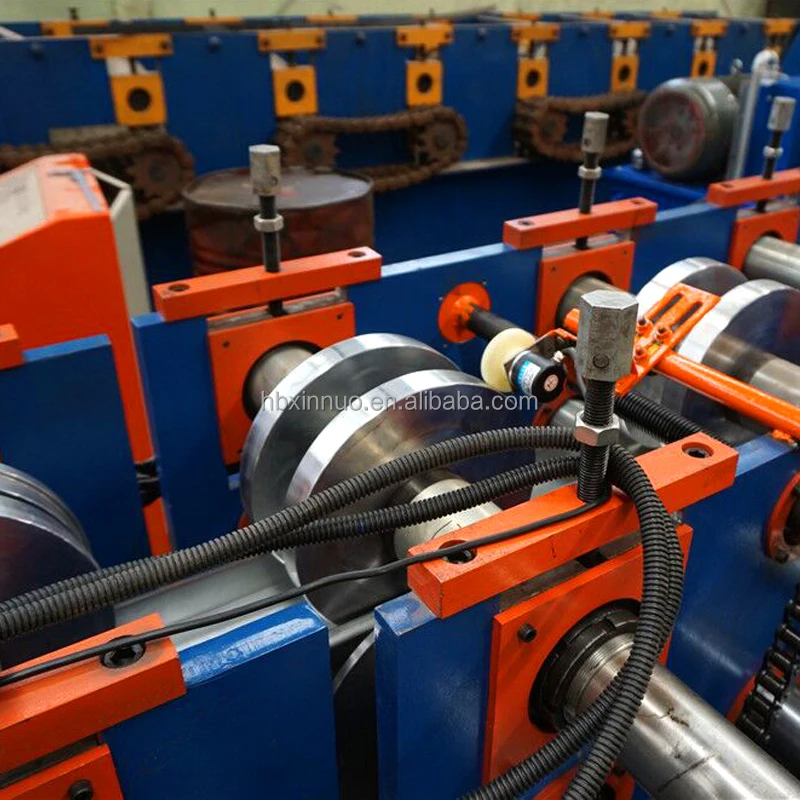

Introducing the Automatic C Z U Purlin Profile Cold Roll Forming Machine, designed for high efficiency and precision in manufacturing C and Z purlins. This state-of-the-art machine is engineered by Botou Manufacturing, ensuring robust construction and reliable performance. It features a fully automated system that enhances productivity while maintaining superior quality in purlin production. With a user-friendly interface and advanced PLC control, operators can easily manage the machine’s functions, making it an ideal choice for manufacturers seeking to optimize their operations.
Specifications
| # | Specification | Details |
|---|---|---|
| 1 | Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| 2 | Control System | PLC Inverter Encoder Touch Screen |
| 3 | Main Frame | 400mm H-Beam |
| 4 | Total Power | 22 kW |
| 5 | Power Supply | 380V, 3-Phase, 50Hz |
| 6 | Forming Speed | 12-24 m/min |
| 7 | Roll Station | 18 stands |
| 8 | Roller Diameter | 80mm |
| 9 | Effective Width | 80-300mm |
| 10 | Feeding Thickness | 1.5-3.0mm |
| 11 | Backboard Thickness | 20mm |
| 12 | Cutter Standard | GCr12 |
| 13 | Roller Standard | Gcr15# |
| 14 | Overall Size | About 8500×1000×1400mm |
| 15 | Total Weight | About 10T |
| 16 | Custom | According to customer’s requirements |
Additional Information
Packing & Delivery:
Packaging Details: Main machine is nude, the computer control box is packed with wooden frame.
Delivery Detail: 20 days.
