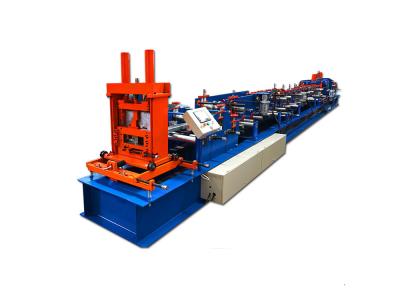

c purlin roll forming machine changeable c z purlin roll forming machine

Inquire Now

Description

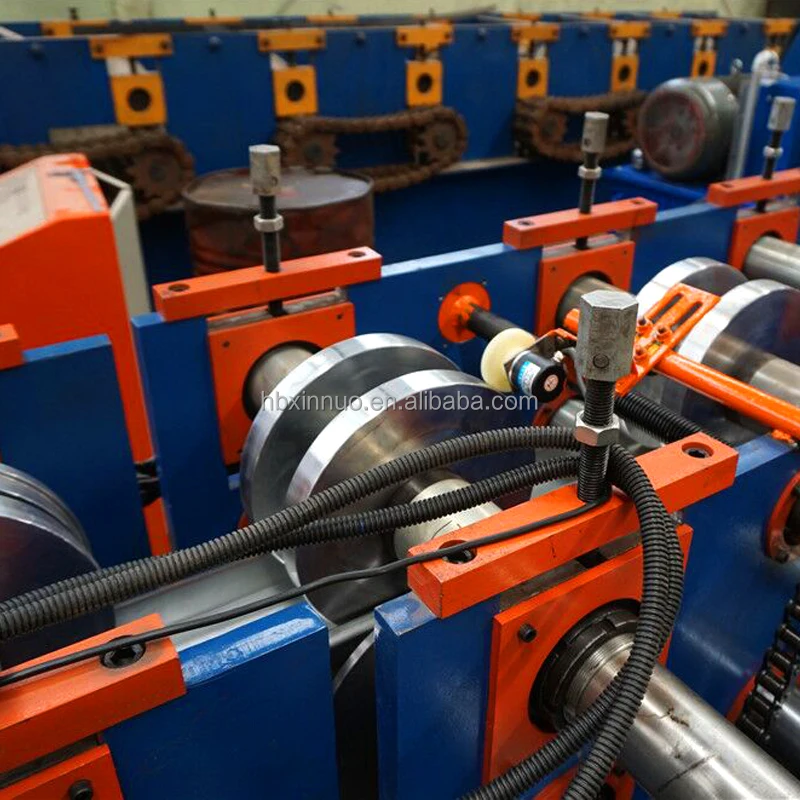

The Automatic China Botou Manufacturing Steel C Z U Purlin Profile Cold Roll Forming Machine is designed for efficient production of C and Z purlins. This advanced machine is equipped with a range of features that ensure precision and reliability in the manufacturing process. Its robust construction allows for high-speed performance, making it suitable for various industrial applications. The machine includes key components such as a manual uncoiler, guiding platform, and PLC control system, ensuring seamless operation and control. With its customizable features, it meets diverse production requirements.

Specifications

Parameter Details
Configuration Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kW
Power Supply 380V, 3-Phase, 50Hz
Forming Speed 12-24 m/min
Roll Station 18 stands
Roller Diameter 80mm
Effective Width 80-300mm
Feeding Thickness 1.5-3.0mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400mm
Total Weight About 10T
Custom According to customer’s requirements

Additional Information

Packing & Delivery:

Packaging Details: Main machine is nude, the computer control box is packed with wooden frame.
Delivery Detail: 20 days
