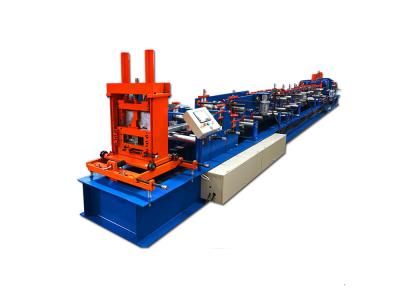

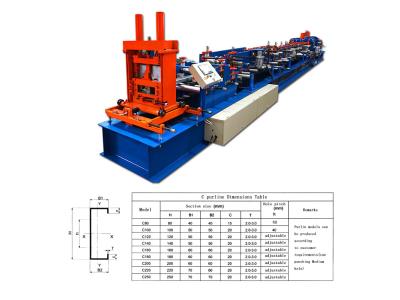

c purlin roll forming machine changeable c z purlin roll forming machine

Inquire Now

Description

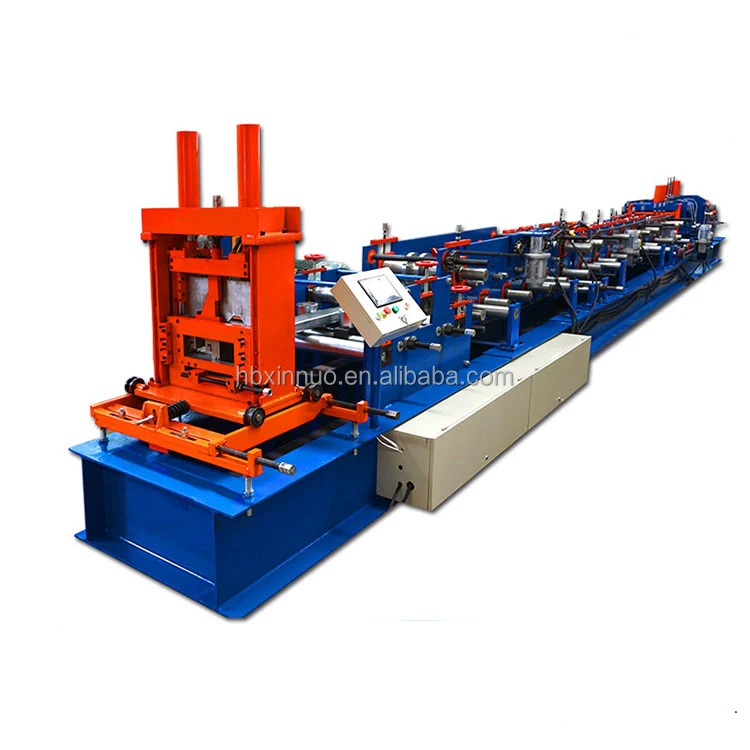

The Automatic China Botou Manufacturing Steel C Z U Purlin Profile Cold Roll Forming Machine is a highly efficient and versatile machine designed for the production of C and Z purlins. This machine is equipped with advanced technology to ensure precise shaping and cutting of steel profiles, making it an essential tool for modern construction and manufacturing industries. Its robust construction and user-friendly PLC control system allow for seamless operation and adaptability to various production requirements.

Specifications

Feature Description

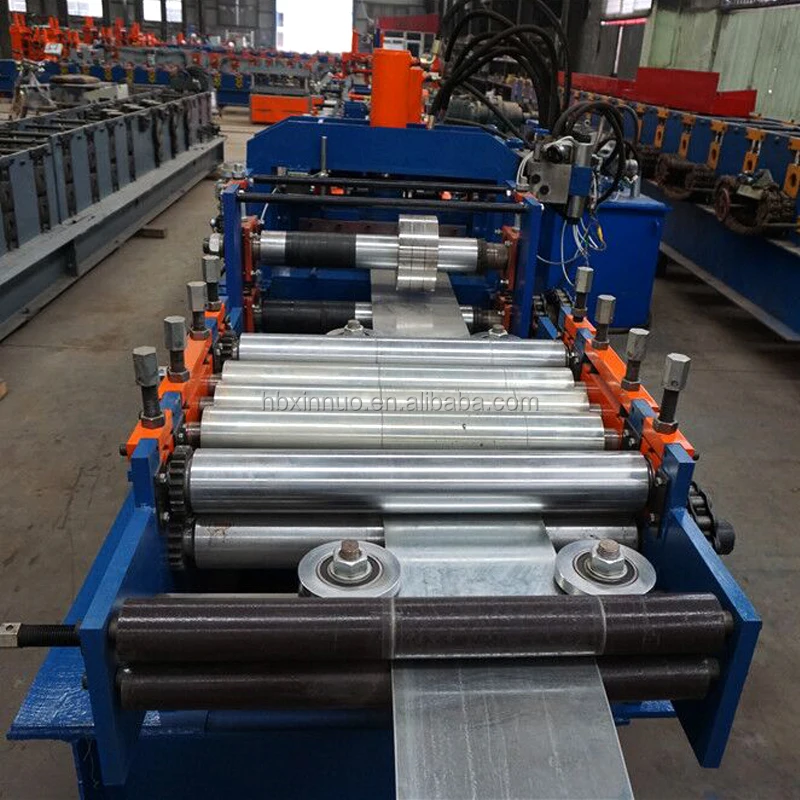

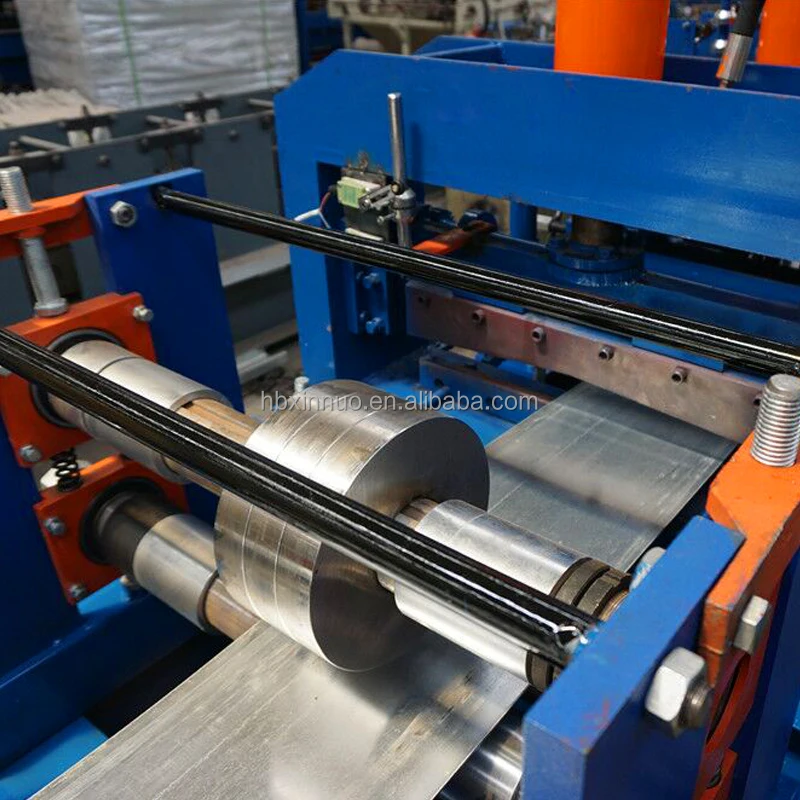

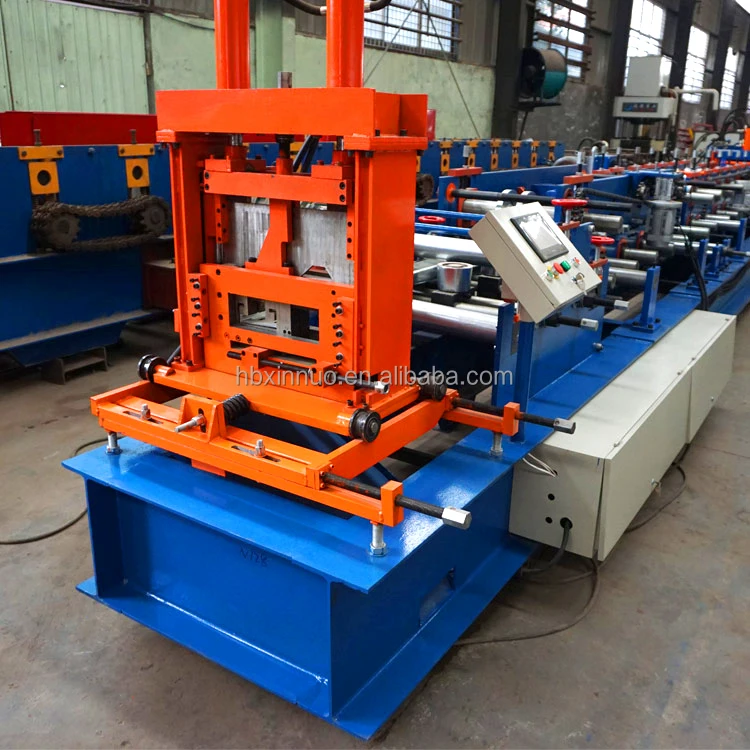

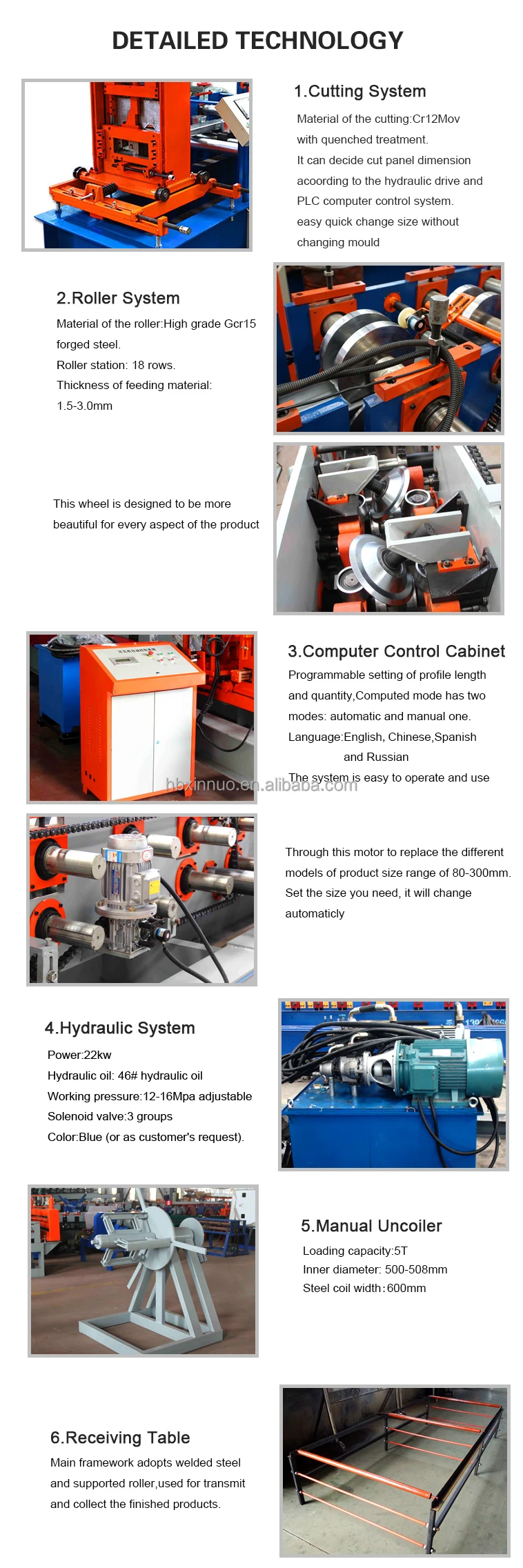

Configuration Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kW
Power Supply 380V, 3-Phase, 50Hz
Forming Speed 12-24 m/min

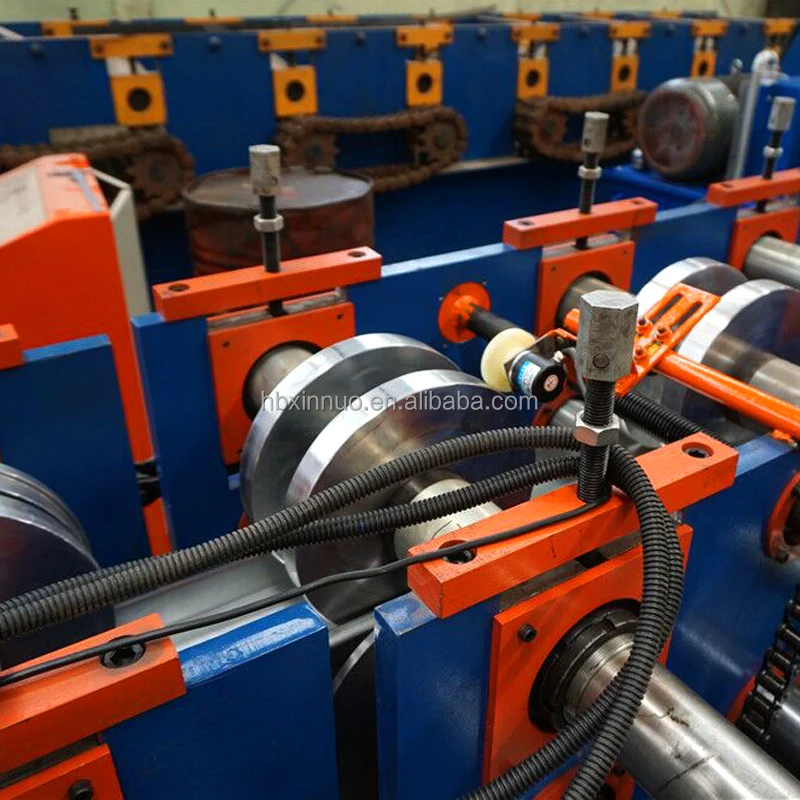

Roll Station 18 stands
Roller Diameter 80 mm
Effective Width 80-300 mm
Feeding Thickness 1.5-3.0 mm
Backboard Thickness 20 mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400 mm
Total Weight About 10T
Custom According to customer’s requirements

Additional Information

Packing Details: The main machine is nude in the container, while the computer control box is packed with wooden packaging.

Delivery Detail: Estimated delivery time is 20 days.

Images
