c purlin roll forming machine drywall manufacturing machine roll forming machine prices

Inquire Now

Description

The C Purlin Roll Forming Machine is an essential tool for drywall manufacturing, providing efficiency and precision in the production of C and Z purlins. This fully automatic machine is designed for rapid and high-quality output, making it suitable for various applications in industrial factories, civilian buildings, warehouses, and easy steel building manufacturing. With its robust construction and modern technology, it features a user-friendly computer control system, hydraulic control, and a reliable cutting mechanism.

Equipped with a range of components including a manual uncoiler, a guiding platform, and a PLC control system, this machine excels in both performance and durability. Its sleek design not only ensures operational efficiency but also enhances the aesthetic appeal of the finished products.

Specifications

Parameter Description
Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System PLC, Inverter, Encoder, Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kW
Power Supply 380V, 3-Phase, 50Hz
Forming Speed 12-24 m/min
Roll Station 18 stands
Roller Diameter 80 mm
Effective Width 80-300 mm
Feeding Thickness 1.5-3.0 mm
Backboard Thickness 20 mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400 mm
Total Weight About 10T

Additional Information

NOTE: All technical parameters can be changed according to user needs and are provided for reference only.

Terms of Payment: 30% of the total contract value to be paid by T/T as down payment. The remaining 70% of the total contract value to be paid by T/T after inspection by the buyer at the seller’s factory before delivery.

Delivery: 30 days after receipt of advance payment.

Service: A technician will be sent to your country to fix the machine. The buyer bears all costs, including visa, round trip tickets, suitable accommodation, and a salary of $80 per day.

Warranty: 12 months limited warranty. During warranty, parts are free, but the buyer must pay for shipping fees.

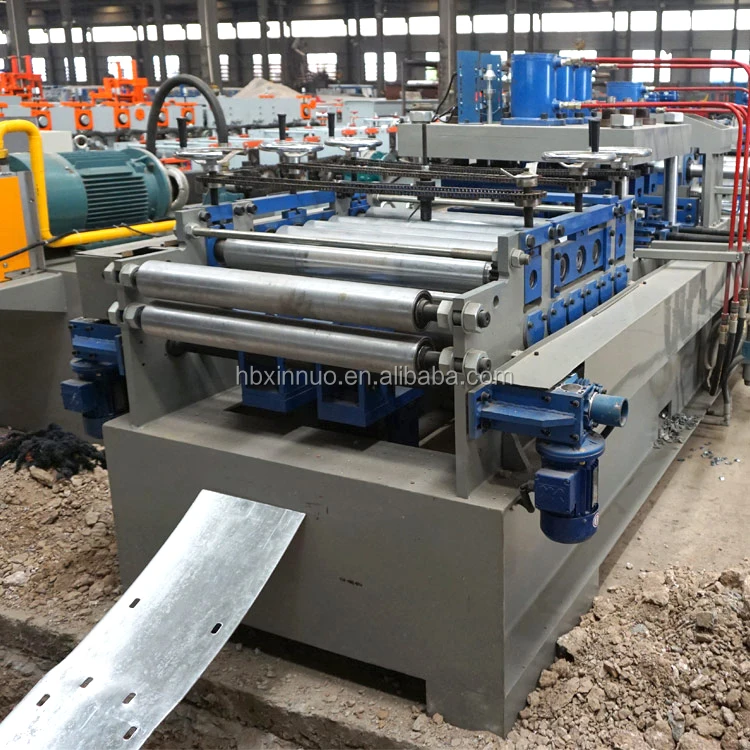

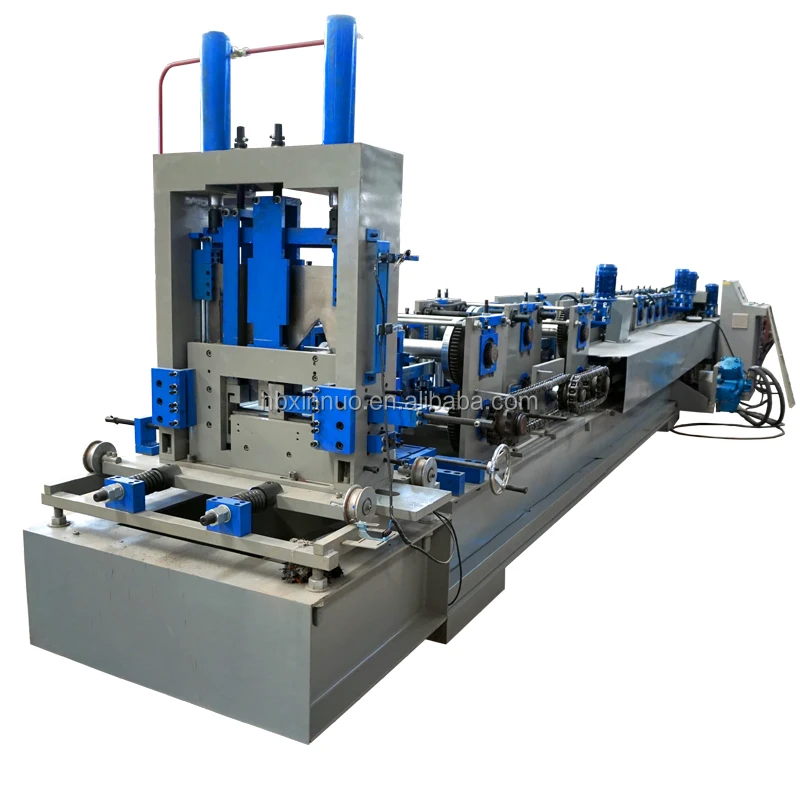

Product Pictures
