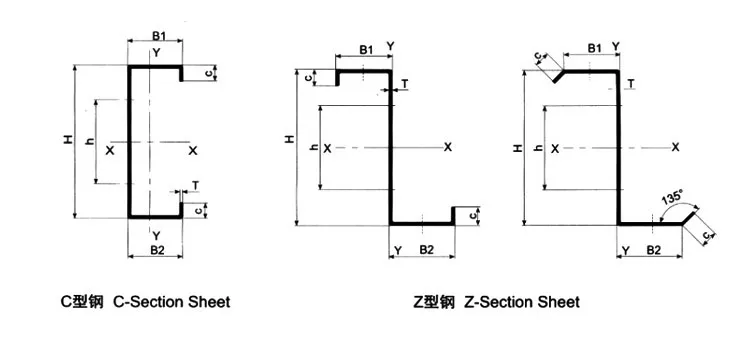

The C Purlin Roll Forming Machine is an essential piece of equipment for the drywall manufacturing industry. Designed for high efficiency and reliability, this machine produces C and Z purlins swiftly, making it ideal for various applications in industrial factories, civilian buildings, and warehouses. With a robust construction and advanced technology, it guarantees an attractive appearance and long-lasting durability.
This fully automatic machine features a user-friendly computer control system, hydraulic control for precise cutting, and an effective uncoiling mechanism. The equipment is capable of producing purlins with a width ranging from 80mm to 300mm and a feeding thickness of 1.5mm to 3.0mm.
Specifications
| Parameter | Details |
|---|---|

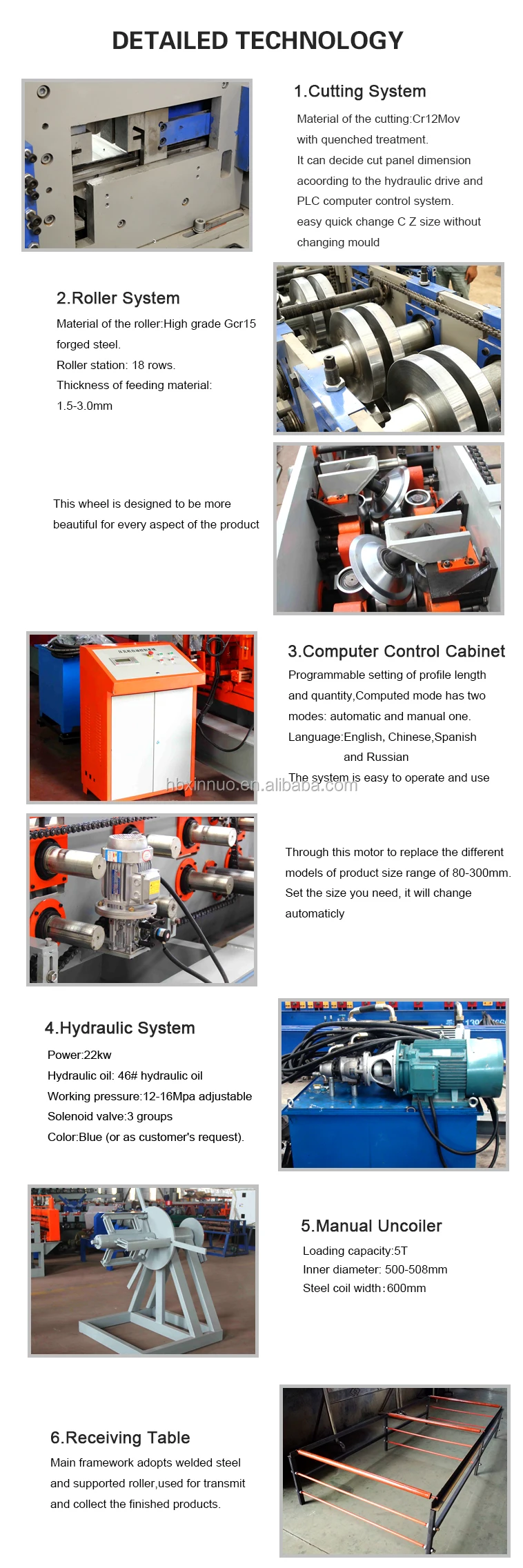

| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table |
| Control System | PLC, Inverter, Encoder, Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1.5-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
NOTE: All technical parameters can be changed according to user’s needs and are only for reference.
Additional Information
Terms of Payment: 30% of the total contract value paid by T/T as down payment; the remaining 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.

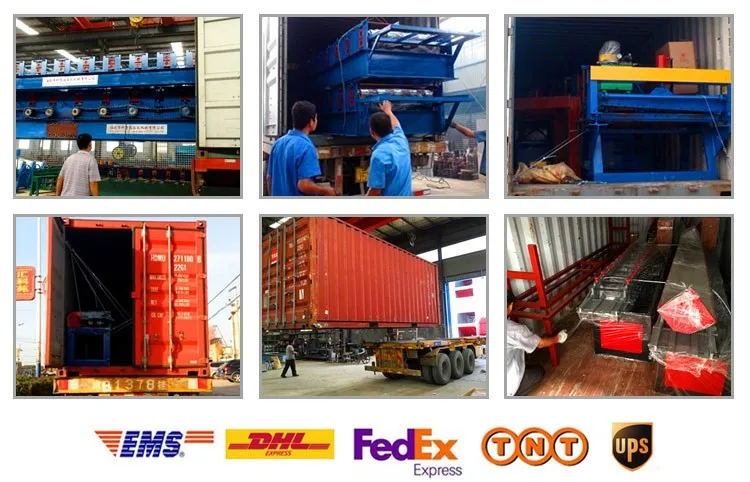

Delivery: 30 days after receipt of advance payment.
Service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, round trip tickets, and suitable accommodation. The buyer should also pay a salary of 80 USD/day.
Warranty: 12 months limited warranty. During the warranty period, parts are free, but the buyer pays for the shipping fee.
