c purlin roll forming machine of china c z section purlin cold roller machine
Inquire NowDescription

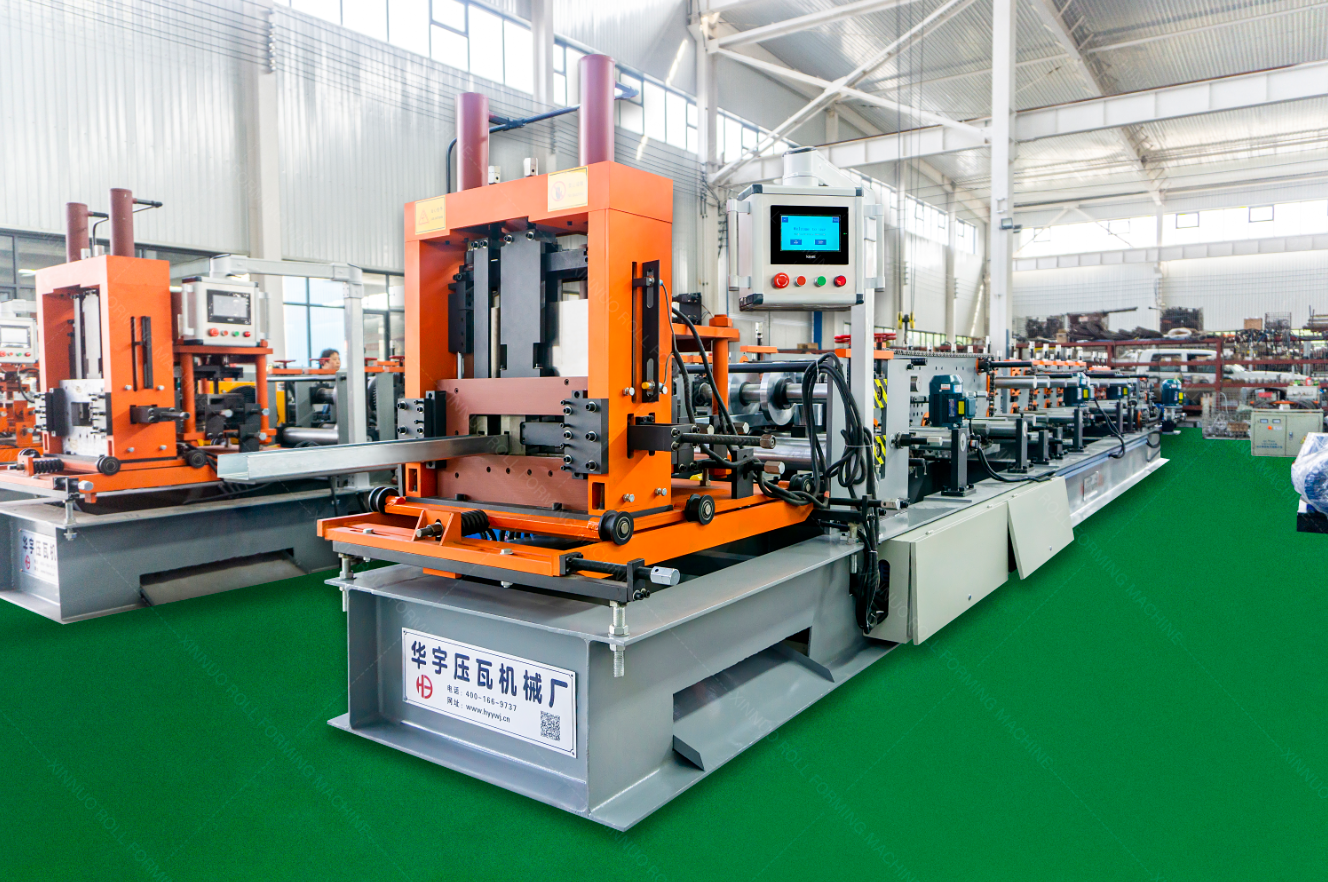

The C Z Purlin Roll Forming Machine is a state-of-the-art equipment designed for the efficient production of C and Z section purlins. This cold roller machine is engineered to meet rigorous industry standards, providing precision and reliability in every operation. It features a complete configuration including a manual uncoiler, guiding platform, 9-shaft strip leveler, and a main roll forming machine equipped with hydraulic motor and pre-punching, ensuring a seamless production process. The advanced PLC control system with a touch screen interface enhances usability, offering operators a user-friendly experience.
Built with a robust main frame made of 400mm H-beam, this machine boasts a total power of 22 kW and operates at forming speeds ranging from 12 to 24 meters per minute. Designed for versatility, it can accommodate various feeding thicknesses and effective widths, making it ideal for customized production needs.
Specifications
| Attribute | Details |
|---|---|
| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information

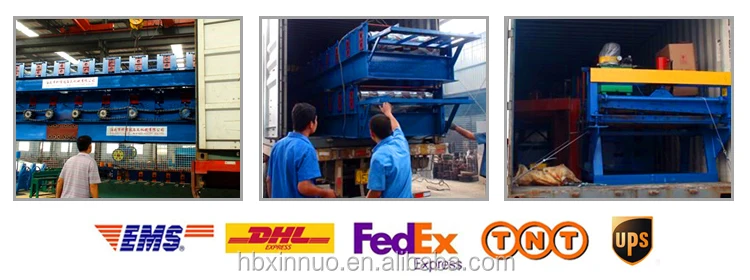

Packaging Details: The main machine is shipped nude, while the computer control box is securely packed in a wooden frame to ensure protection during transit.
Delivery Detail: Estimated delivery time is 20 days.
