c purlin roll forming machine of china c z section purlin cold roller machine
Inquire NowDescription
The C Z Purlin Roll Forming Machine is a high-performance equipment designed for producing C and Z section purlins efficiently. Engineered for durability and precision, this cold roller machine is ideal for the construction industry, enabling the creation of strong and reliable structural components. This machine features advanced technology, including a PLC control system for ease of operation, ensuring that you can achieve high-quality purlins with minimal effort.
Specifications
| Attribute | Details |
|---|---|

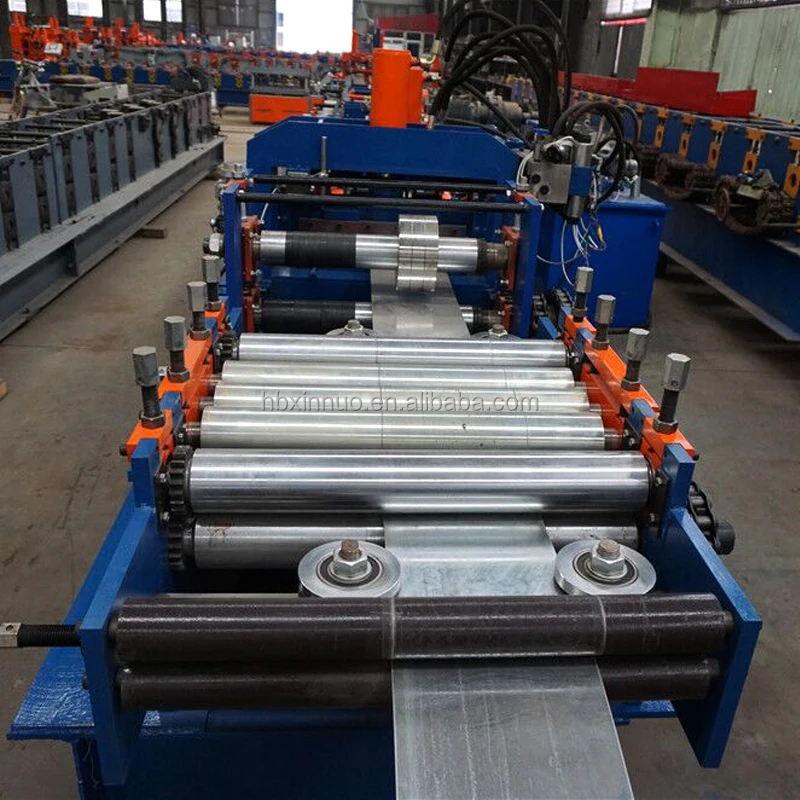

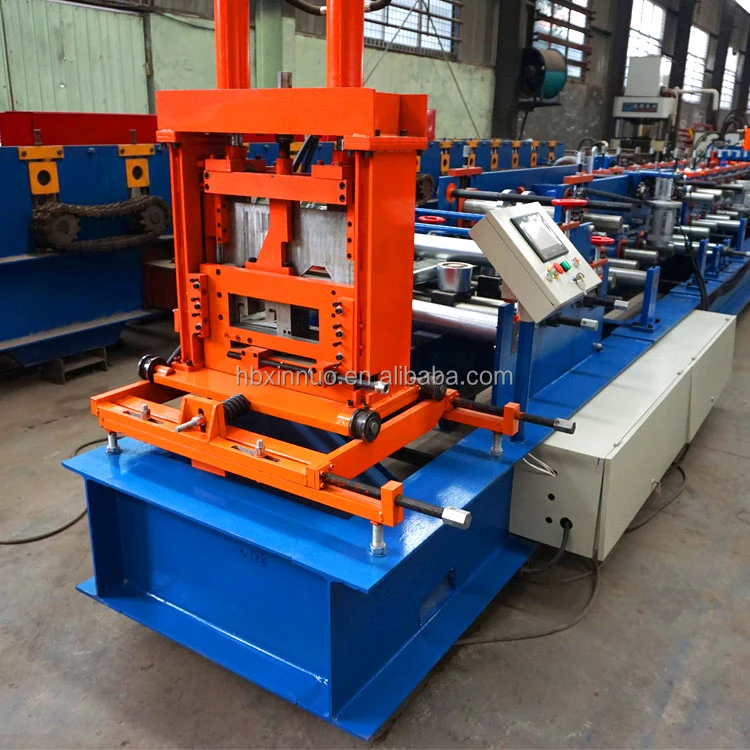

| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |

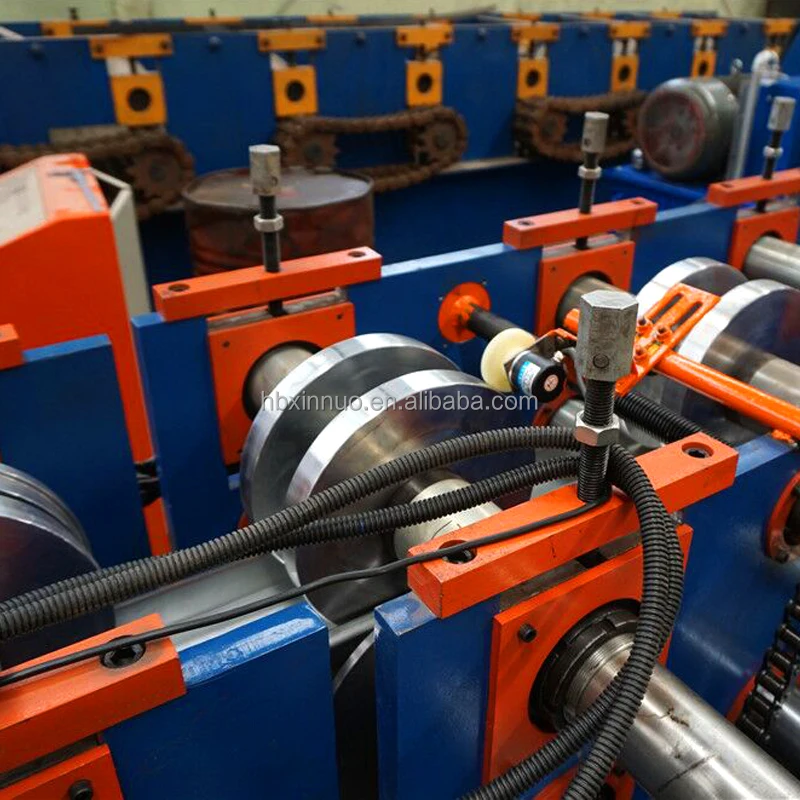

| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packing & Delivery:
| Packaging Details: | Main machine is nude, the computer control box is packed with wooden frame. |
| Delivery Detail: | 20 days |
