Description

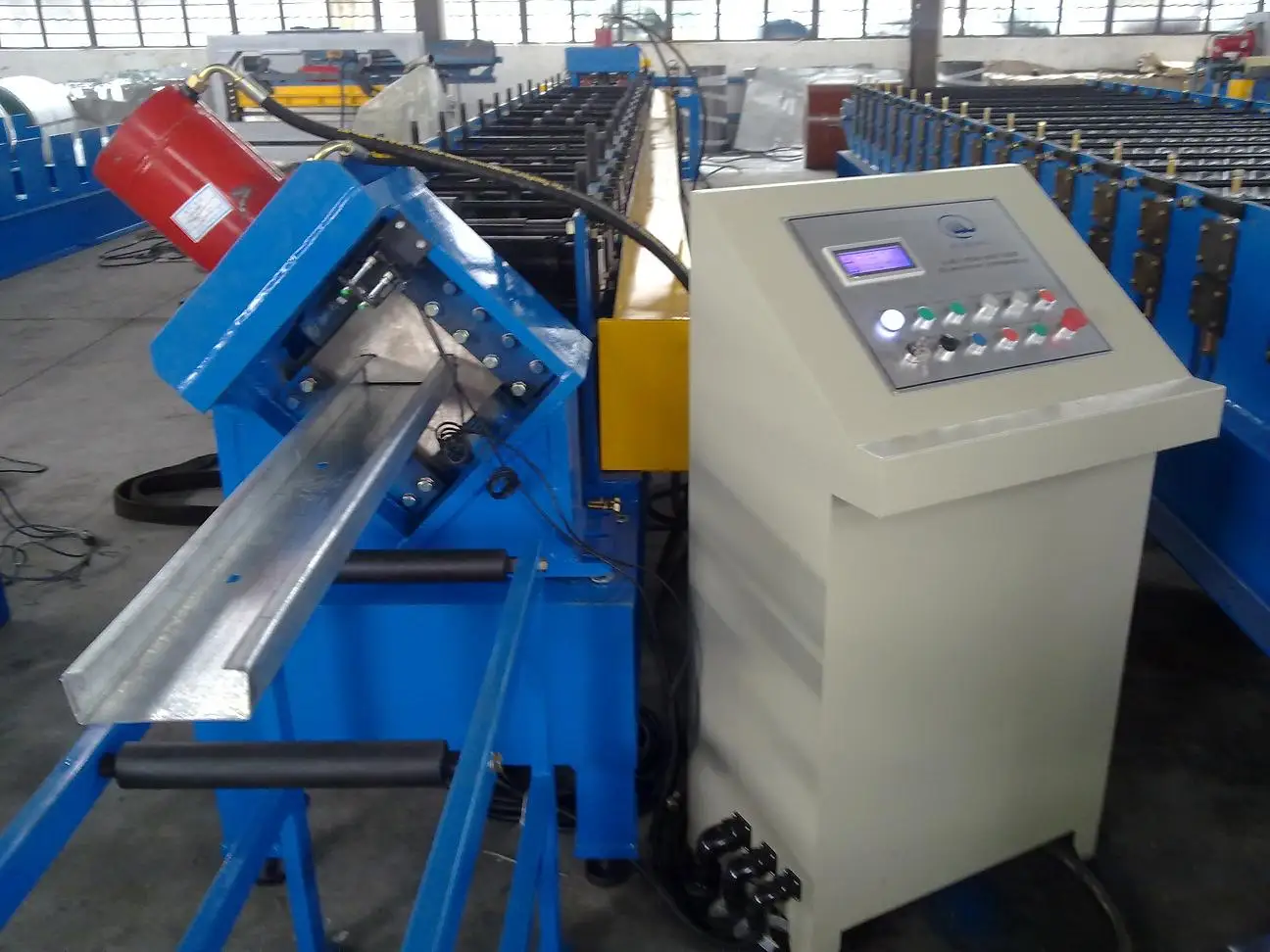

The Steel Purlin Cold Roll Forming Machine is engineered for precision and efficiency in producing high-quality C, Z, and U-shaped steel purlins. With its robust construction and advanced technology, this machine delivers exceptional performance while ensuring cost-effectiveness. Ideal for manufacturers aiming to streamline their operations, it provides the perfect solution for forming steel structures with varying thicknesses, from 1.5mm to 3.0mm. The machine operates with precision, featuring a maximum forming speed of 10-15 meters per minute, making it a reliable choice for high-volume production.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Steel Purlin Roll Forming Machine |
| Profile | C shape, Z shape, U shape |
| Material Type | Galvanized steel coil |
| Thickness (mm) | 1.5-3.0mm |
| Tield stress (Mpa) | Q235-345 |
| Max. forming speed (m/min) | 10-15m/min |
| Roller material | Bearing steel GCr15 |
| Roller driven type | Chain transmission |
| Controller | PLC |
| Operation | Touch screen and button |
| Hydraulic system pressure (Mpa) | 20 |
| Main motor power (KW) | 18.5-22 |
| Hydraulic station motor power | 5.5 |
| Dimension (L*W*H) | about 10000*1000*1500mm |
| Weight (KG) | about 10000 |
Additional Information
Our Service:
- Provide Pre-sales Consultant & On-purchase service & After-sales service 24/7
- Technical suggestions and guidance
- Testing of the machine before shipment
- One-year warranty period for the machine
- Spare parts available at cost price after warranty
- Long-term technical assistance
FAQ:
- Q1: Are you a manufacturer or trading company? A1: We are a manufacturer.
- Q2: Do you have overseas engineers? A2: Yes, we provide overseas engineers and technical training.
- Q3: Do you provide customized solutions? A3: Yes, we can design equipment according to your requests.
- Q4: How do you ensure quality control? A4: We comply with ISO 9001; each machine undergoes testing before shipment.
- Q5: Can I visit your factory to check machines on-site? A5: Yes, you are welcome to visit our factory.
