C shape Roof Purlin Roll Forming Machine Steel
Inquire NowDescription
The C shape Roof Purlin Roll Forming Machine is designed for efficiency and ease of use, featuring a remote control for seamless operation. Ideal for producing C, Z, and U shaped profiles from galvanized steel coil, this machine ensures high-quality output with a maximum forming speed of 10-15 meters per minute. Built with a robust structure, it utilizes advanced PLC control for precision and reliability, making it suitable for various industrial applications. With a lifetime video online service available, users can benefit from ongoing support and guidance.
Specifications
| Product Name | Steel purlin roll forming machine |
|---|---|
| Profile | C shape, Z shape, U shape |
| Material Type | Galvanized steel coil |
| Thickness (mm) | 1.5-3.0mm |
| Tield Stress (MPa) | Q235-345 |
| Max Forming Speed (m/min) | 10-15 m/min |
| Roller Material | Bearing steel GCr15 |
| Roller Driven Type | Chain transmission |
| Controller | PLC |
| Operation | Touch screen and button |
| Hydraulic System Pressure (MPa) | 20 |
| Main Motor Power (KW) | 18.5-22 |
| Hydraulic Station Motor Power (KW) | 5.5 |
| Dimension (L*W*H) | about 10000*1000*1500 mm |
| Weight (KG) | about 10000 |
Additional Information
Our Service:
- Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7days per week
- Give technical suggestions
- Test the machine before shipment
- Provide technical guidance related to using the machine
- Supply one-year warranty period for the machine
- Provide spare parts at cost price after warranty period
- Collect feedback for machine performance
- Provide long-term technical assistance

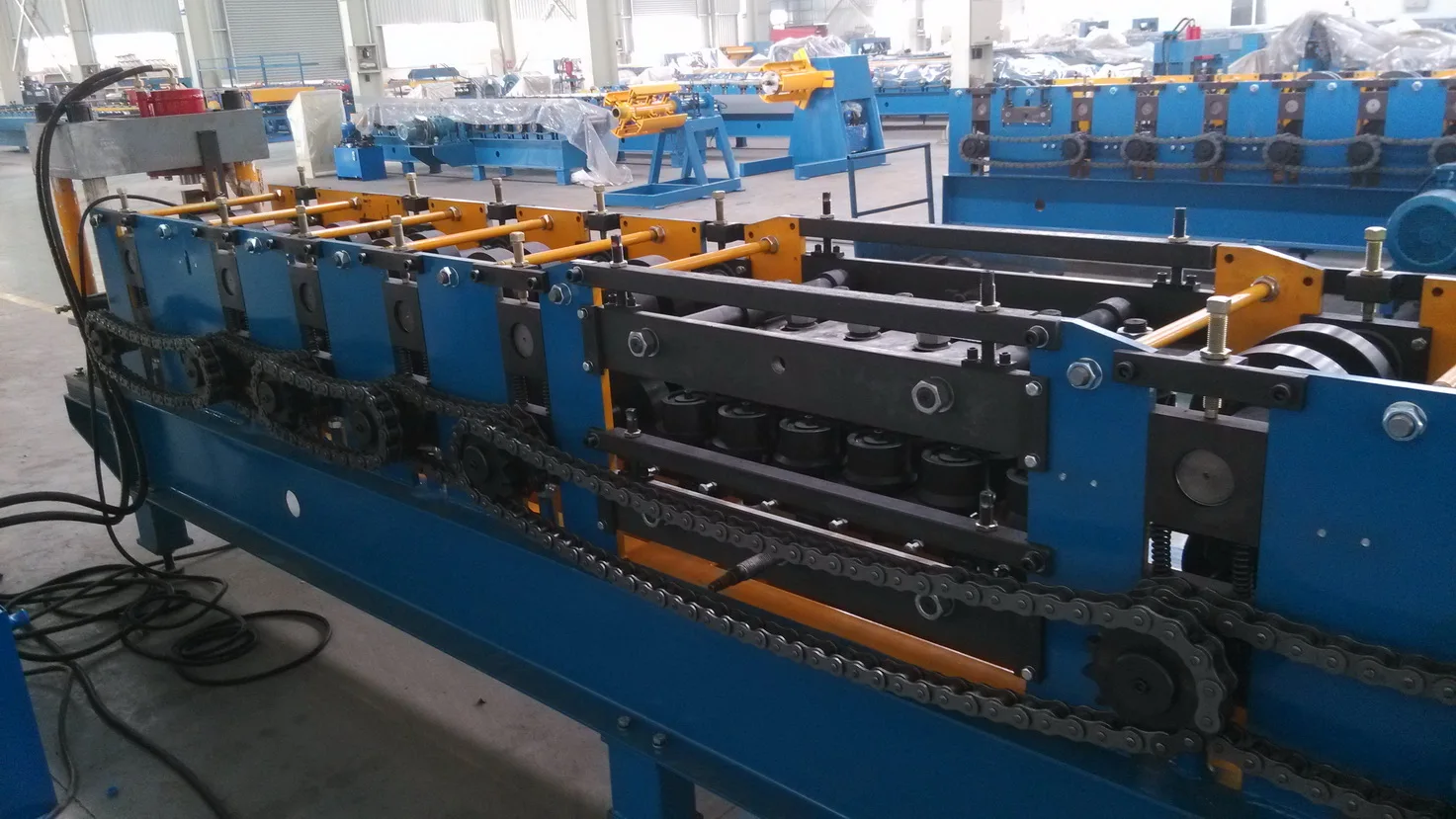

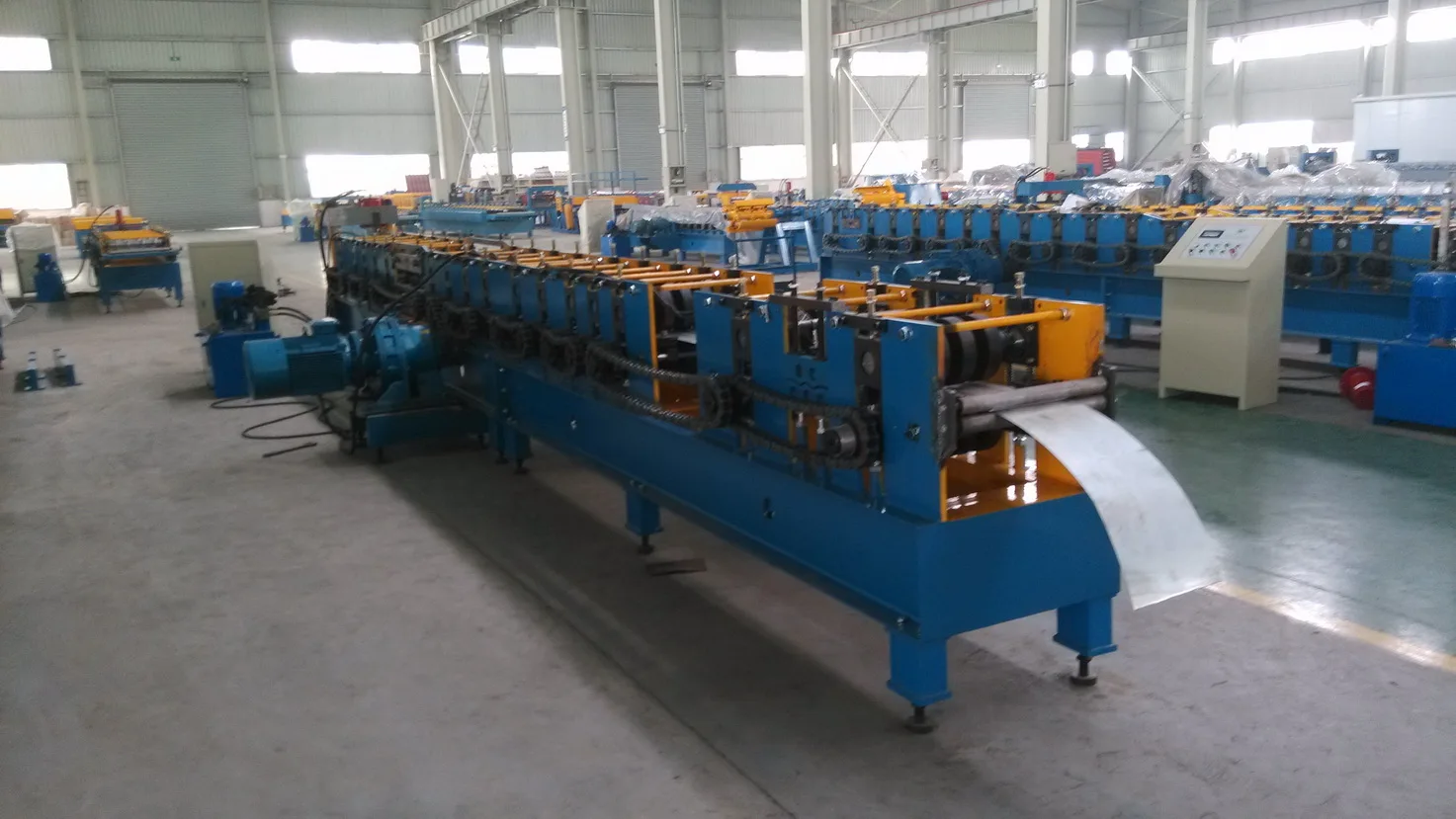

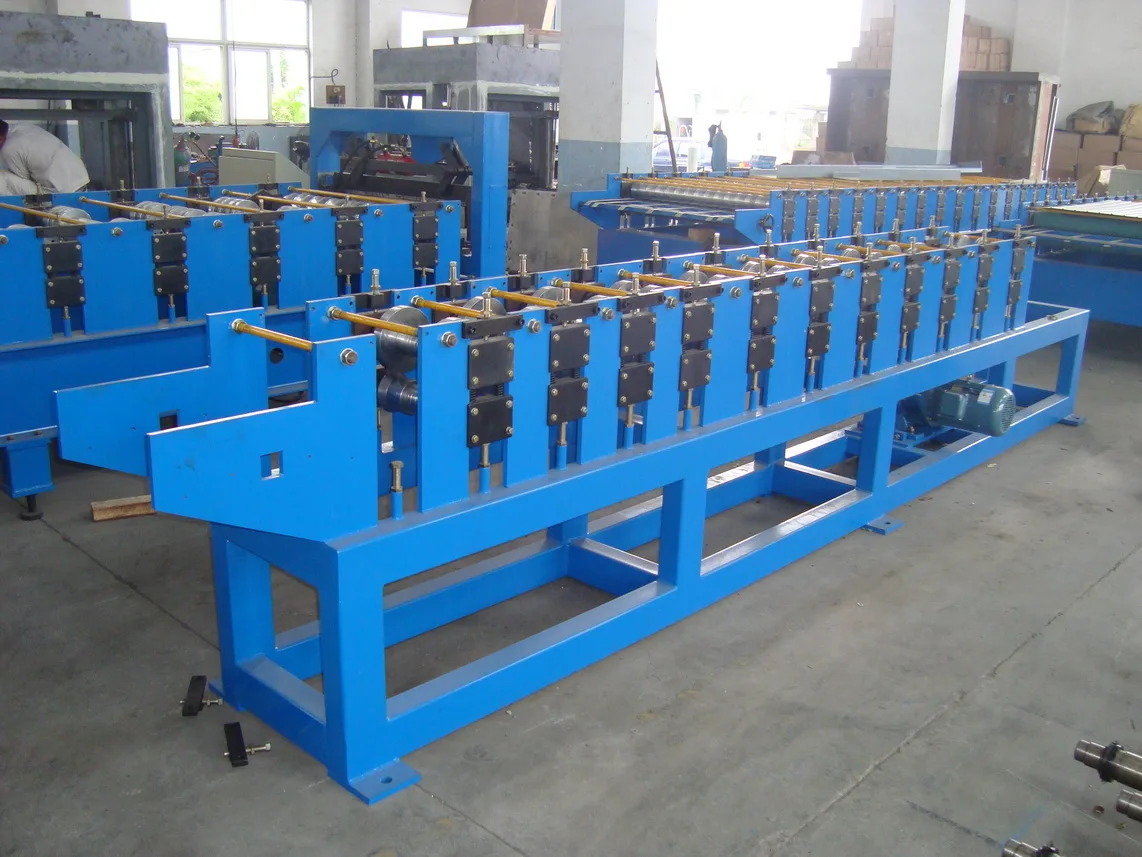

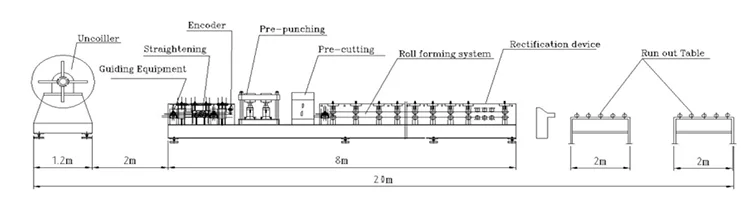

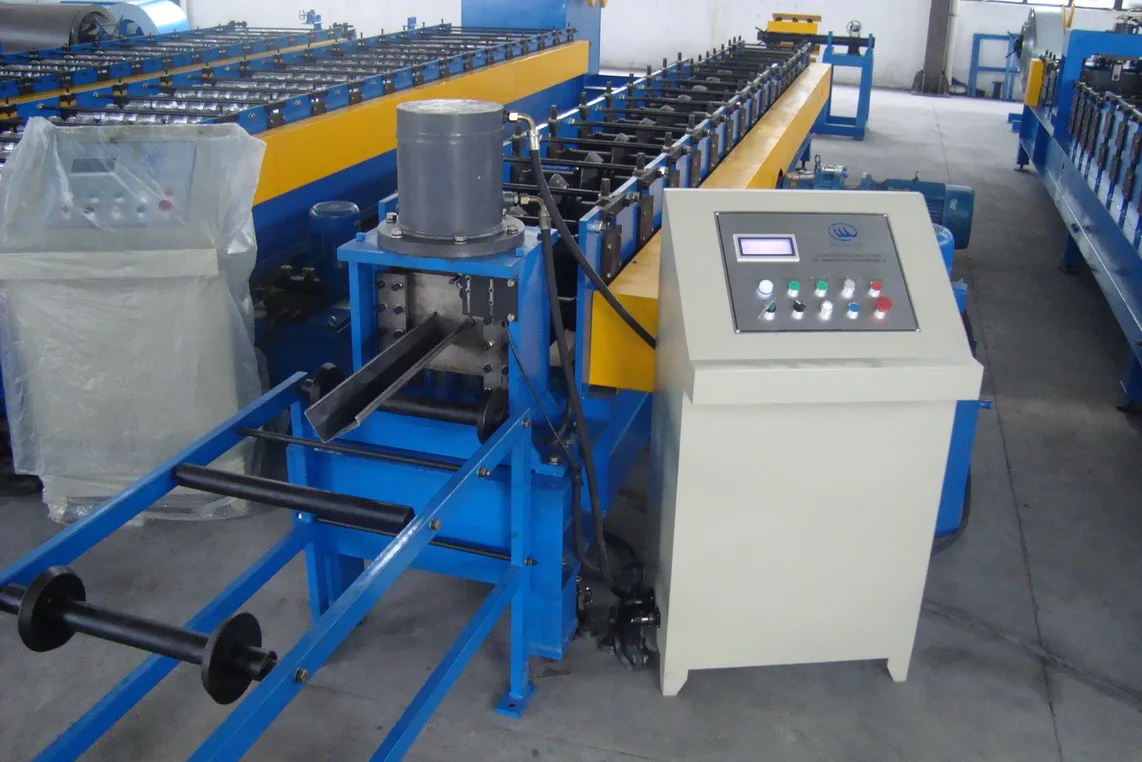

Product Images
