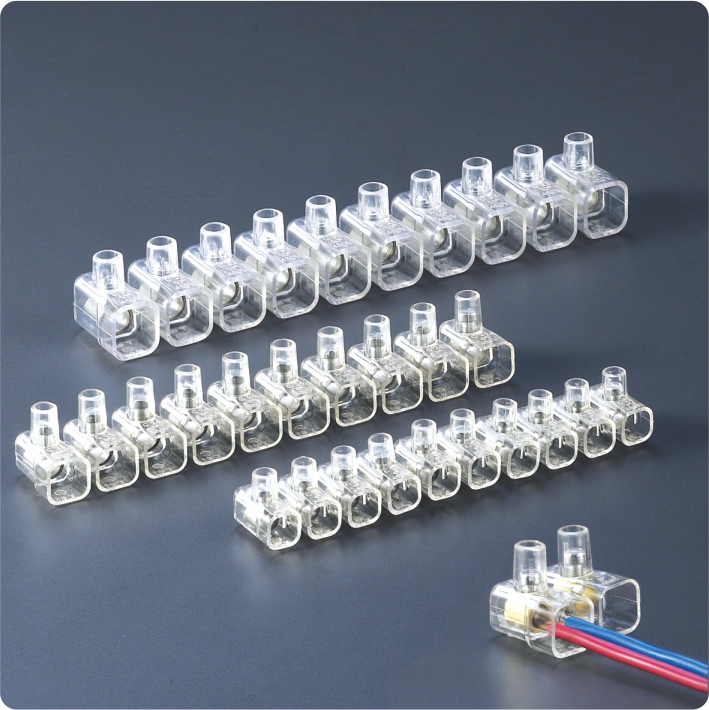

C TYPE TERMINAL BLOCK

Inquire Now

Description

The C Type Terminal Block is designed for efficient electrical connections, enabling continuity or branching-off connections between electric conductors. Available in single-pole configurations with options for 1, 2, 5, or 10 poles, this terminal block ensures versatile application in various electrical setups. Crafted with high-quality materials, it guarantees durability and reliability for long-term use in both residential and industrial settings.

Specifications

Item No. Section size (mm²) L (mm) B (mm) H1 (mm) H2 (mm) E1 (mm) φ (mm)
C22 2.5 120 18 19 11 12 4.16
C23 4 121 20 18 10 12 4.76
C24 6 145 22 23 12 14.5 5.83
C25 10 169 25 26 17 17.5 7.58
C26 16 212 32 33 20 21 10.18

Additional Information

Technical Data:

  • Maximum operating temperature: +85℃
  • Heat resistance: +130℃
  • Building according to standards: EN60998-1, EN60998-2-1

Materials:

  • Insert: Brass
  • Screws: Zinc Plated Steel
  • Insulating body: Polycarbonate
