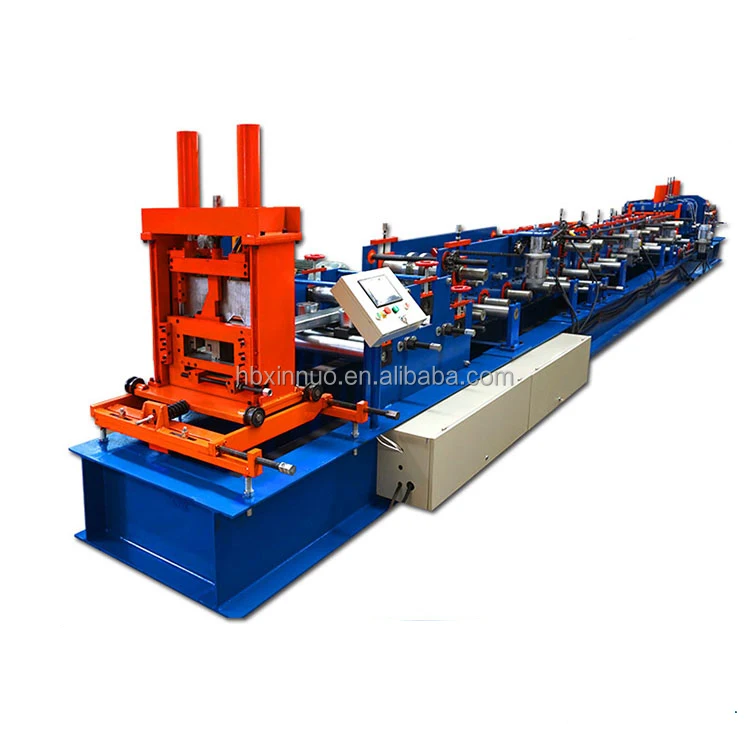

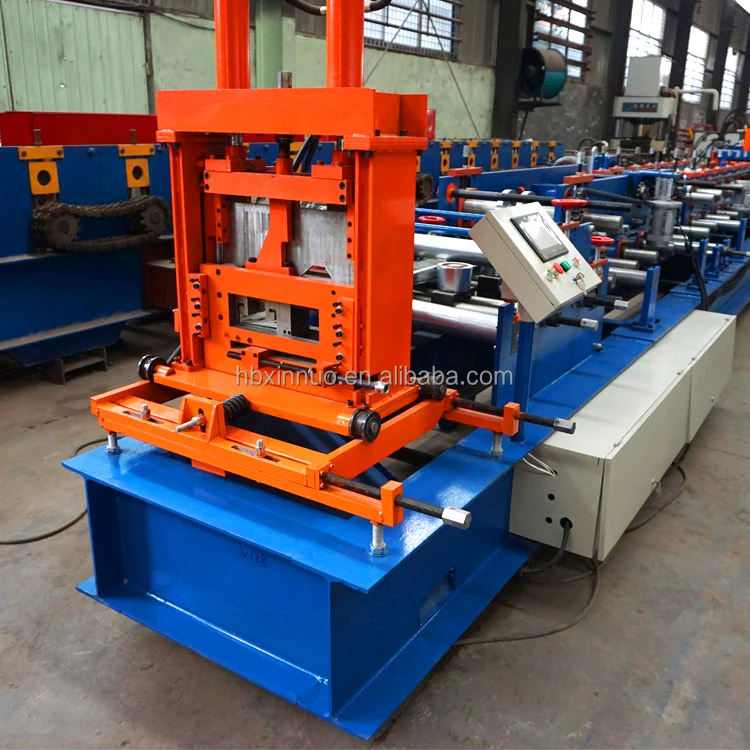

c z purlin roll forming machine of china c z section purlin cold roller machine
Inquire NowDescription
Introducing the C Z Purlin Roll Forming Machine, a highly efficient solution designed for producing C and Z section purlins. This cold roller machine is engineered for precision and durability, making it ideal for construction and manufacturing industries. The machine features a robust construction with advanced technology that ensures high performance and reliability. Equipped with a variety of components including a manual uncoiler, guiding platform, and PLC control system, it streamlines the roll forming process, enhancing productivity while maintaining high-quality output.
Specifications
| Attribute | Details |
|---|---|
| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packaging Details: The main machine is shipped nude, while the computer control box is securely packed in a wooden frame. Delivery is scheduled within 20 days from the order confirmation.
