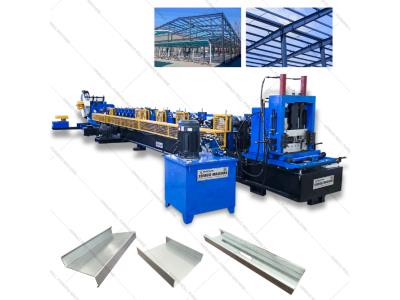

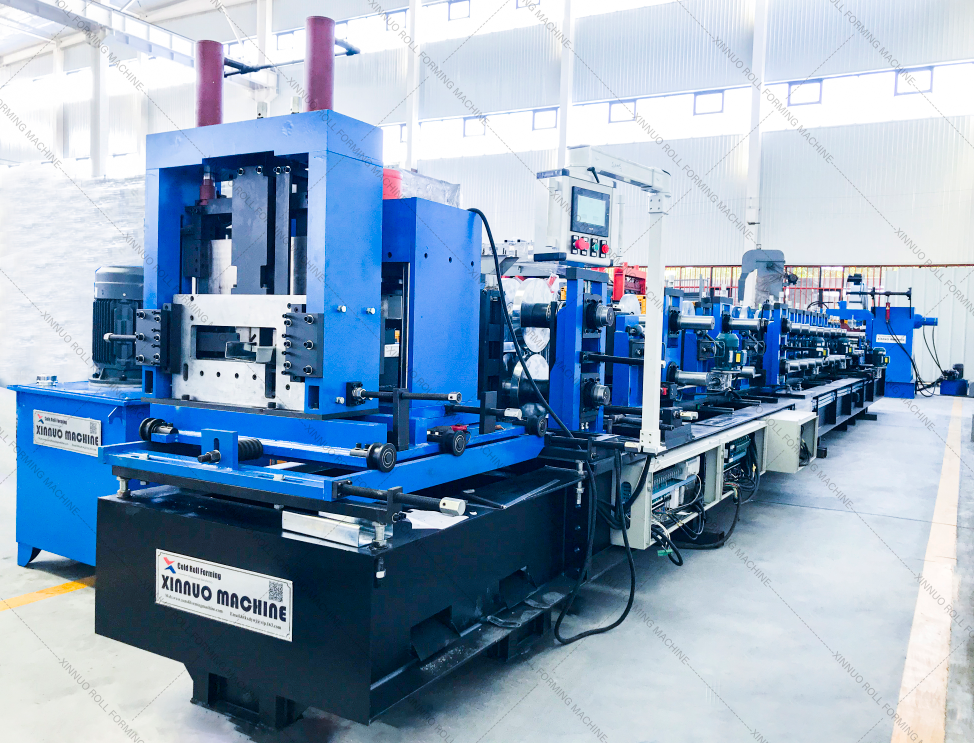

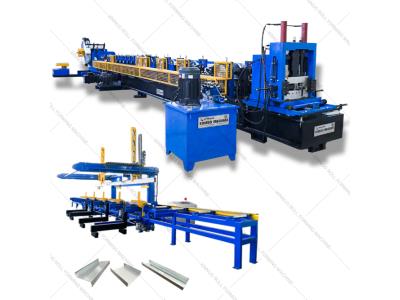

c z purlin roll forming machine of china c z section purlin cold roller machine

Inquire Now

Description

The C Z Purlin Roll Forming Machine is a state-of-the-art equipment designed for manufacturing C and Z section purlins efficiently. This cold roller machine is engineered to meet high production standards, featuring a robust configuration that includes a manual uncoiler, guiding platform, and a main roll forming machine. It is equipped with advanced control systems, ensuring precision and ease of operation. Ideal for construction and metalworking industries, this machine provides reliable performance and durability.

Specifications

Attribute Details
Configuration Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kw
Power Supply 380V, 3-Phase, 50Hz
Forming Speed 12-24m/min
Roll Station 18 stands
Roller Diameter 80mm
Effective Width 80-300mm
Feeding Thickness 1.5-3.0mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400mm
Total Weight About 10T
Custom According to customer’s requirements

Additional Information

Packing & Delivery:

Packaging Details: Main machine is nude, and the computer control box is packed with wooden frame.
Delivery Detail: 20 days
