c z purlin roll forming machine of china c z section purlin cold roller machine
Inquire NowDescription

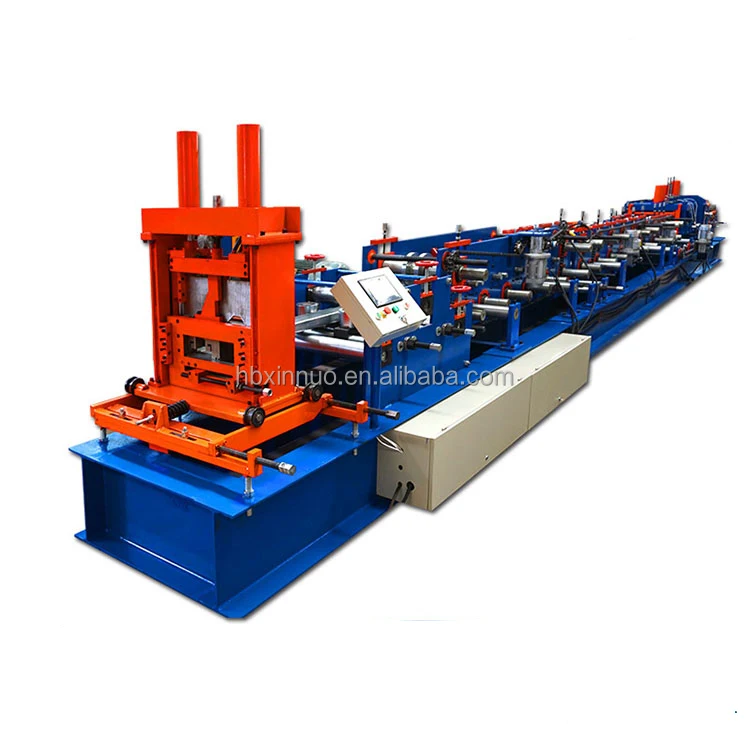

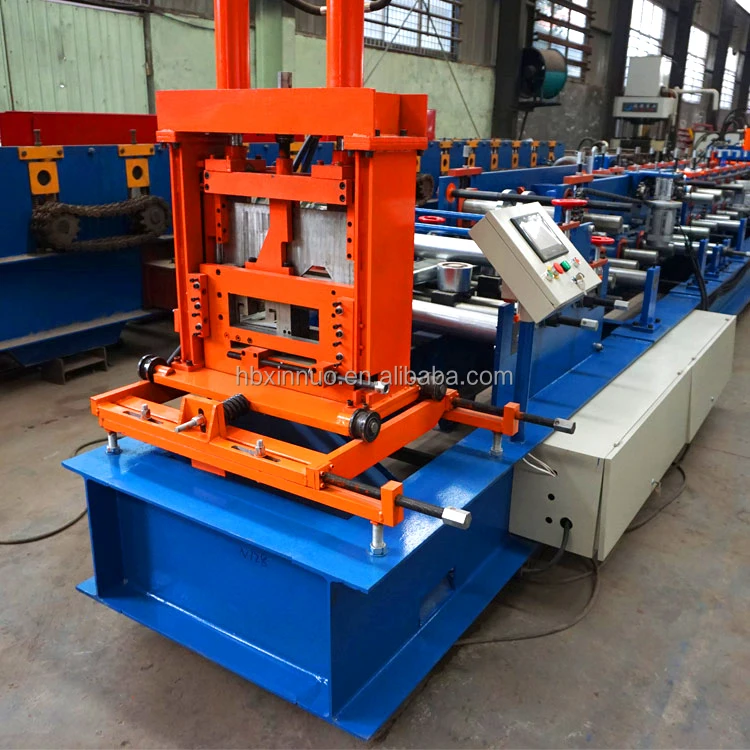

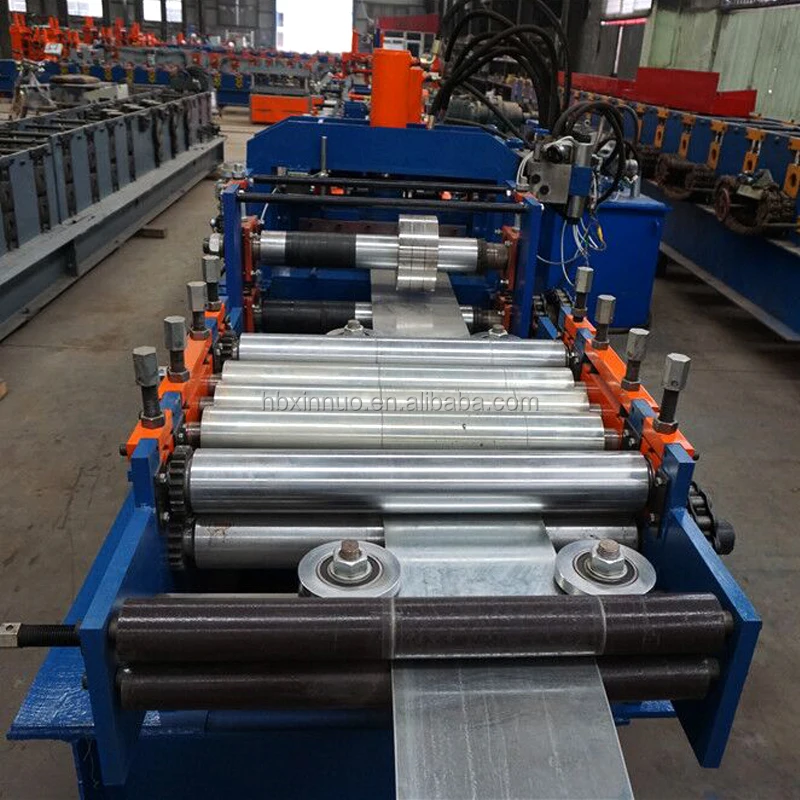

The C Z Purlin Roll Forming Machine is a cutting-edge solution designed for the efficient production of C and Z section purlins. This advanced cold roller machine is engineered to deliver precision and reliability in the manufacturing process, making it an essential addition to any metalworking facility. With features such as a PLC control system, hydraulic motor, and pre-punching device, this machine ensures high-quality output and operational efficiency. Ideal for producing various purlin specifications, it combines robust construction with user-friendly operation.
Specifications
| Attribute | Details |
|---|---|

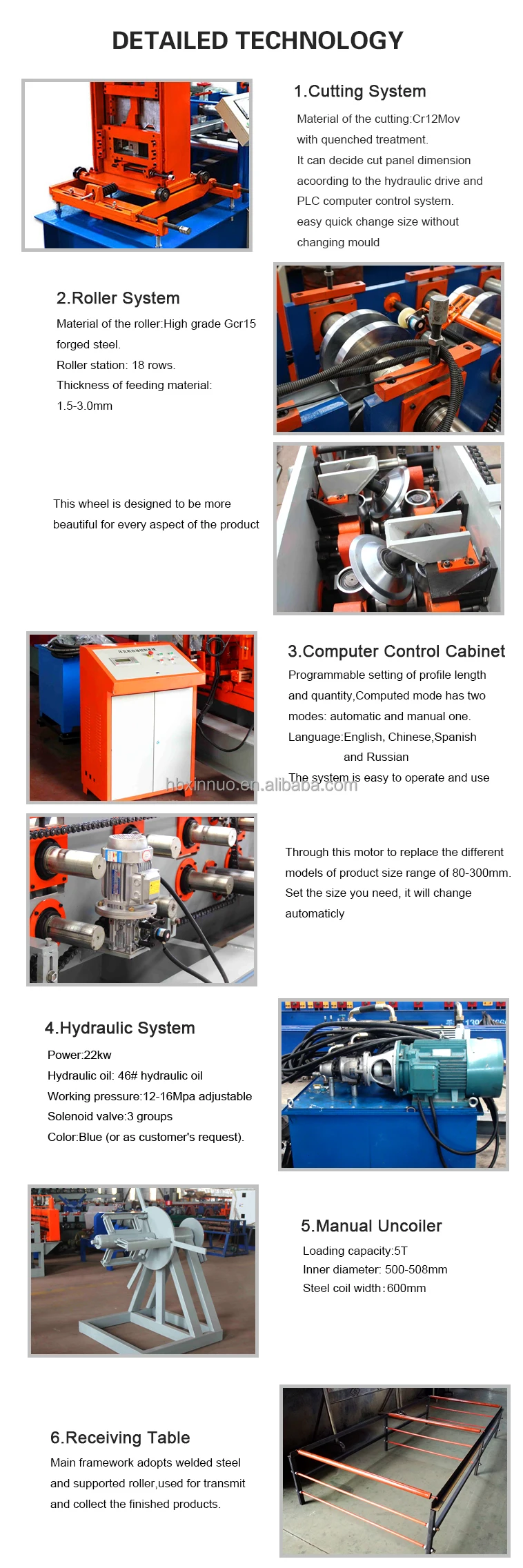

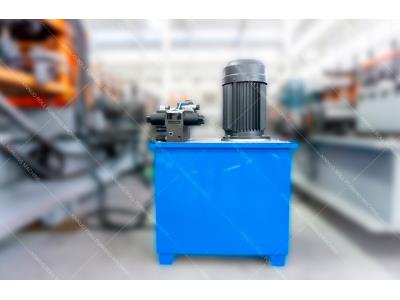

| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |

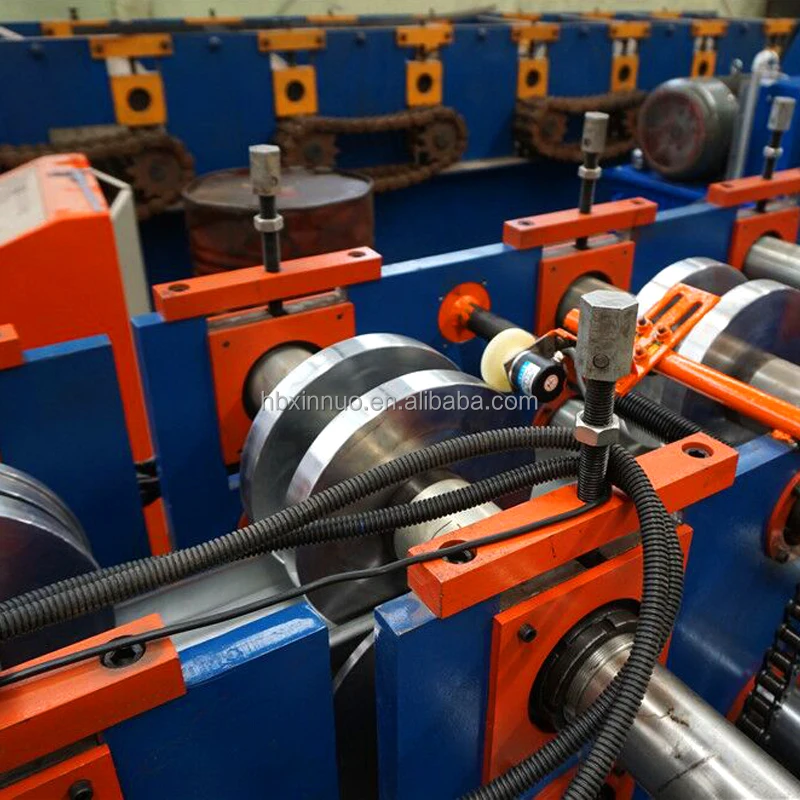

| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packing Details: The main machine is nude in the container, while the computer control box is packed with wooden packaging.
Delivery Detail: Approximately 20 days.
