c z purlin roll forming machine of china c z section purlin cold roller machine
Inquire NowDescription

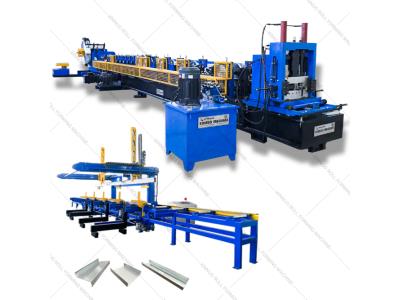

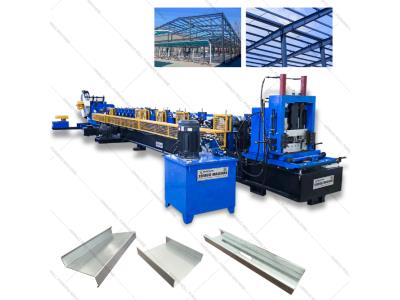

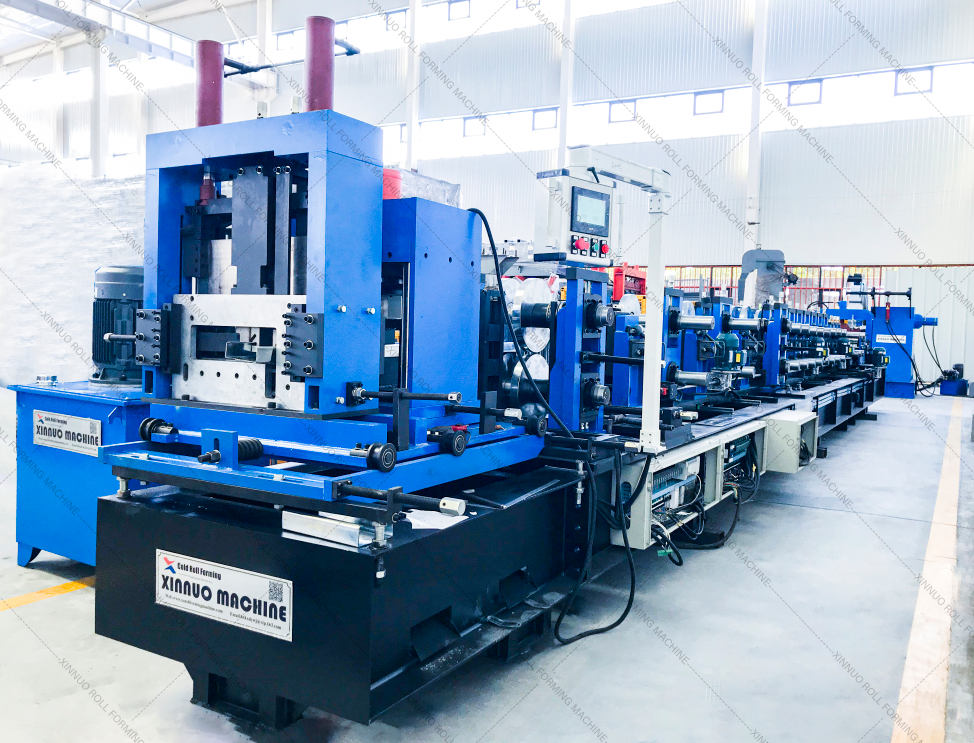

The C Z Purlin Roll Forming Machine is a state-of-the-art equipment designed for the efficient production of C and Z section purlins. This cold roller machine utilizes advanced technology to ensure high precision and reliability in forming purlins used in various construction applications. With a robust design and user-friendly PLC control system, it simplifies operations while delivering consistent results. Its versatility allows for adjustments according to customer specifications, making it an ideal choice for manufacturers looking to enhance their production capabilities.
Specifications
| Feature | Details |
|---|---|
| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packing & Delivery:
| Packaging Details: | Main machine is nude, the computer control box is packed with wooden frame. |
| Delivery Detail: | 20 days |
