c z purlin roll forming machine of china c z section purlin cold roller machine
Inquire NowDescription

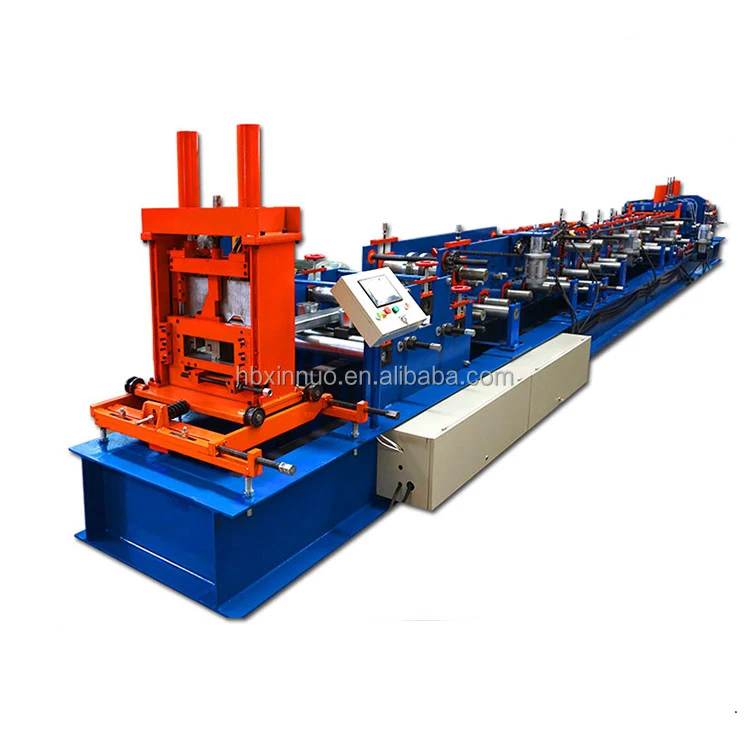

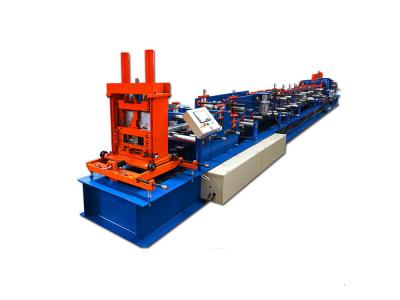

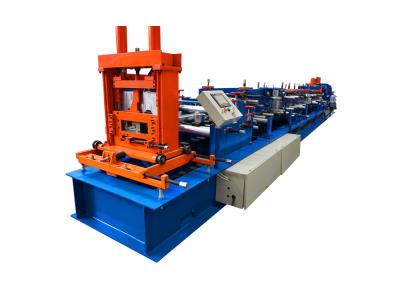

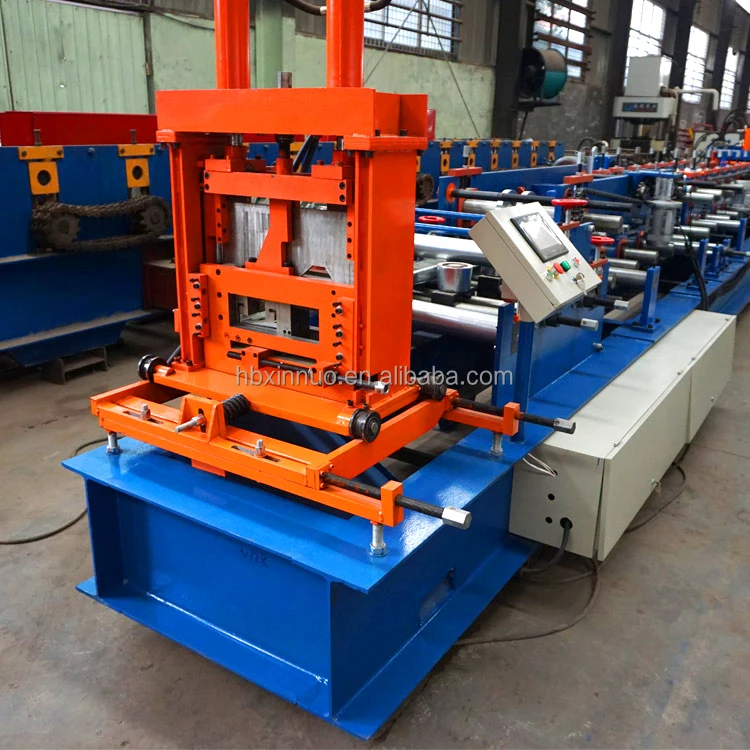

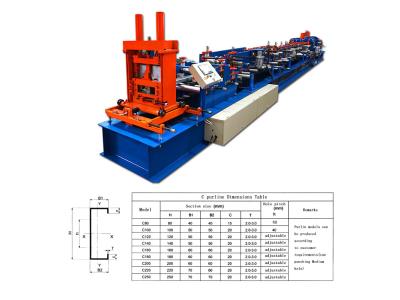

The C Z Purlin Roll Forming Machine is an advanced piece of equipment designed specifically for creating C and Z section purlins efficiently. This cold roller machine is engineered in China and is suitable for various construction applications, providing robust and precise purlin profiles. The machine features a user-friendly PLC control system with a touch screen, ensuring ease of operation and high productivity. With a total power of 22 kW and a forming speed of 12-24 meters per minute, this machine is built to handle demanding manufacturing tasks while maintaining quality and consistency.
Specifications
| Attribute | Details |
|---|---|

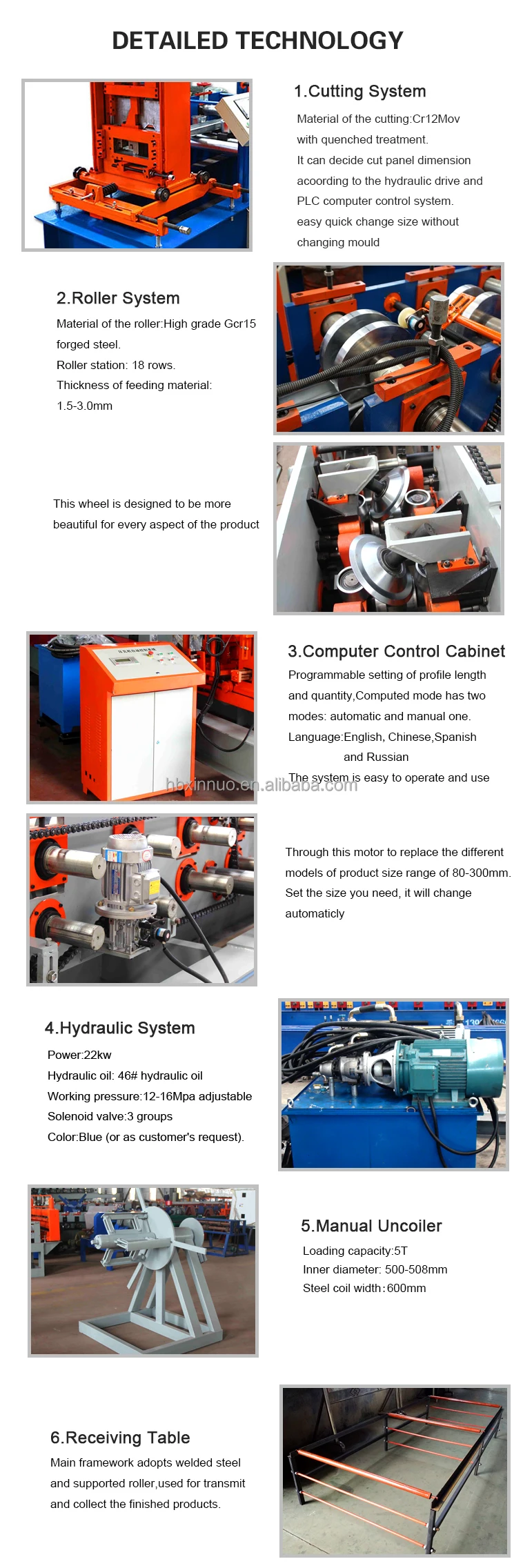

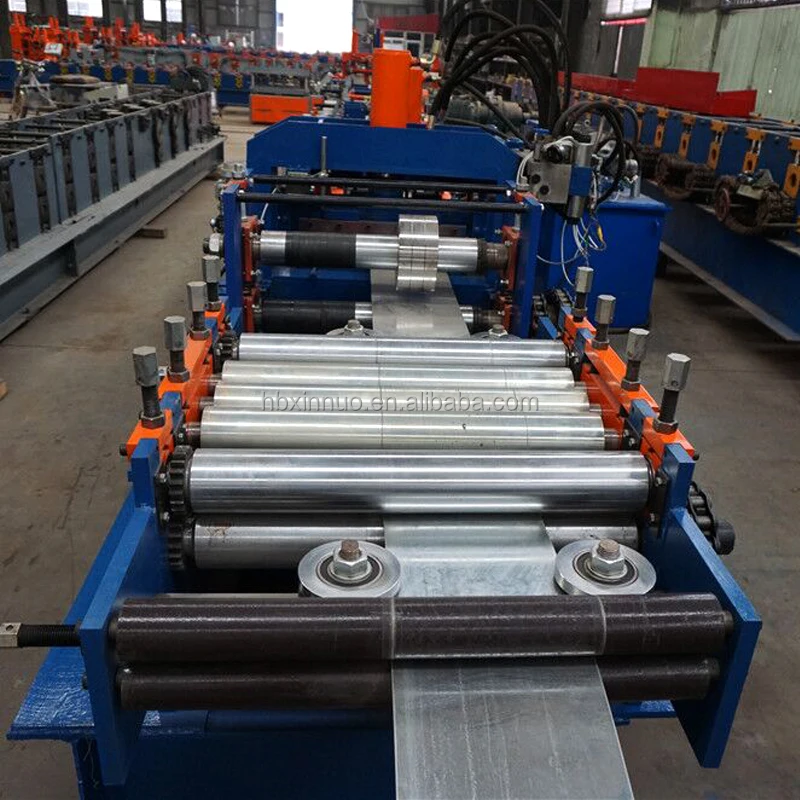

| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |

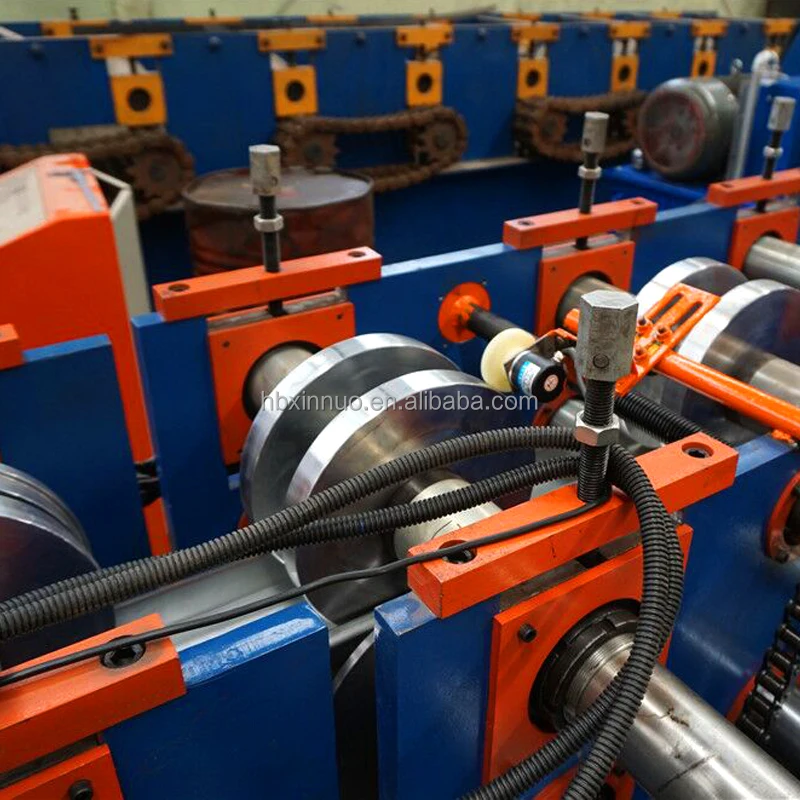

| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packing & Delivery:
| Packaging Details: | Main machine is nude, the computer control box is packed with wooden frame. |
| Delivery Detail: | 20 days |
