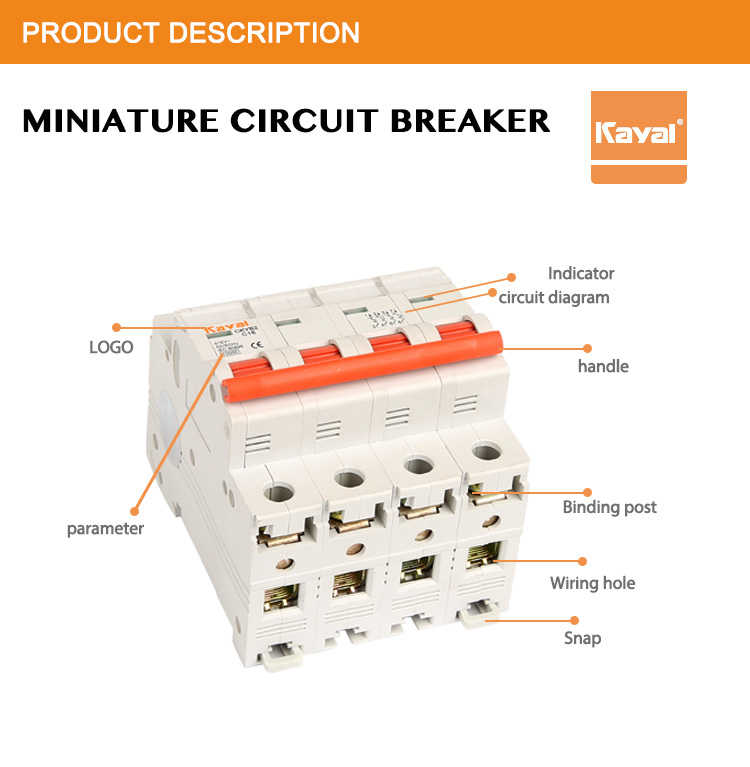

C65 AC MCB

Inquire Now

C65 AC MCB

Capable of switch electric circuit with load
Capable of quickly releasing stored energy operation
Adaptable to padlock device
Contact position indication
High short-circuit current withstand capacity
Highlighted of high making and breaking capacity
Used as main switch for household and similar installation

Pole No.	1,2,3,4
Rated current(A)	1,2,3,4,6,10,16,20,25,32,40,50,63
Rated frequency	50/60hz
Rated voltage	230/400V AC
Rated withstand current	1000A within 1sec
Electro-mechanical endurance	10000 cycles
Rated short-circuit making capacity	10000A
Connection capacity	Rigid conductor 25mm2
Connection terminal	Screw terminal
Connection terminal	Pillar terminal with clamp
Installation:	Panel mounting

C65 AC MCB
