c80-300 steel c purlin roll forming machine changeable c z purlin roll forming machine
Inquire NowDescription

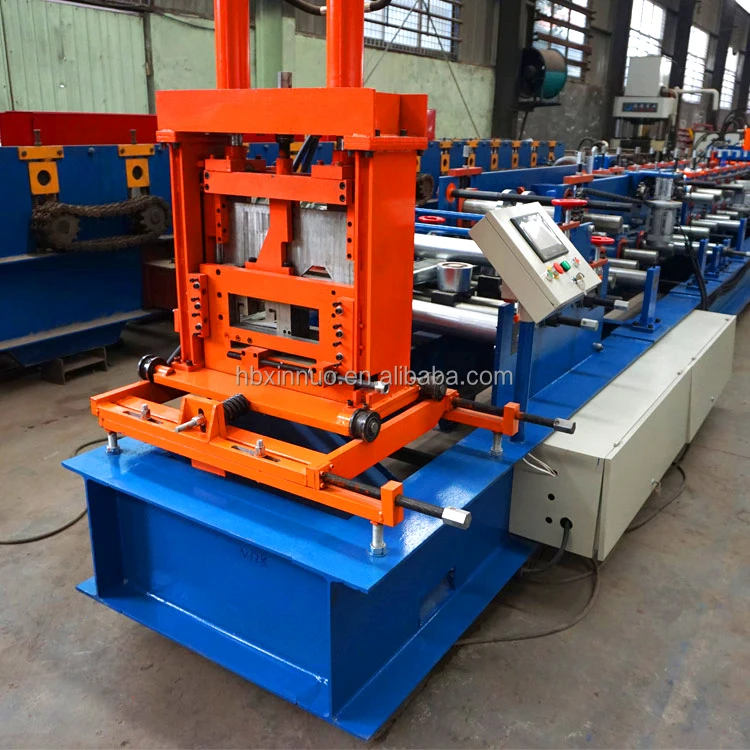

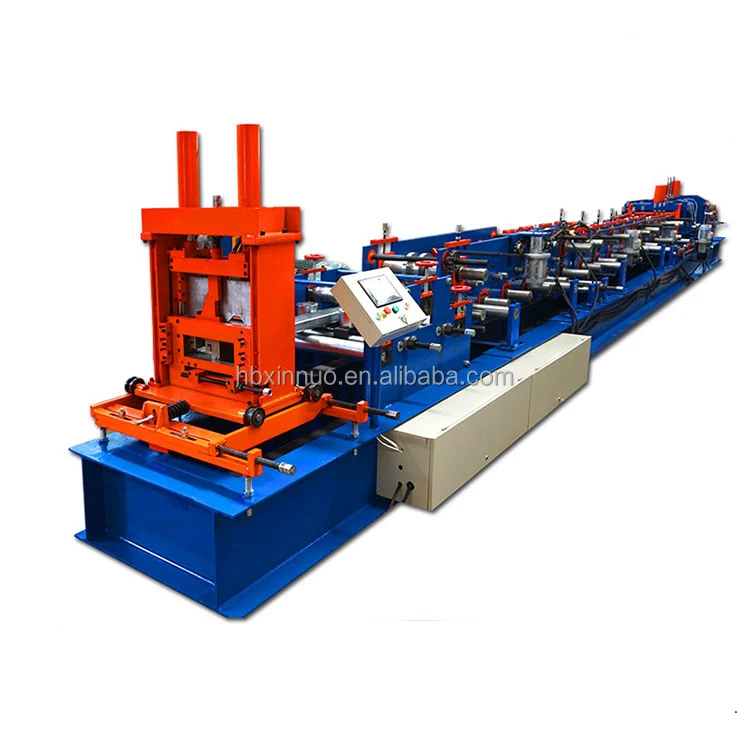

Automatic Steel C Z U Purlin Profile Cold Roll Forming Machine is an advanced manufacturing solution designed for the production of C and Z purlins. This high-efficiency machine features an automatic operation, allowing for seamless production with minimal manual intervention. Built with robust materials, it ensures durability and consistent performance. The machine includes a comprehensive setup that comprises a manual uncoiler, guiding platform, a nine-shaft strip leveler, main roll forming machine, hydraulic motor, pre-punching and pre-cutting devices, hydraulic station, PLC control, and a supporter table. This machine is ideal for manufacturers looking to enhance their production capabilities and meet diverse construction needs.
Specifications
| Attribute | Details |
|---|---|
| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kw |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1.5-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packing Details: The main machine is shipped nude, while the computer control box is securely packed in a wooden frame.
Delivery Detail: Estimated delivery time is within 20 days.

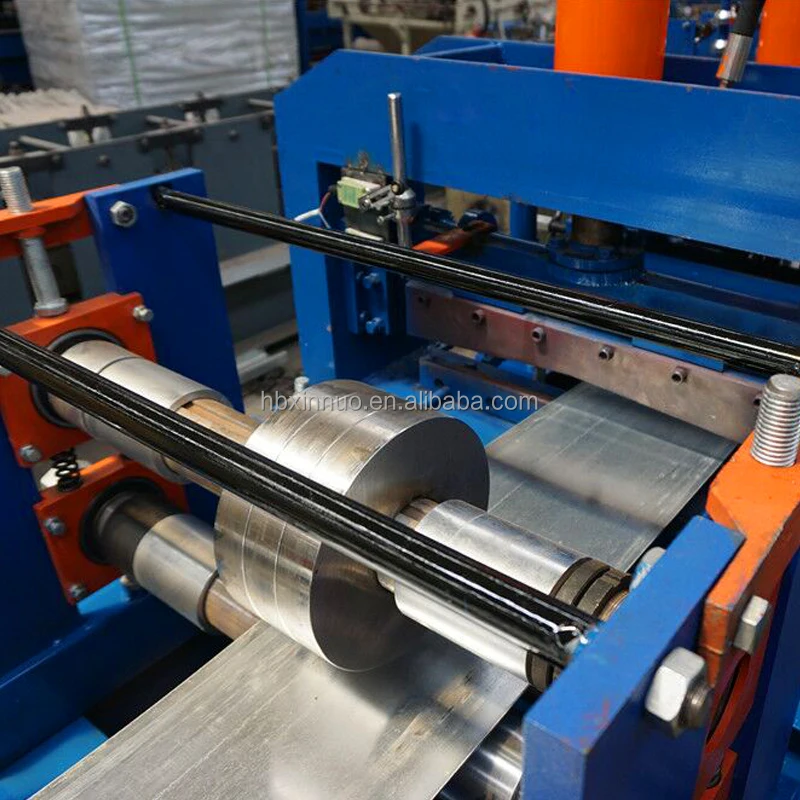

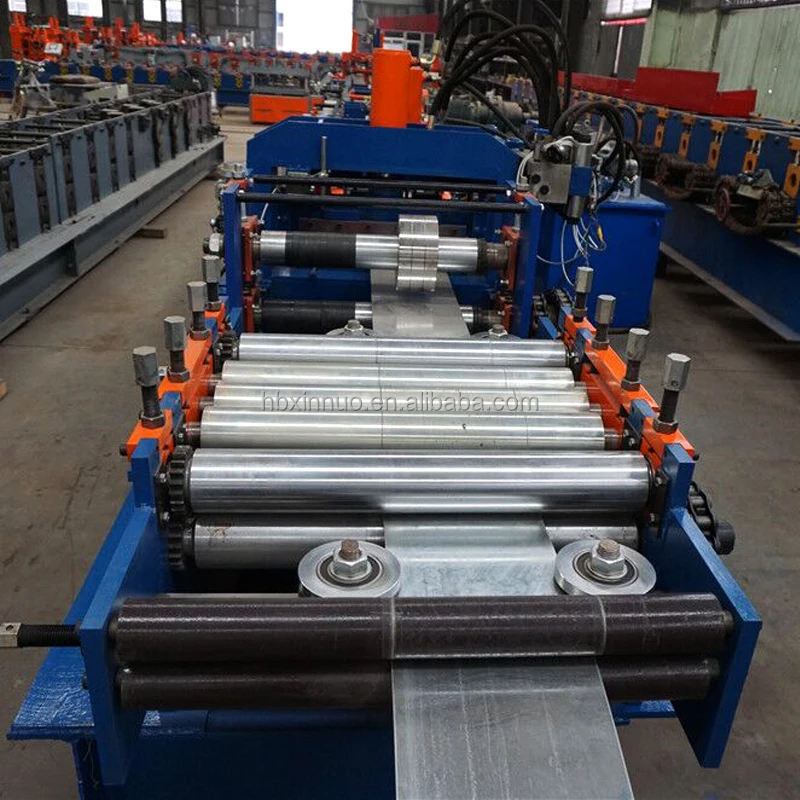

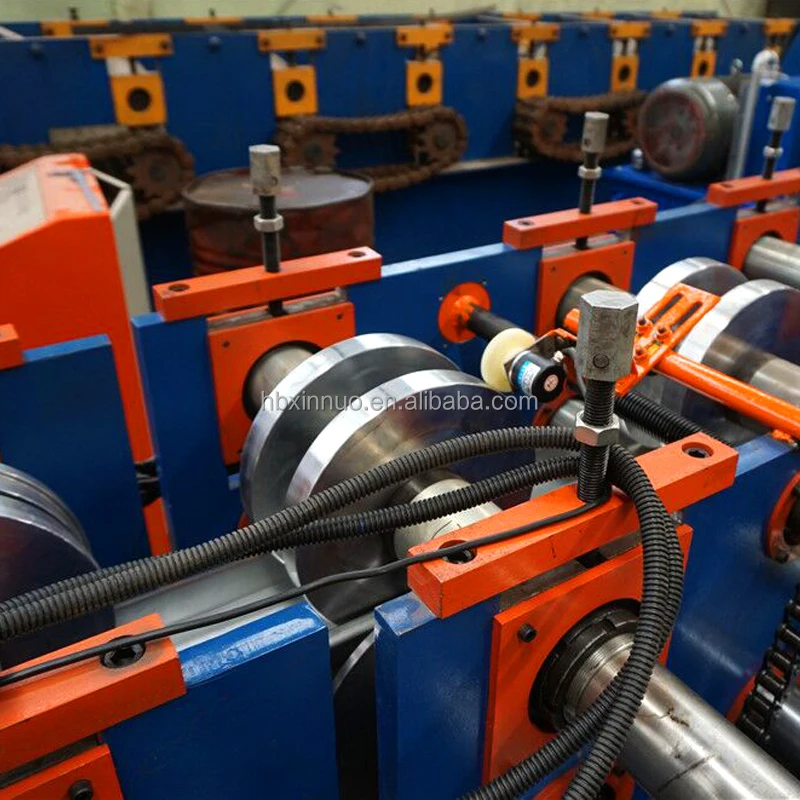

Images
