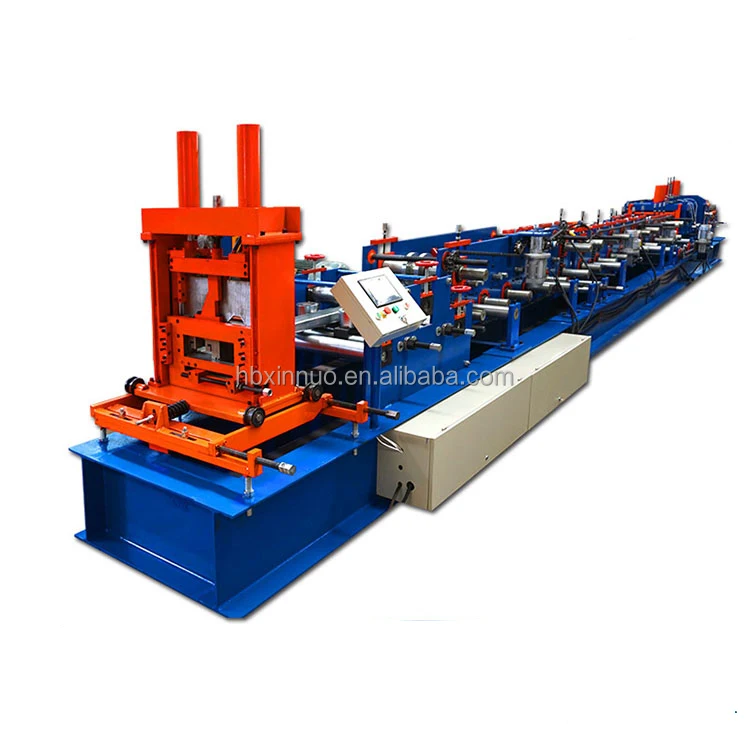

c80-300 steel c purlin roll forming machine changeable c z purlin roll forming machine
Inquire NowDescription
The Automatic Steel C Z U Purlin Profile Cold Roll Forming Machine is designed for high efficiency and precision in the production of C and Z purlins. Manufactured in China, this advanced machine features a robust construction and incorporates cutting-edge technology to ensure optimal performance. It is equipped with essential components such as a manual uncoiler, guiding platform, and PLC control system, making it an ideal choice for manufacturers looking to increase productivity and quality in their operations.

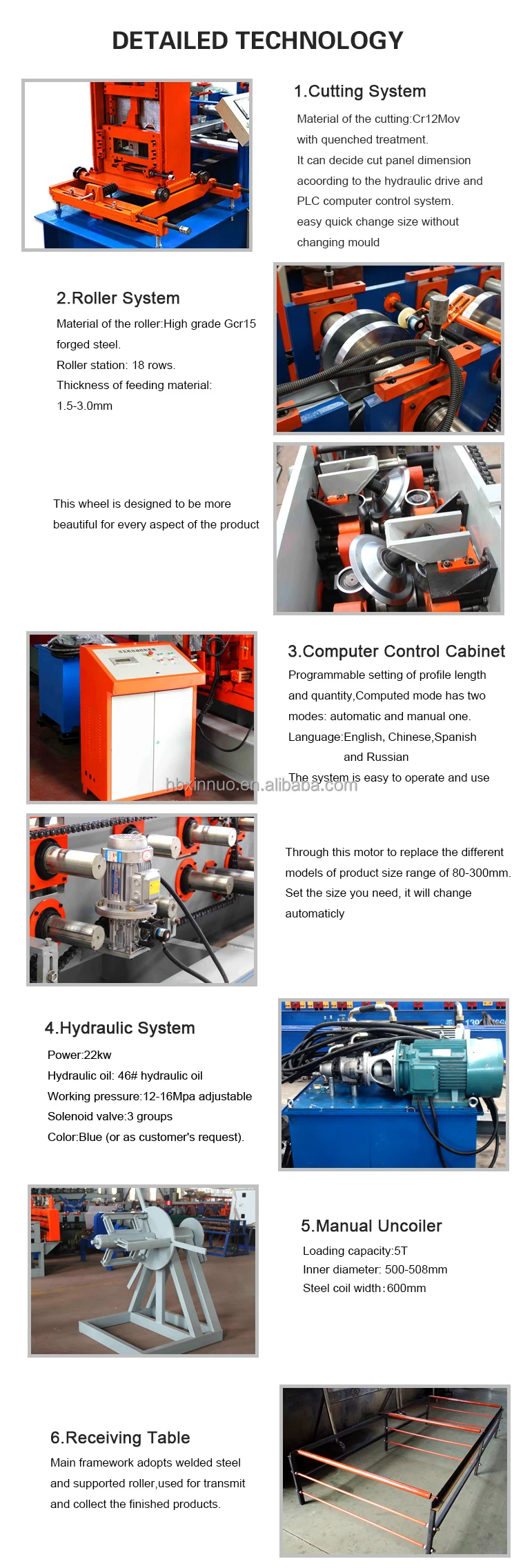

Specifications
| Attribute | Details |
|---|---|
| Configuration | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24 m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80 mm |
| Effective Width | 80-300 mm |
| Feeding Thickness | 1.5-3.0 mm |
| Backboard Thickness | 20 mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400 mm |
| Total Weight | About 10T |
| Custom | According to customer’s requirements |
Additional Information
Packing Details: The main machine is nude, while the computer control box is packed with a wooden frame.
Delivery Detail: 20 days

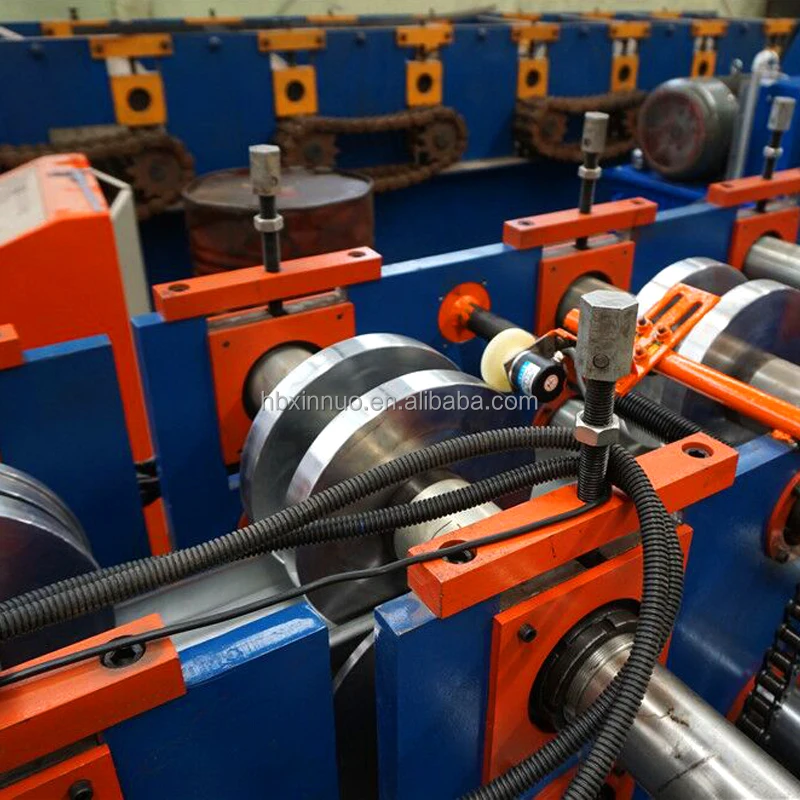

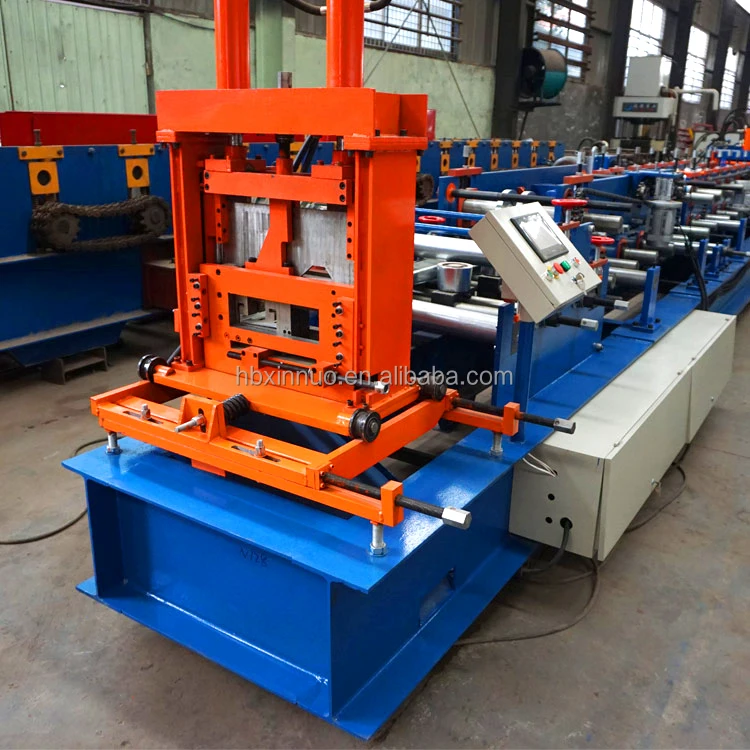

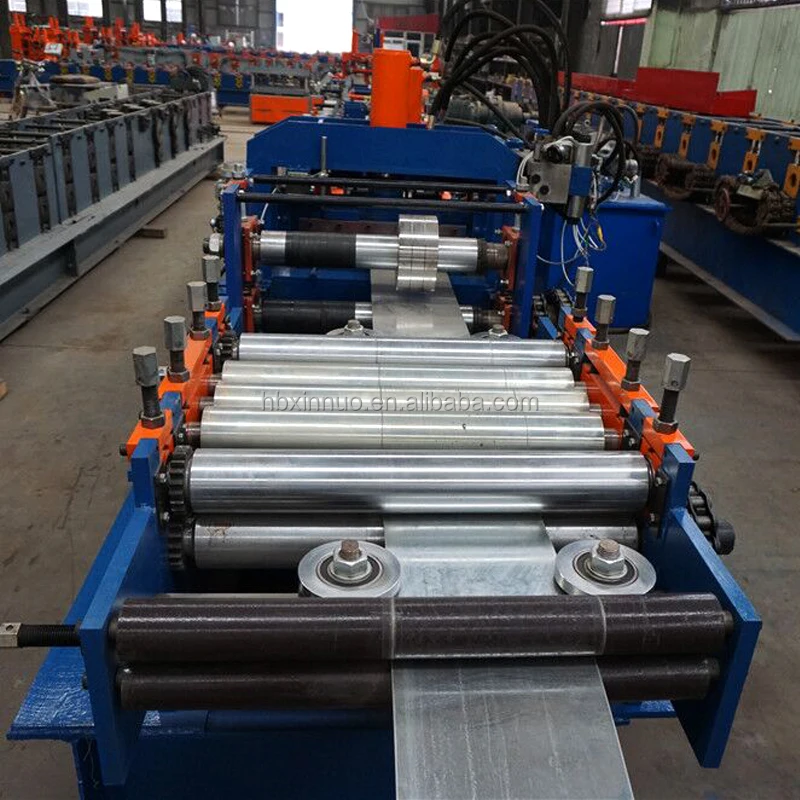

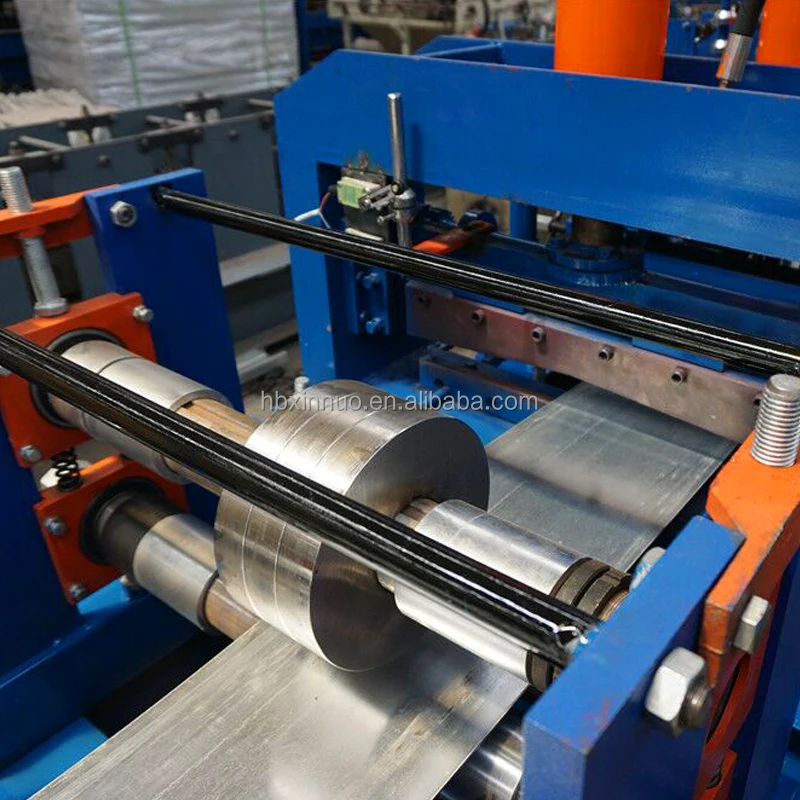

Images
