cable clay wall tile making machine
Inquire NowDescription
The Cable Clay Wall Tile Making Machine is a versatile and economical solution for producing high-quality clay wall tiles and metal roofing components. This machine is designed for efficiency, combining advanced engineering with user-friendly features to streamline your production process. Built with durability in mind, it offers exceptional performance in crafting cable ladder trays, ensuring precision and reliability in every batch.
Specifications
| No. | Specification | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 300-900mm |
| 3 | Rollers | 18-22 rows |
| 4 | Dimensions | 10.5 * 1.6 * 1.5 m |
| 5 | Power | 11 + 4 kW |
| 6 | Thickness of the plate | 0.5-1.2 mm |
| 7 | Productivity | 4-6 m/min |
| 8 | Diameter of the roller | 90 mm |
| 9 | Weight | About 8.0 T |
| 10 | Voltage | 380V 50Hz 3 phases |
Additional Information
Decoiler: Manual decoiler with a weight capacity of 5.0 T.
Feeding and Leveling Device: Ensures material is flat before feeding into the roll forming machine.
Punching and Cutting Device: Hydraulic punching for suitable holes and hydraulic cutting for specified lengths. Cutting material is Cr12 with a hydraulic power of 5.5 kW at 16 Mpa.
Warranty: 12 months limited warranty. Parts are free during warranty, but shipping charges apply.
Terms of Payment: 30% down payment via T/T, remaining 70% after inspection before delivery.
Delivery: 30 days after receipt of advance payment.

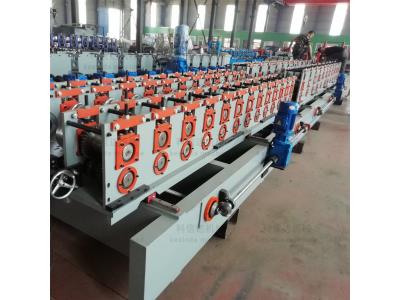

Product Pictures
