The Cable Tray Making Machine is an essential tool for efficient production in the construction industry. Designed to manufacture high-quality cable trays, drywall, and roofing sheets, this machine combines functionality with affordability. Key components include a manual uncoiler, a roll forming machine, a computer control system, a hydraulic control system, and a cutting mechanism, ensuring a streamlined operation.
With its advanced technology, this machine is capable of processing color steel plates and offers a productivity rate of 4-6 meters per minute. It is engineered for durability, featuring robust materials that withstand the rigors of constant use. The machine’s versatility allows it to accommodate various plate widths and thicknesses, making it a valuable asset for any manufacturing setup.
Specifications
| Attribute | Details |
|---|---|
| Suitable to Process | Color Steel Plate |
| Width of the Plate | 300-900 mm |
| Rollers | 18-22 rows |
| Dimensions | 10.5 * 1.6 * 1.5 m |
| Power | 11 + 4 kW |
| Thickness of the Plate | 0.5 – 1.2 mm |
| Productivity | 4-6 m/min |
| Diameter of the Roller | 90 mm |
| Weight | Approximately 8.0 T |
| Voltage | 380V 50Hz 3 phases |
| Rolling Material | Carbon Steel 45# |
| Material of the Cutting Plate | Cr12 |
| Processing Precision | Within 1.00 mm |
| Control System | PLC Control |
Additional Information

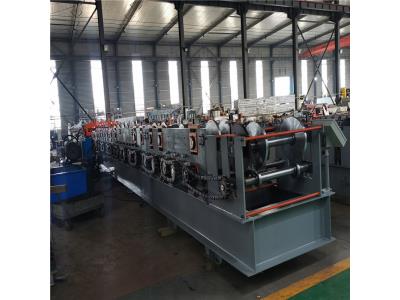

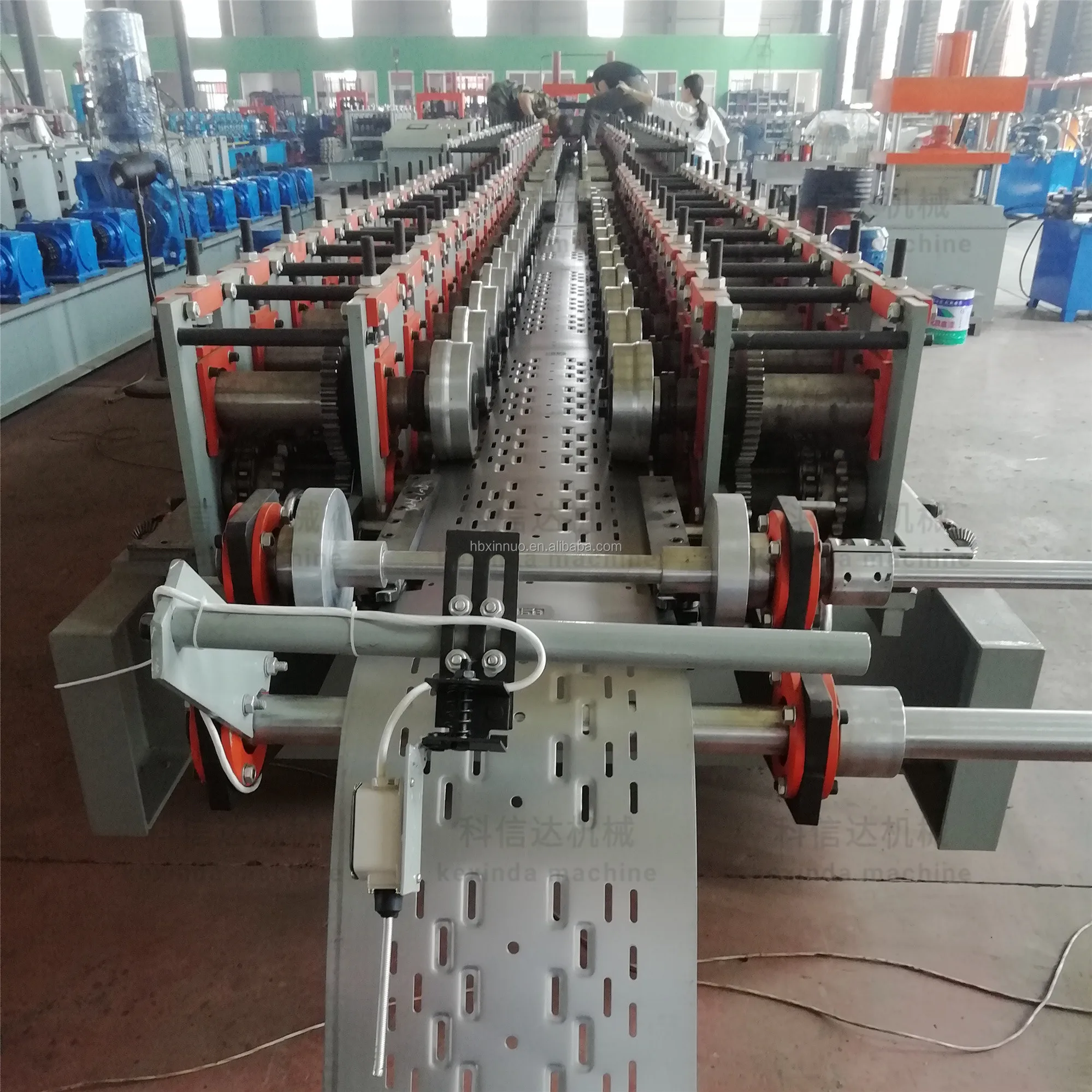

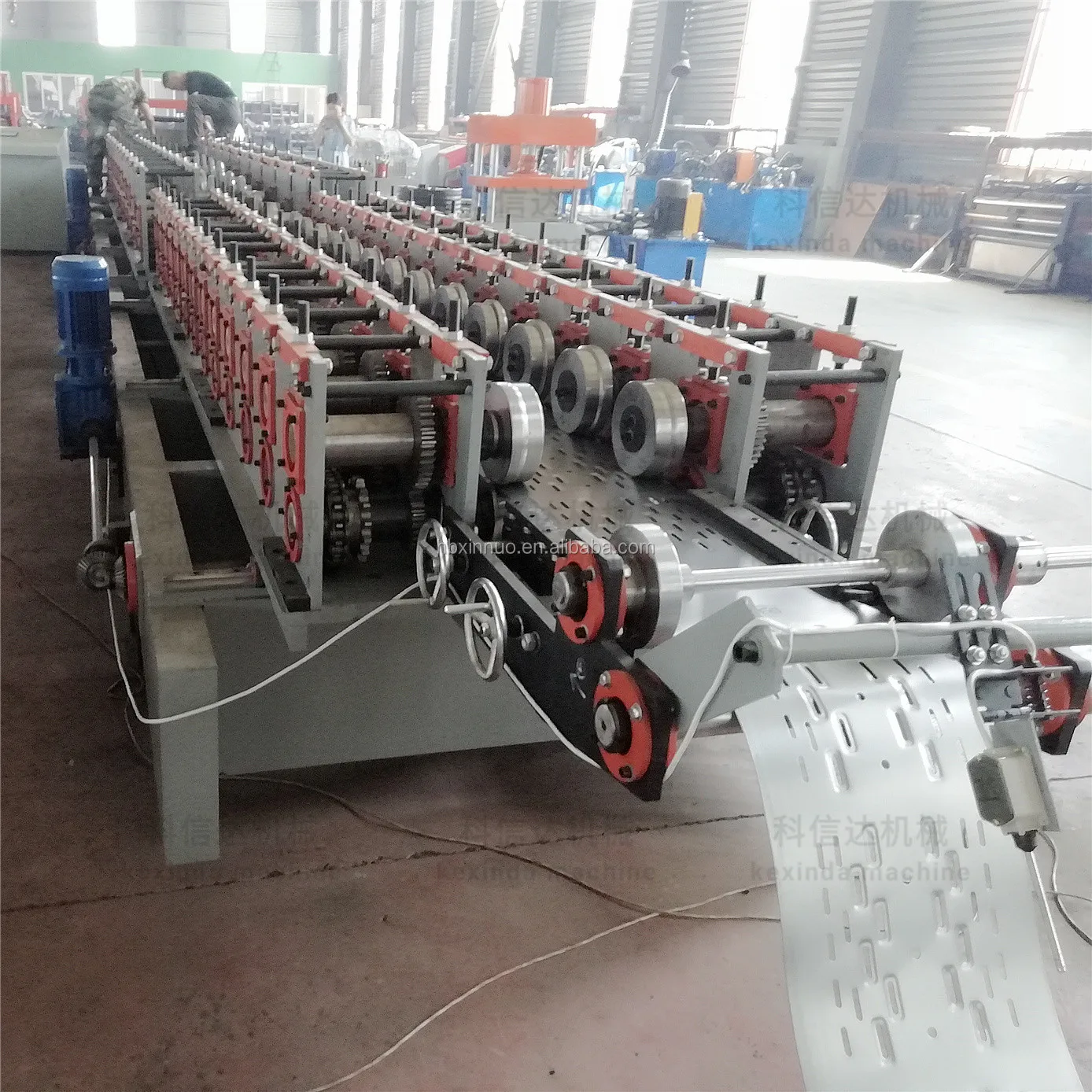

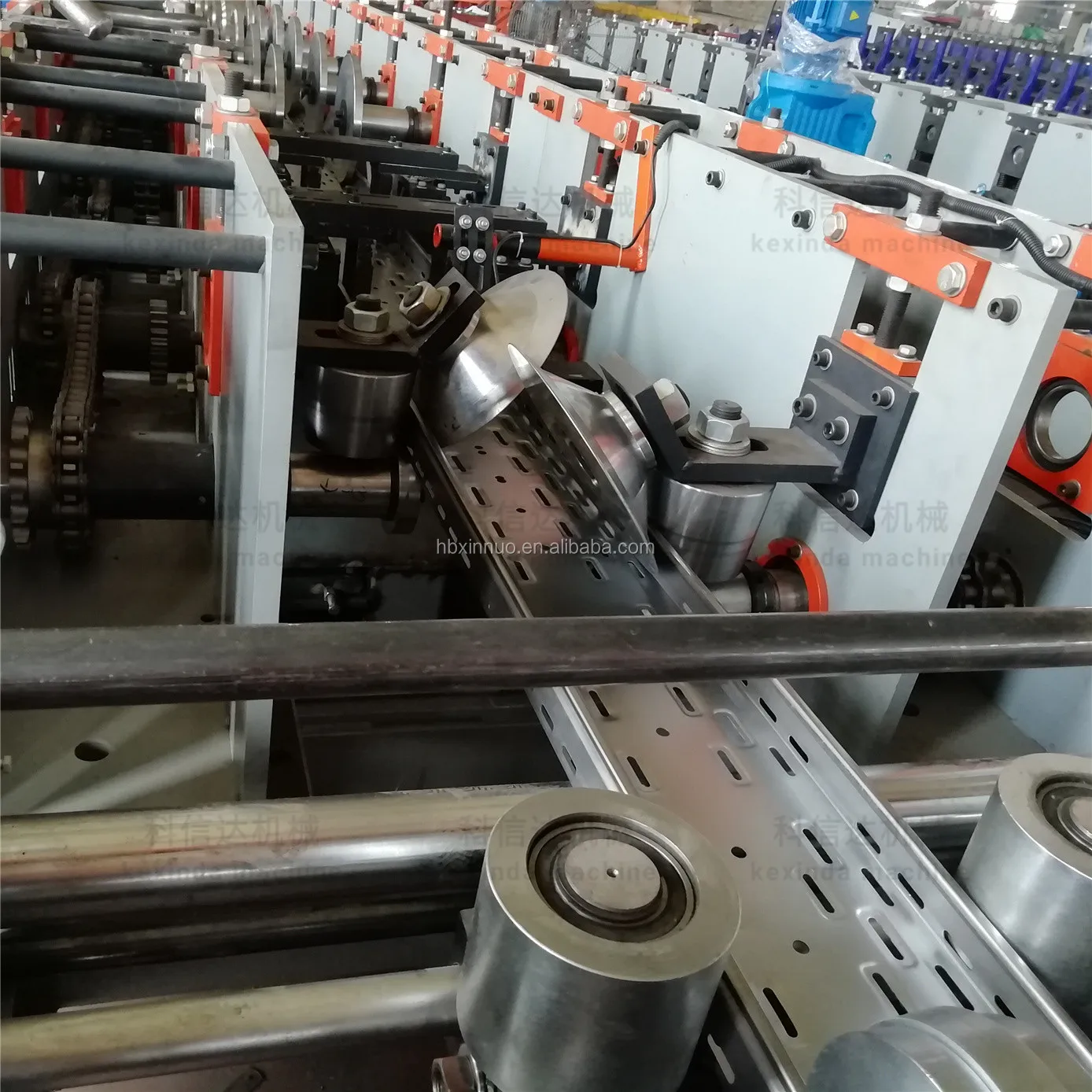

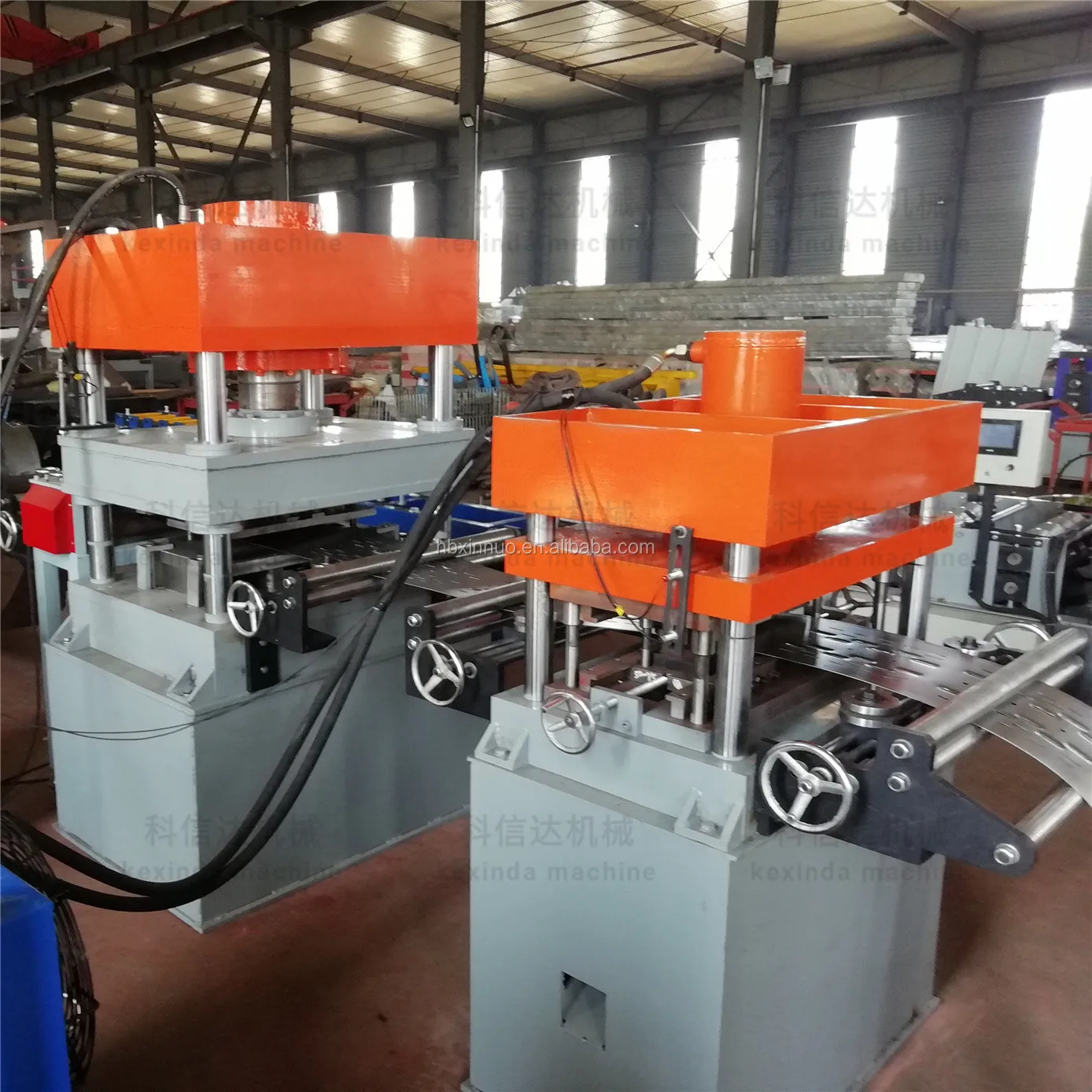

Product Pictures:
