cable tray roll making machine
Inquire NowDescription

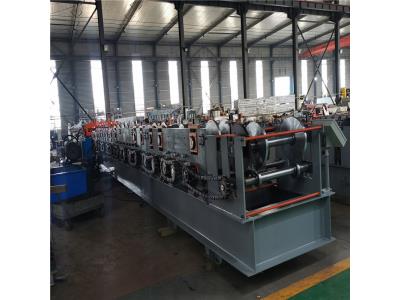

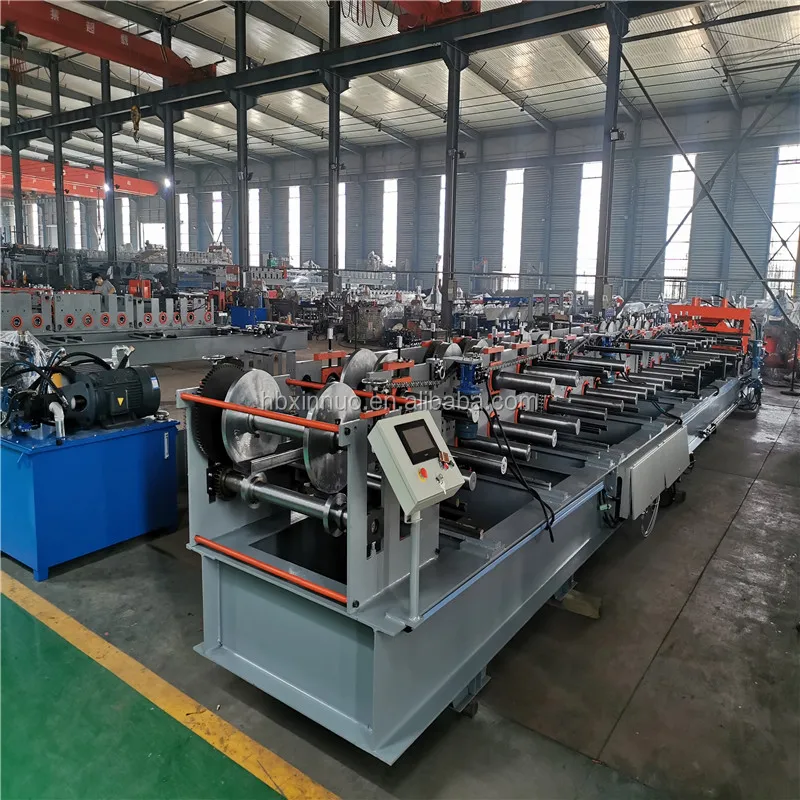

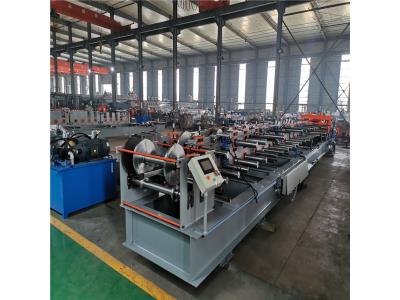

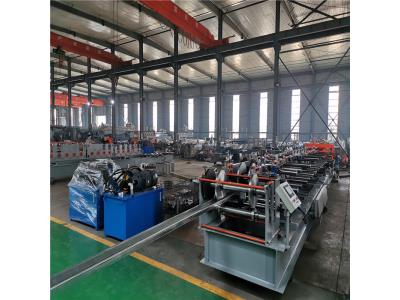

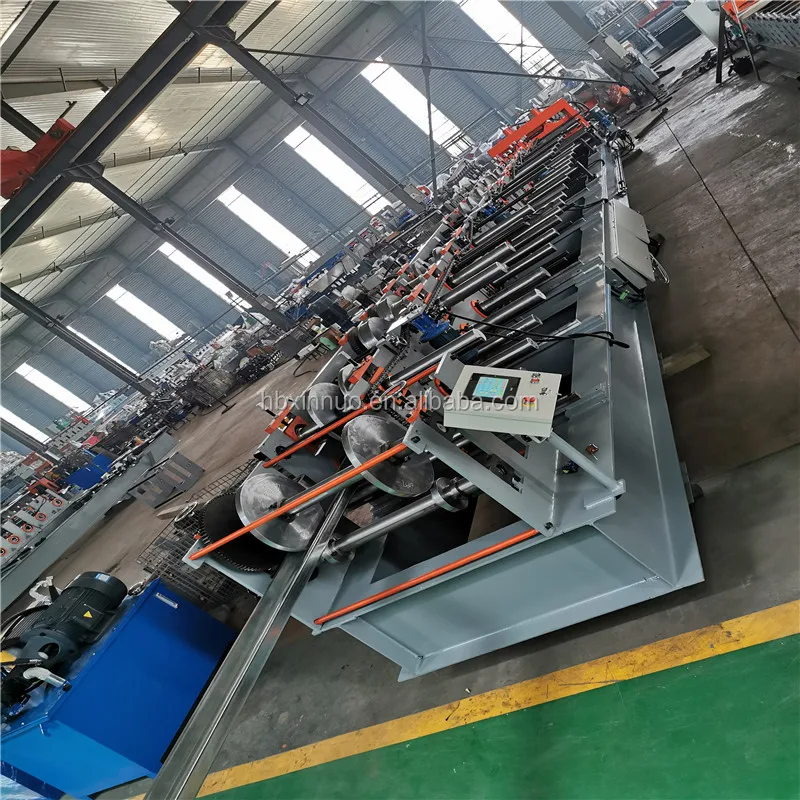

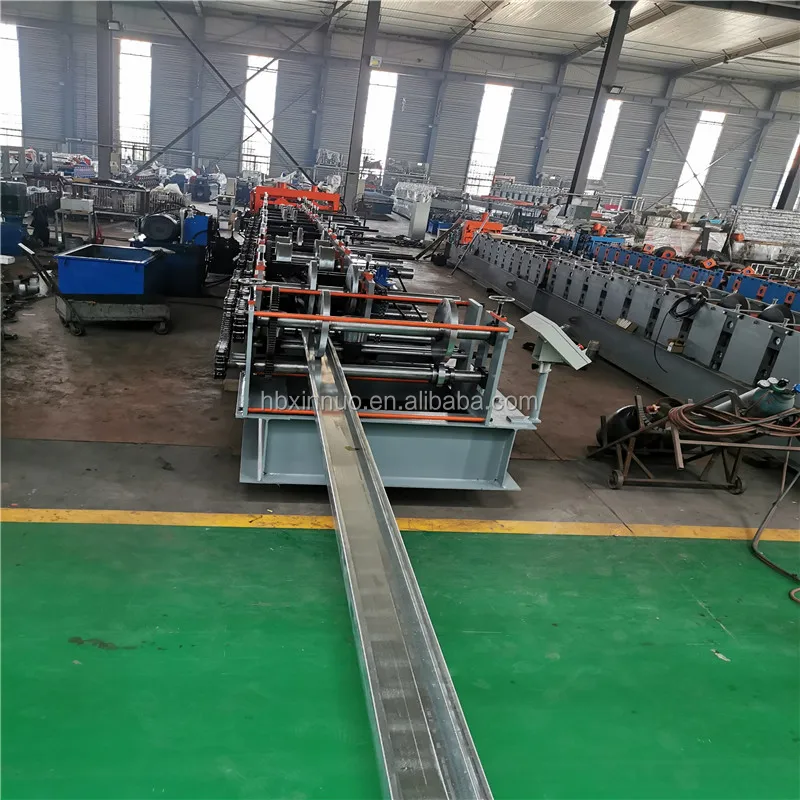

The Cable Tray Roll Making Machine is designed for efficient production of cable trays, offering an economical solution for manufacturers. This advanced equipment features a manual uncoiler, a robust roll forming machine, and a sophisticated computer control system, ensuring precision and reliability in every operation. The hydraulic control system enhances the cutting process, while the run-out table facilitates smooth handling of finished products.
Specifications
| No. | Feature | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 300-900mm |
| 3 | Rollers | 18-22 rows |
| 4 | Dimensions | 10.5 x 1.6 x 1.5 m |
| 5 | Power | 11 + 4 kW |
| 6 | Thickness of the plate | 0.5-1.2 mm |
| 7 | Productivity | 4-6 m/min |
| 8 | Diameter of the roller | 90 mm |
| 9 | Weight | About 8.0 T |
| 10 | Voltage | 380V 50Hz 3 phases |
Additional Information
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
Service: Technician will be sent to your country to fix the machine. The buyer is responsible for all costs, including visa, round trip tickets, accommodation, and a daily salary of $80.
Warranty: 12 months limited warranty. Parts are free during the warranty period, but the buyer pays for shipping fees.
