Cable Tray Sheet Roll Forming Machine/ Cable Tray Machine/ Cable Machine Manufacturer

Inquire Now

Description

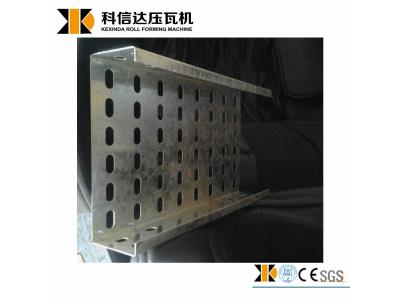

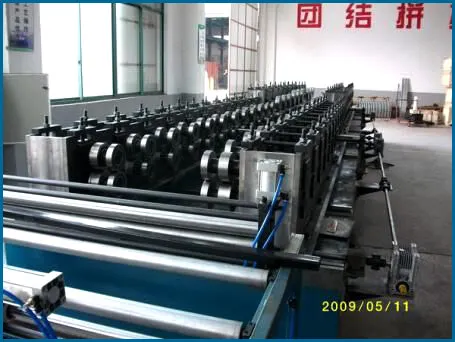

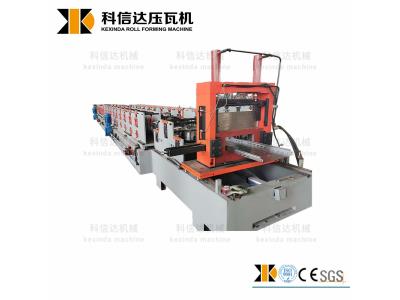

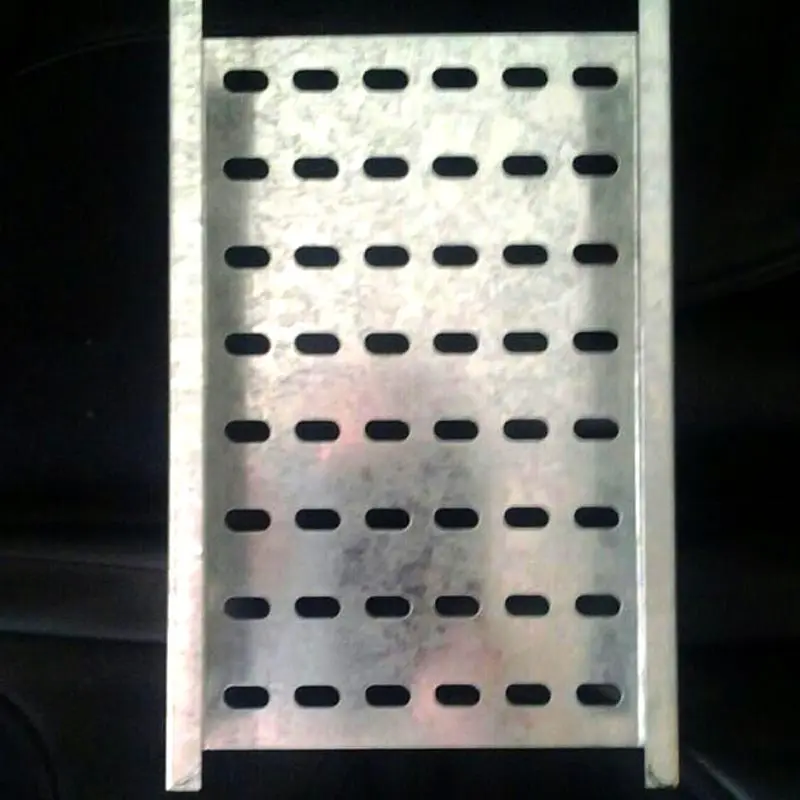

The Cable Tray Sheet Roll Forming Machine is a specialized equipment designed for the efficient manufacturing of cable trays. Constructed with high-quality materials such as galvanized plate and 350mm H steel, this machine is engineered for durability and precision. It accommodates varying plate thicknesses from 1.5mm to 2mm, making it versatile for different production needs. The machine features a robust design, including an 18mm thick steel plate for the main forming body, ensuring stability during operation.

With a working speed of 8-12m/min, it allows for rapid production without compromising quality. The advanced PLC control system with an inverter enhances operational efficiency. Additionally, the machine is equipped with a reliable 15kw Xingxing Cycloid reducer, providing stable performance with minimal noise. This roll forming machine is designed for easy debugging and size adjustments, making it a valuable asset for any manufacturing facility.

Specifications

Attribute Details
Plate Material Galvanized plate/strip steel
Thickness of Plate 1.5-2mm
Machine Body 350mm H steel
Wall Thickness of Main Forming Machine 18mm steel plate
Transmission Chain 2’’
Reducer 15kw Xingxing Cycloid
Roller Material GCr15 with quenched treatment 62-64°C
Number of Rollers 14 steps, including 9 shafts for leveling
Diameter of Active Shaft 80mm, 45# steel
Hydraulic Pump Power 7.5KW
Control System PLC control system with inverter
Working Speed 8-12m/min

Additional Information

Guarantee: 12 Months guarantee. If any part of the machine breaks, we will supply the best part, but if the damage is due to operational error, the buyer will pay for the shipping fee.

After-sale Service: We will send a technician to your country to fix the machine. The buyer should bear all costs including visa, round trip ticket, accommodation, and pay a salary of $100 per day.
