Cast Resin Dry Type Transformer up to 38.5kv
Inquire NowCast Resin Dry Type Transformer up to 38.5kv
Scope of application
A. Location with seasonal huge load surge or overload;
B. Location with critical requirement of flame resistance and safety, such as metro, large plaza, Petrochemical Enterprises, Commercial Center, and office building.
Service condition
Working temperature: -20oC~60oC;
|
Insulation |
Material |
expoxy resin class H / class C Nomex paper |
|

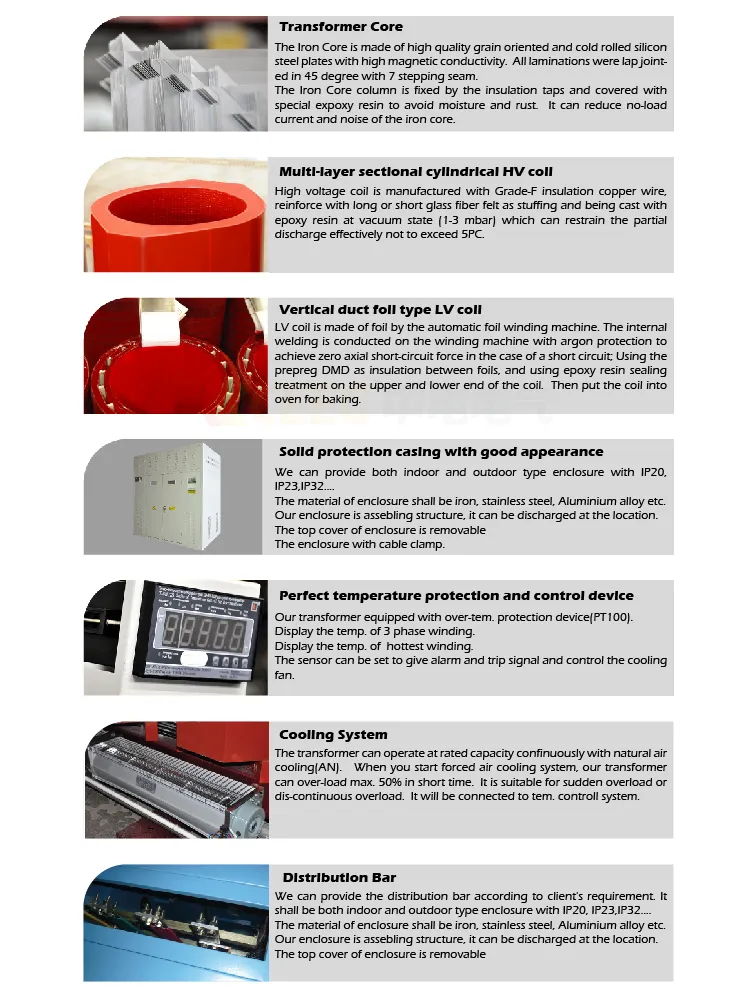

Structure
|

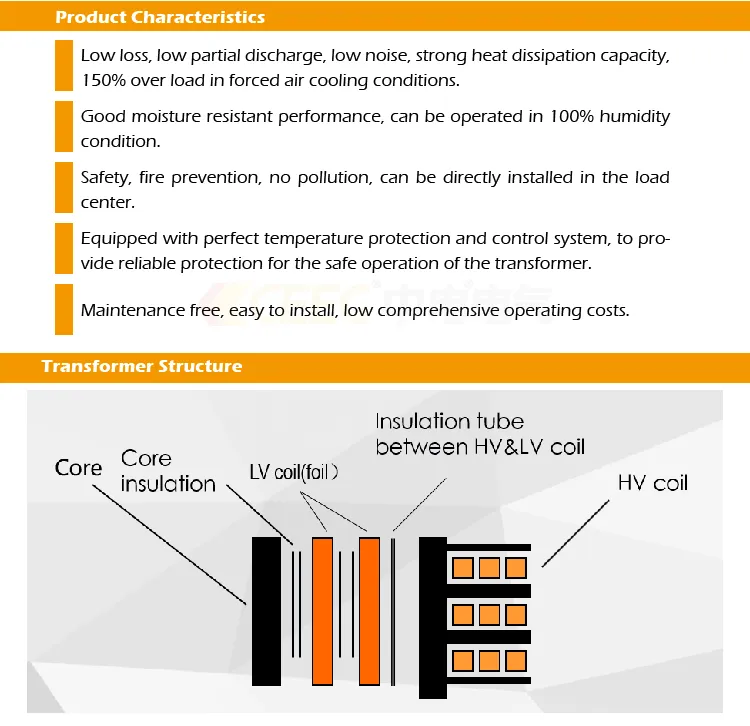

HV coil is multi layer sectional cylinder structure, LV coil is foil with longitudinal air chamber structure. |
|
|
Reliability |
Insulation class |
H(180oC) |
|
Tem. rise of coil |
125K(normal 100K) |
|
|
Over-load capacity |
continuously 120% |
|
|
Cooling method |
AN/AF |
|
|
Environmental protection |
Noise |
Low |
|
Recycling |
easy recycling and low pollution |
