Description
The CAT7A SFTP is meticulously engineered to meet the demands of high-speed data transmission, making it ideal for VoIP, ISDN, Token systems, and more. This advanced cable supports a wide range of applications, including 100MTP-PDM, analog video, and data video. With its compatibility with the latest IEEE standards such as 100Base-T, 1000Base-T, and 10GBase-T, it ensures robust performance for both active and passive connections.

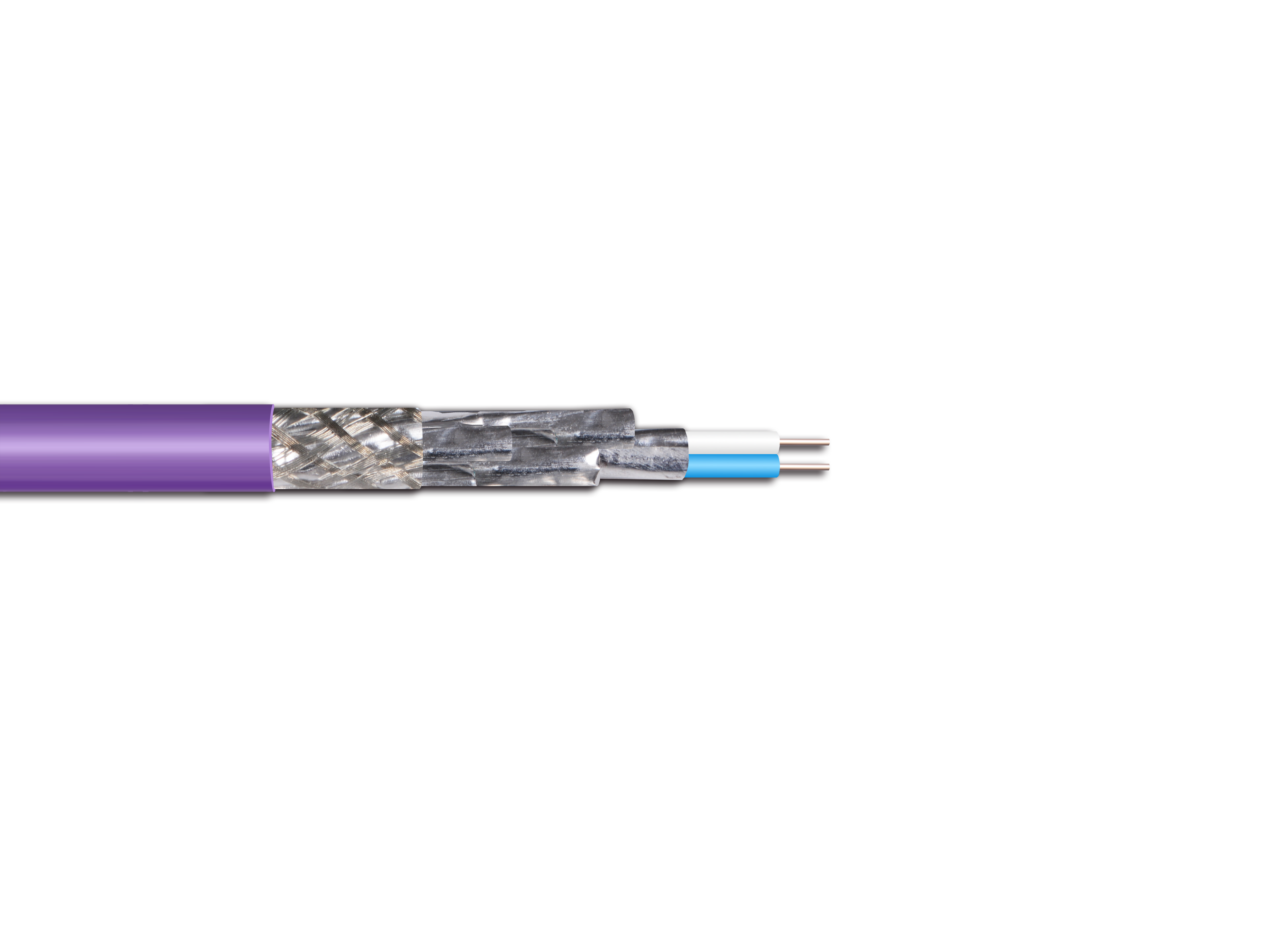

This cable features a solid bare copper conductor for enhanced conductivity and reduced signal loss. Its insulation is crafted from colour-coded skin-foam-skin material, providing additional protection. Each pair of wires is individually shielded with AL/PET, while the overall shield consists of a TC braiding, ensuring optimal shielding against interference. The CAT7A SFTP also includes an optional rip cord for easier handling and installation. Encased in either lead-free PVC or LSZH (Low Smoke Zero Halogen) jacket, this cable guarantees safety and reliability in various environments.
Specifications
| Attribute | Details |
|---|---|
| Conductor | Solid bare copper |
| Insulation | Colour-coded Skin-Foam-Skin |
| Individual Shield | AL/PET |
| Overall Shield | TC Braiding |
| Rip Cord | Optional |
| Jacket | Lead-free PVC or LSZH |
| Rated Temperature | 60℃, 75℃ |
| Flame Retardant Grade | ETL/UL (CMX, CM, CMG, CMR), CPR (Bca, Cca, Dca) |
| Reference Standard | UL444, IEC 61156-5, TIA/EIA568C.2, EN50575, EN50399, EN60332-1-2, EN61034-2 |
Additional Information
- Designed for high-speed data applications.
- Ideal for both active and passive connections.
- Offers exceptional shielding to reduce interference.
