Description

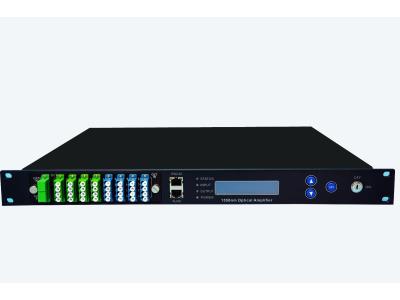

The EDFA1550nm Catv Amplifier is a state-of-the-art optical amplifier designed to enhance signal strength and quality in fiber optic networks. It is applicable for GPON and EPON, and is compatible with any FTTx PON technology, making it an ideal choice for integrated telecommunication networks. This high-performance, low-noise device is equipped with multi-port capabilities and well-performed CWDM (1310nm/1490nm/1550nm) for optimal performance.

Key features of the EDFA1550nm include:

• High Performance: It operates as a powerful FTTP amplifier suitable for various fiber optic applications.
• Cost-Effective: Designed for three-network integration and Fiber to the Home (FTTH), providing excellent value.
• Top-Class Components: Utilizes the world’s leading pump laser technology for superior quality and stability.
• Durability: Integrated APC, ACC, and ATC control, alongside advanced ventilation and heat dissipation designs ensure long product life.
• Management Ports: Features an RJ45 port for SNMP remote management and RS232 for local management.
• Optical Flexibility: Offers optional dual optical input with a built-in 2 × 1 optical switch.
• Detection Capabilities: Optional RF detection function for enhanced monitoring.

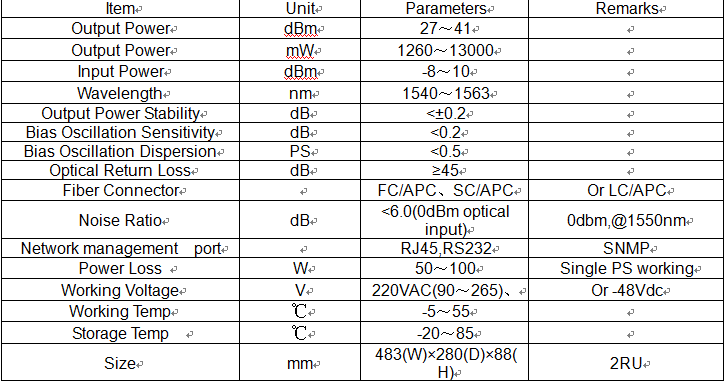

Specifications

Additional Information

For optimal performance and longevity, ensure proper ventilation and regular maintenance of the EDFA1550nm. Follow the manufacturer’s guidelines for installation and management to maximize its capabilities in your fiber optic network.
