CATV COAXIAL CABLE
Inquire NowDescription

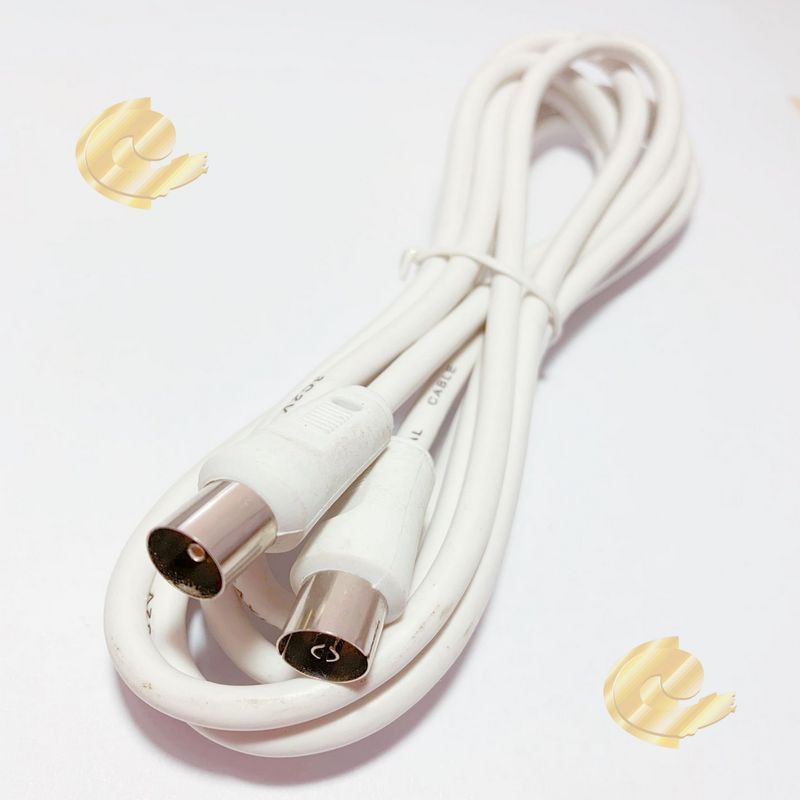

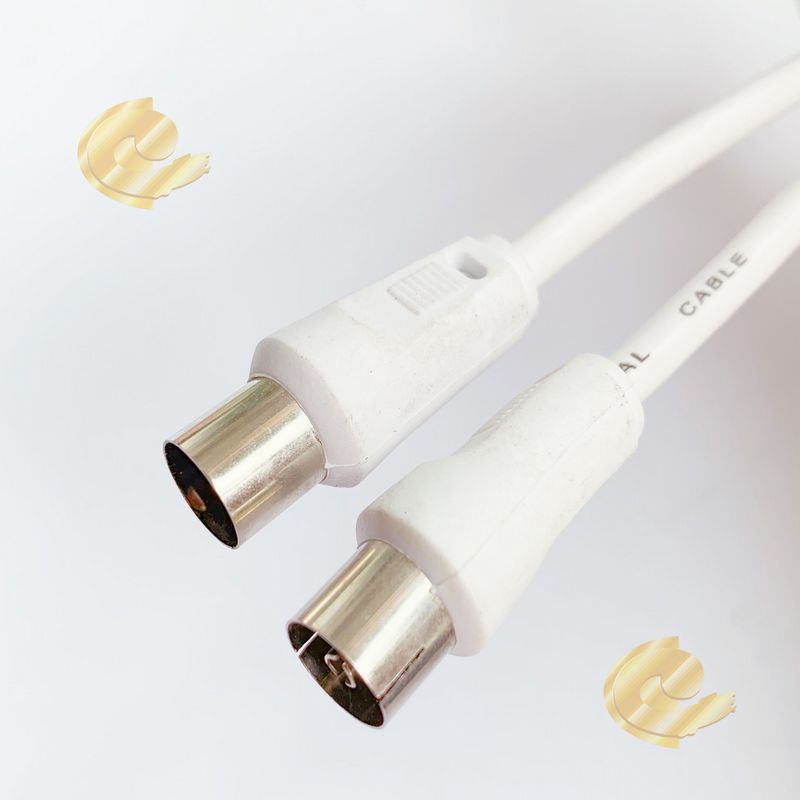

The CATV Coaxial Cable is a high-performance solution designed for exceptional signal transmission in cable television applications. Built with quality materials, this coaxial cable ensures reliable connectivity and minimal signal loss. Its construction features a durable PVC jacket, providing protection against environmental factors, while the various inner components are tailored to meet specific requirements for optimal performance. The cable can be customized in terms of color, specification, and length to suit individual needs, making it a versatile choice for both residential and commercial use.
Specifications
| Cable Type | Inner Conductor | Insulation | Shielding | Braiding | Jacket |
|---|---|---|---|---|---|
| 3C2V | 1/0.5mm BC | 3.1mm SPE | Aluminum Foil | 64*0.16 AL | 5.0mm PVC |
| RG59 | 0.8mm BC | 3.7mm FPE | Aluminum Foil | 64*0.16 AL | 6.0mm PVC |
| RG6 | 1.02mm BC | 4.7mm FPE | Aluminum Foil | 64*0.16 AL | 6.9mm PVC |
Additional Information
The PVC jacket’s color, specification, and length can be customized according to customer demands, ensuring that all specific needs are met for various applications.
