CATV Signal Amplifier
Inquire NowDescription

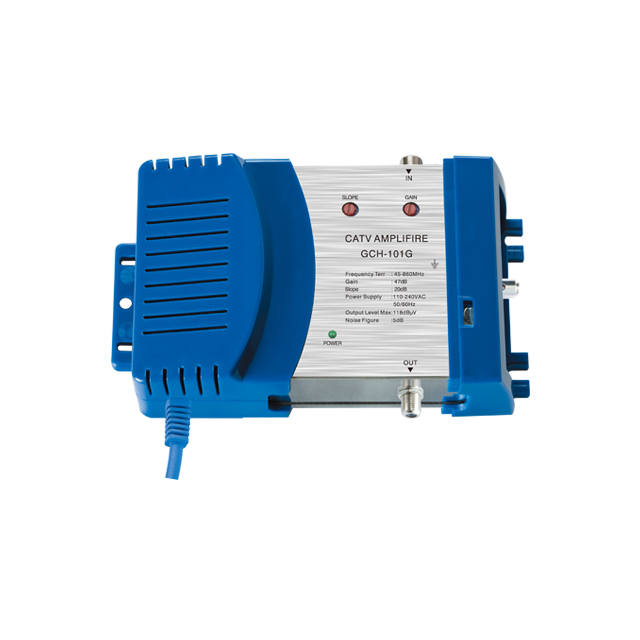

The CATV Signal Amplifier is expertly designed to enhance indoor CATV signals, ensuring you enjoy clear and uninterrupted television viewing. This high-performance amplifier features an adjustable gain, allowing you to tailor the output to your specific needs, while its slope compensation helps to maintain optimal signal quality across a range of frequencies. With its robust construction and high output level, this amplifier is the perfect choice for anyone looking to boost their CATV signals effectively.
Specifications
| Attribute | Value |
|---|---|
| Impedance | 75 ohm |
| Frequency Range | 47-860 MHz |
| Gain | 30 ± 2 dB |
| Slope | 20 ± 2 dB |
| Adjust Gain Level | 20 ± 2 dB |
| Return Loss | 10 dB |
| Noise Figure | 6 dB |
| Max Output Level | 115 dBuV |
| Power | 110 – 240VAC @60Hz |
| LED Indicator | Green or Red |
| Connectors | F (f) |
| Operation Temperature | -10 to +60 ℃ |
Additional Information
- High output level ensures strong signal amplification.
- Adjustable gain for personalized signal strength.
- Slope compensation for improved signal quality.
