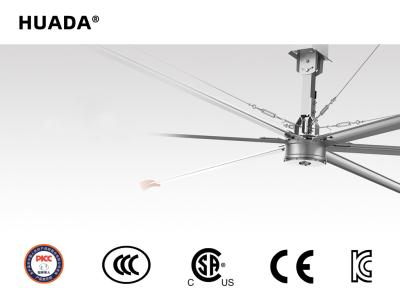

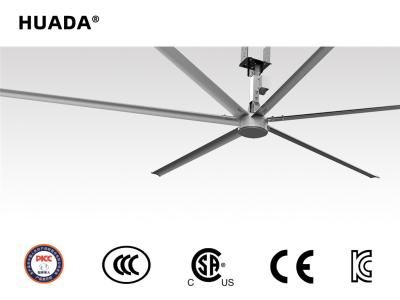

OEM ODM CE Certificated Ceiling Fan for Living Room Air Circualtion
Description

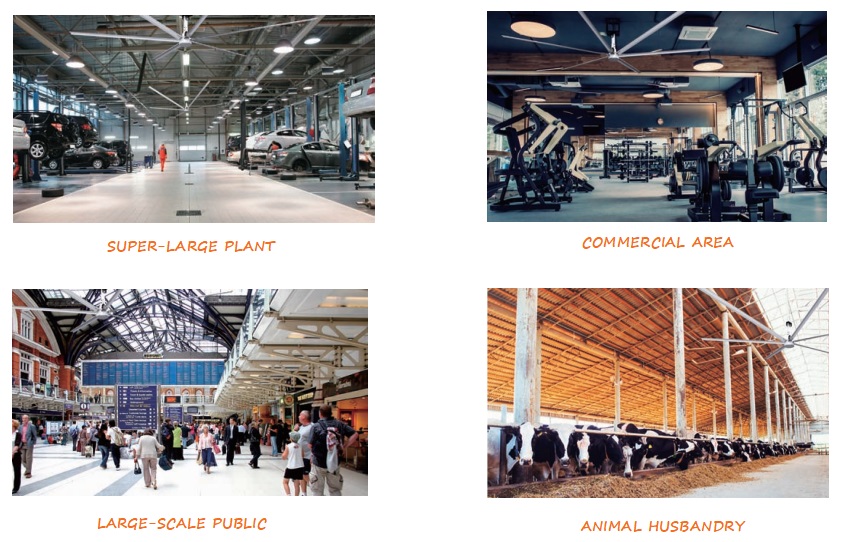

The Huada HDS series smart ceiling fan is expertly designed to enhance air circulation and comfort in various environments. Featuring a self-designed variable frequency speed control and a high-efficiency permanent magnet external rotor motor, this fan operates with low noise and a compact structure, making it an ideal choice for industrial plants, warehouses, waiting rooms, exhibition halls, and other large spaces. Its ability to push a substantial amount of airflow to the ground creates a comfortable moving airflow layer, mimicking the gentle experience of a natural breeze, thus improving overall air quality.
Specifications
| Model | Diameter (m) | Power (KW) | Voltage (V) | Air Volume (m3/min) | Noise (dB) | Weight (kg) |
|---|---|---|---|---|---|---|
| HDS-3 | 3 | 0.37 | 220-240/380-460 | 4000 | 38 | 35 |
| HDS-3.7 | 3.7 | 0.75 | 220-240/380-460 | 5000 | 38 | 38 |
| HDS-4.3 | 4.3 | 1.1 | 220-240/380-460 | 7000 | 38 | 46 |
| HDS-5 | 5 | 1.5 | 220-240/380-460 | 10000 | 38 | 49 |
| HDS-5.5 | 5.5 | 1.5 | 220-240/380-460 | 11000 | 38 | 99 |
| HDS-6.1 | 6.1 | 1.5 | 220-240/380-460 | 11500 | 38 | 103 |
| HDS-6.7 | 6.7 | 1.5 | 220-240/380-460 | 12000 | 38 | 107 |
| HDS-7.3 | 7.3 | 2.0 | 220-240/380-460 | 13000 | 38 | 111 |
Additional Information
Other specifications and models can be customized according to customer needs.
