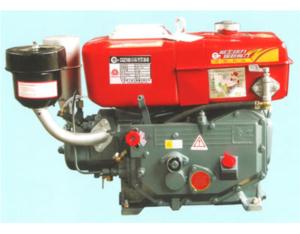

CGZ180 diesel engine
Inquire NowDescription
The CGZ180 diesel engine is engineered for efficiency and versatility, making it an ideal choice for a variety of applications including small agricultural machinery, irrigation systems, air compressors, and processing equipment. This lightweight engine features a compact design that enables easy mobility and simple installation. With minimal vibration and smooth operation, it ensures reliability and ease of maintenance, catering to the demands of modern farming and industrial tasks.
Specifications
| Parameter | CG170A | CG6 | CG8 | R175 / CGZ175 | R180 / CGZ180 | R190 / CGZ190 | CG12 / CGZ12 | CGZ13 |
|---|---|---|---|---|---|---|---|---|
| Engine Structure | Single-cylinder, horizontal, water-cooled, four-stroke | |||||||
| Combustion Chamber Type | Swirl Chamber | Direct Injection or Swirl Chamber | Direct Injection | |||||
| Cylinder Diameter (mm) | 70 | 76 | 80 | 75 | 80 | 90 | 90 | 95 |
| Rated Power/Speed (kw r/min) | 2.7/2600 | 4.2/3000 | 5.15/3000 | 4.85/2600 | 5.67/2600 | 7.7/2400 | 8.8/2400 | 9.7/2400 |
| Dimensions [LxWxH] (mm) | 435x245x332 | 486x255x352 | 486x255x352 | 589x341x463 | 625x341x463 | 625x341x464 | 670x378x560 | 670x378x560 |
| Net Weight (kg) | 31 | 42 | 42 | 68 | 75 | 105 | 105 | 105 |
| Main Features and Uses | Lightweight structure, easy mobility, simple installation, minimal vibration, smooth operation, and convenient maintenance. Suitable for micro tillage machines, irrigation, air compressors, and agricultural product processing machinery. | |||||||
