Description

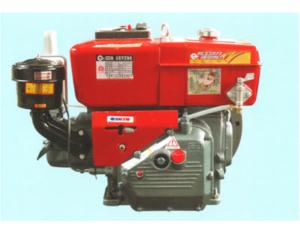

The CGZ190 diesel engine is a lightweight and compact powerhouse designed for versatility and efficiency. Featuring a single-cylinder, horizontal, water-cooled, four-stroke structure, it operates smoothly with minimal vibration, making it ideal for various applications. The engine supports micro tillers, irrigation systems, air compressors, and agricultural processing machinery. Its user-friendly design ensures easy installation and maintenance, providing reliable performance for a wide range of tasks.
Specifications
| Parameter | Model | CG170A | CG6 | CG8 | R175/CGZ175 | R180/CGZ180 | R190/CGZ190 | CG12/CGZ12 | CGZ13 |
|---|---|---|---|---|---|---|---|---|---|
| Engine Structure | Single-cylinder, horizontal, water-cooled, four-stroke | ||||||||
| Combustion Chamber | Swirl Chamber Type | Direct Injection or Swirl Chamber Type | Direct Injection | ||||||
| Cylinder Diameter (mm) | 70 | 76 | 80 | 75 | 80 | 90 | 90 | 95 | |
| Rated Power/Speed (kw r/min) | 2.7/2600 | 4.2/3000 | 5.15/3000 | 4.85/2600 | 5.67/2600 | 7.7/2400 | 8.8/2400 | 9.7/2400 | |
| Dimensions [LxWxH] (mm) | 435x245x332 | 486x255x352 | 486x255x352 | 589x341x463 | 625x341x463 | 625x341x464 | 670x378x560 | 670x378x560 | |
| Net Weight (kg) | 31 | 42 | 42 | 68 | 75 | 105 | 105 | 105 | |
| Key Features and Applications | Lightweight structure, convenient mobility, simple installation, minimal vibration, stable operation, and easy maintenance. Suitable for micro tillers, irrigation, air compressors, and agricultural processing machinery. | ||||||||
