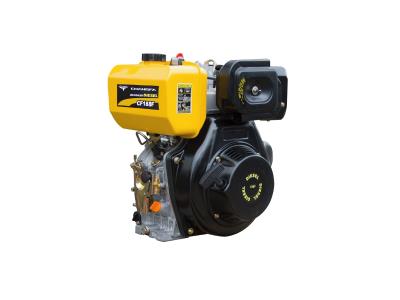

Changfa Single Cylinder Air Cooled Diesel Engine
Inquire NowDescription
The Changfa Single Cylinder Air Cooled Diesel Engine is a robust and efficient power solution designed for various applications including construction machinery, water pumps, generators, and agricultural equipment. This engine is renowned for its advanced structure, easy starting capability, quick acceleration, and extended service life.
With a low fuel consumption rate, the innovative fuel injection and combustion systems ensure maximum power output from every drop of diesel while minimizing exhaust emissions. The engine operates quietly thanks to its specially designed muffler that reduces noise and exhaust friction. Its versatility is highlighted by the optional output crankshaft types, allowing it to adapt to different usage conditions. Additionally, the top brand clearance plunger and high compression ratio facilitate smooth starting even in temperatures as low as -10℃.
Specifications
| Model | CF186FA(E) |
|---|---|
| Type | Single cylinder, vertical, 4-stroke, air-cooled |
| Combustion System | Direct Injection |
| Bore*Stroke (mm) | 86*72 |
| Displacement capacity (cc) | 418 |
| Speed (rpm) | 3000 / 3600 |
| Rated power (kW) | 5.7 / 6.6 |
| Rated power (Hp) | 7.7 / 9.0 |
| Starting system | F: Recoil starter E: Electric starter |
| Fuel tank volume (L) | 5.5 |
| Lubrication oil volume (L) | 1.65 |
| Fuel consumption (g/kW.h) | 3000rpm: 275 3600rpm: 281 |
| Fuel | 0# or -10# light diesel oil |
| Dimension (mm) | 500*470*550 |
| Gross weight (kg) | Recoil starter type: 49 Electric starter type: 54 |
| Rotation direction (view from the wheel) | Clockwise |
Additional Information
This engine is ideal for users looking for reliability and efficiency in various demanding environments. Whether for construction, agricultural tasks, or power generation, the Changfa Single Cylinder Air Cooled Diesel Engine offers a blend of performance and durability.
