China botou factory price old type 3 tons light weight aluminum wall roll forming
Inquire NowDescription
The light weight aluminum wall roll forming machine from China Botou factory is designed for efficiency and versatility, capable of processing various materials such as color steel plates, galvanized sheets, and aluminum coils. This robust machine operates with a productivity rate of 8-15 meters per minute, making it an ideal choice for manufacturing applications that require speed without compromising quality.
This machine features a compact design, making it easy to integrate into existing production lines. With a feeding width of 1000mm and a thickness range of 0.3-0.8mm, it is tailored to meet diverse manufacturing needs. The structure is built from high-quality materials, ensuring durability and longevity in operational use.
Specifications
| Feature | Specification |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 1000mm |
| Roller station | 11 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-15m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 75mm |
| Voltage | 380V 50Hz 3phases (or as your requirement) |
| Wall thickness of main forming machine | 14mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 4+3kw |
| Size | 6000*1350*1200mm |
| Weight | About 2.6 T |
| Note: All technical parameters can be changed according to user’s need. | |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, roundtrip ticket, accommodation, and a salary of 100 USD/day for the technician.

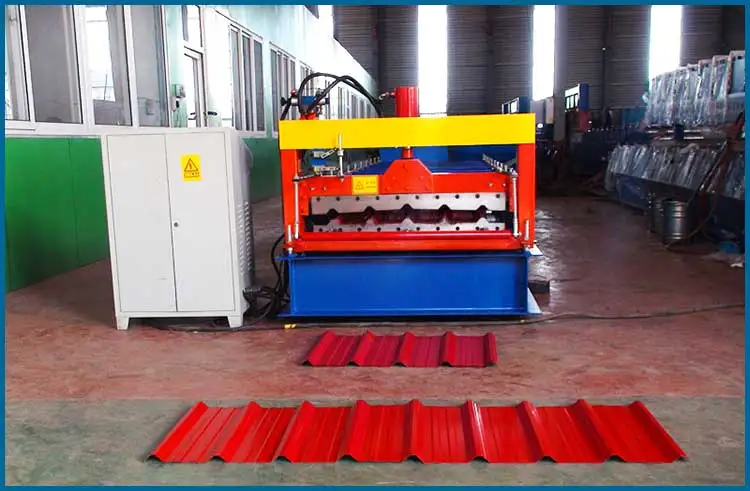

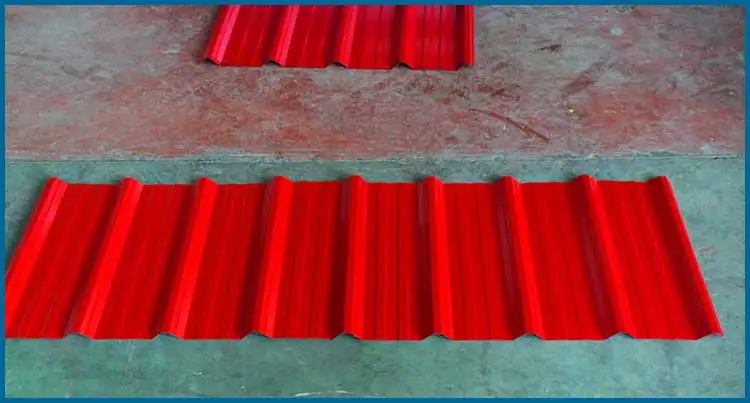

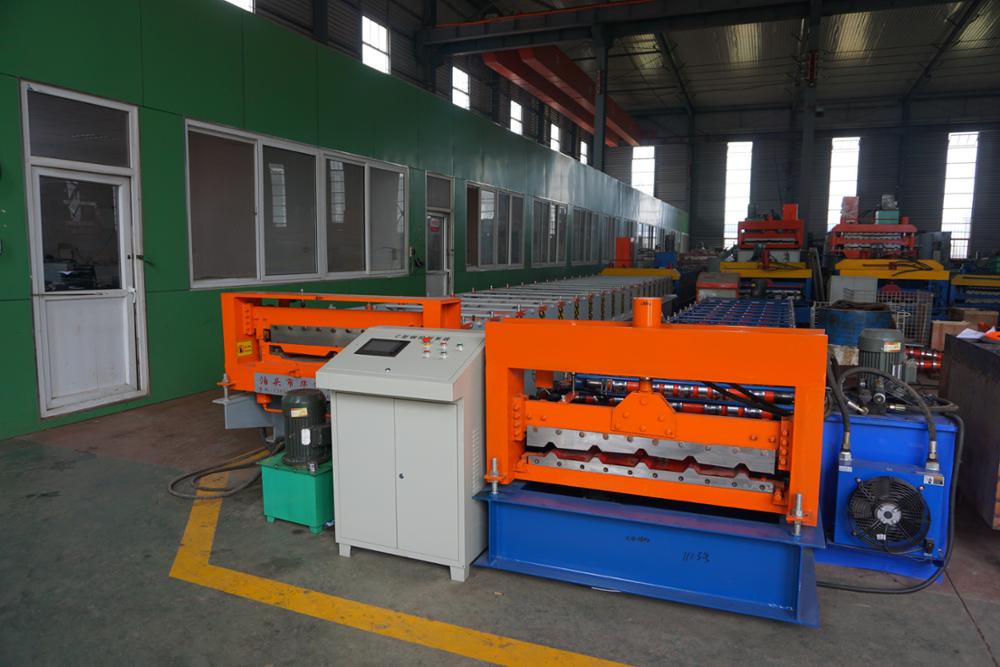

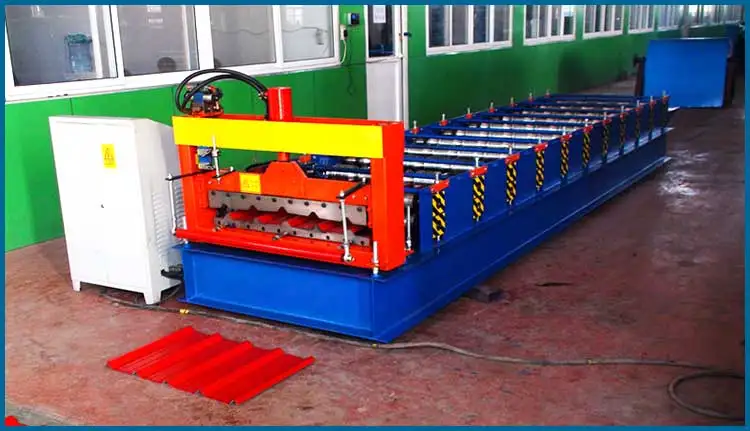

Product Pictures
