China botou factory price old type 3 tons light weight aluminum wall roll forming
Inquire NowDescription
The China Botou factory offers a competitively priced, lightweight aluminum wall roll forming machine, designed for efficient production of various metal sheets. This robust machine can process a range of materials, including color steel plates, galvanized sheets, and aluminum coils, making it an ideal addition to any manufacturing setup. With a processing capacity of up to 3 tons, it features a user-friendly interface and a high-performance roller station with 11 rows, ensuring precision and reliability in every operation.
Specifications
| Feature | Details |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils |
| Width of the feeding material | 1000mm |
| Roller station | 11 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-15m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 75mm |
| Voltage | 380V 50Hz 3 phases (or as per requirement) |
| Wall thickness of main forming machine | 14mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 4+3kw |
| Size | 6000*1350*1200mm |
| Weight | About 2.6 T |
| All technical parameters can be changed according to user’s needs. | |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational errors, the buyer will pay for the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, roundtrip ticket, suitable accommodation, and pay the technician a salary of $100/day.

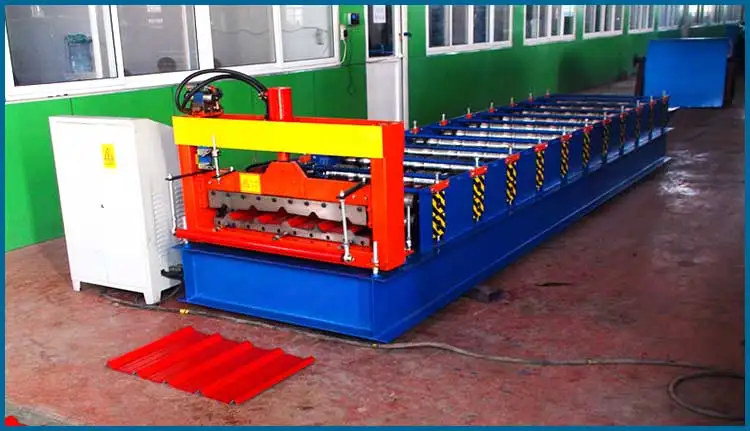

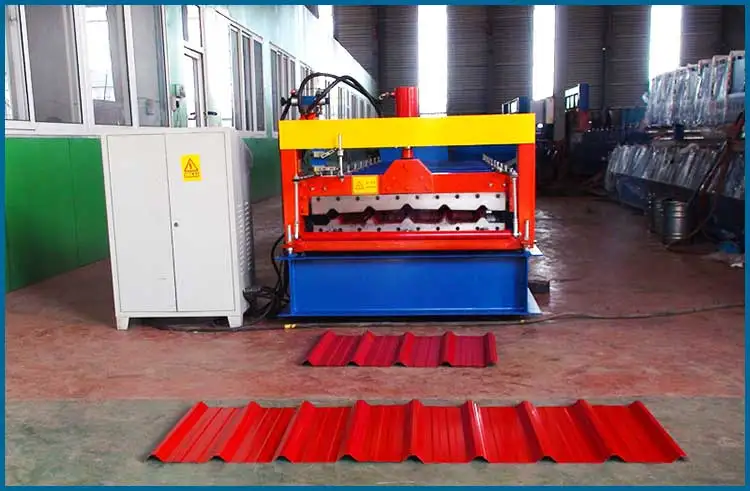

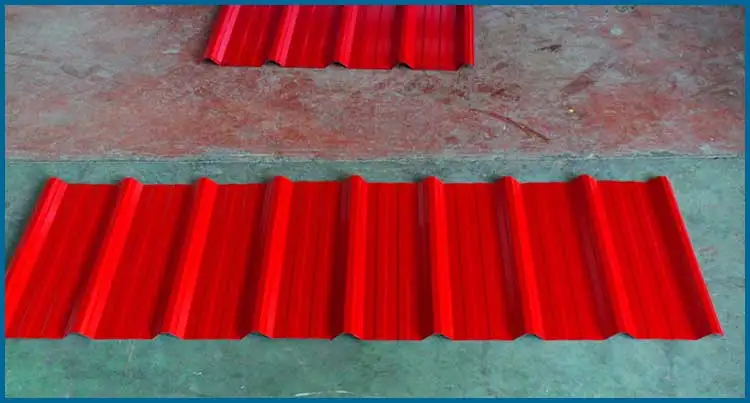

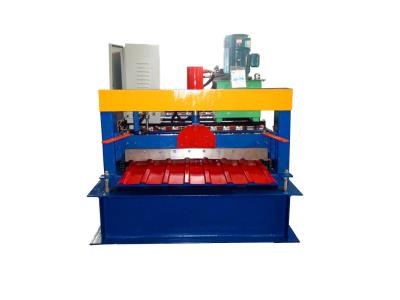

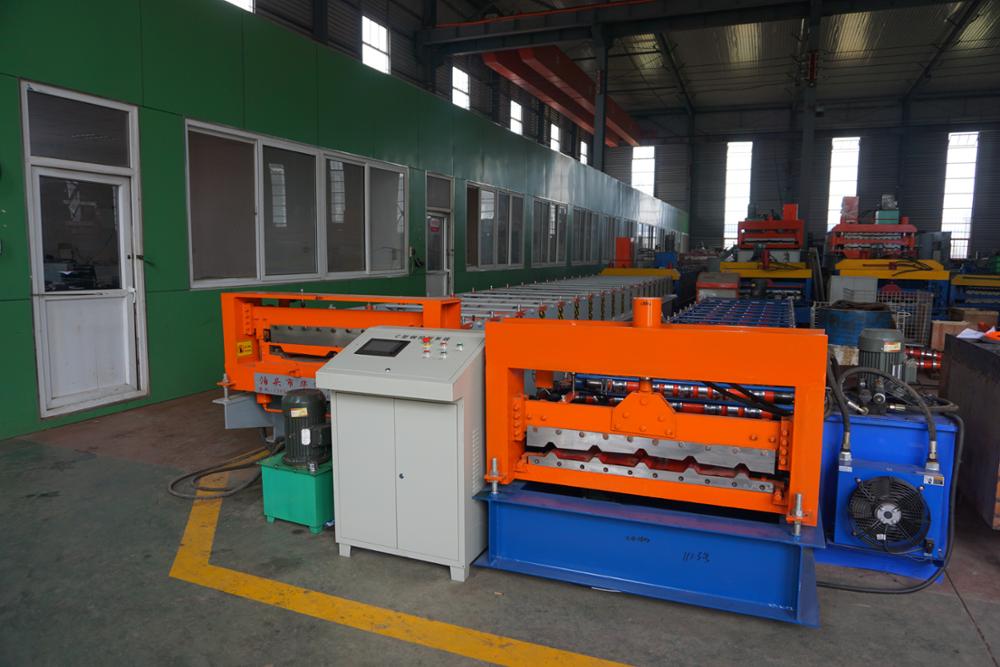

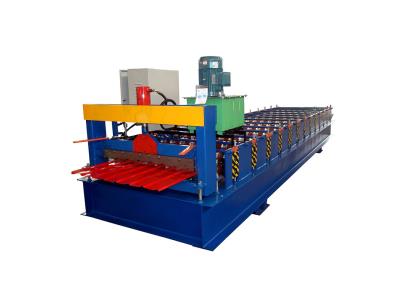

Product Pictures
