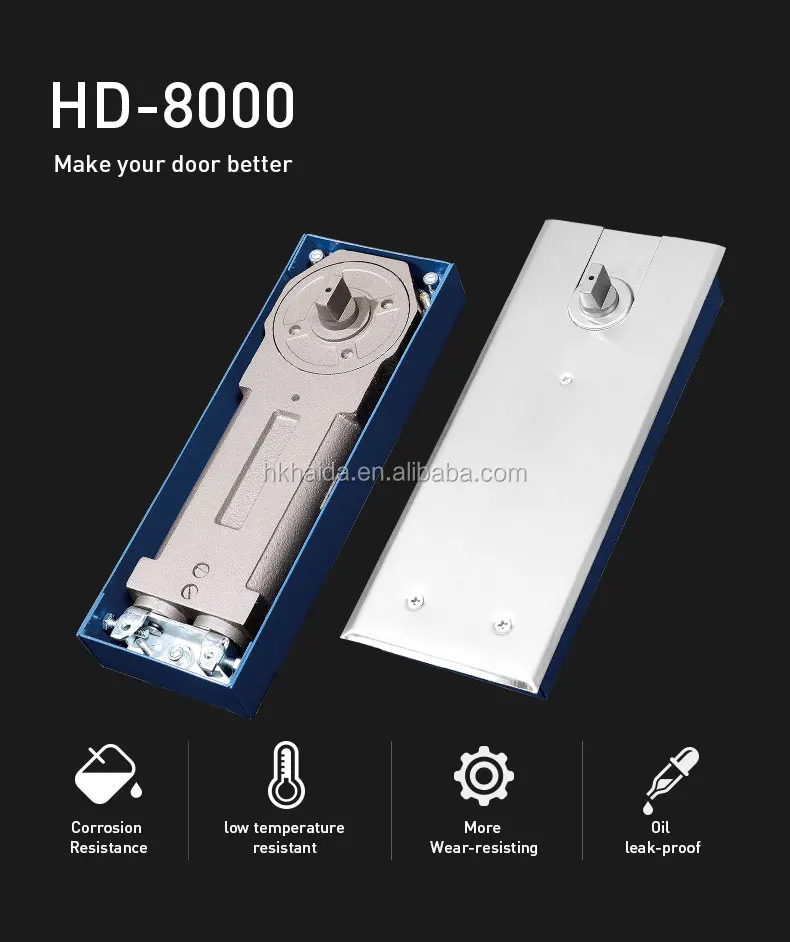

China Manufacturer Double cylinder Glass Door Floor Spring machine HD-8000 Floor Hinge
Inquire NowDescription
The Double Cylinder Glass Door Floor Spring Machine HD-8000 is a premium floor hinge designed for various applications, including glass, wooden, aluminum, and frame doors. Manufactured under the ISO9001 quality management system, this hinge offers precision engineering and durability. It features double speed adjustment and ball bearing technology, ensuring a smooth closing experience. With a fixed closing force available in EN2, EN3, or EN4, this model has been rigorously tested for up to 500,000 cycles, promising a long service life. The HD-8000 also comes with different cam options for enhanced versatility, suitable for international standards including Germany, Italy, Brazil, and Japan.
Specifications
| Attribute | Details |
|---|---|
| Model | HD-8000 |
| Applicable Standard | EN1154 & ISO9001 |
| Engine Cylinder | Double Cylinder |
| Max Door Width | 1000mm~1200mm |
| Max Door Weight | 100kg / 120kg / 150kg |
| Max Open Degree | 130° |
| Hold-Open | 90° or 105° or NHO |
| Latching Speed Adjustment | 0-20° |
| Closing Speed Adjustment | 20°-90° |
| Application Temperature | -40°-60° |

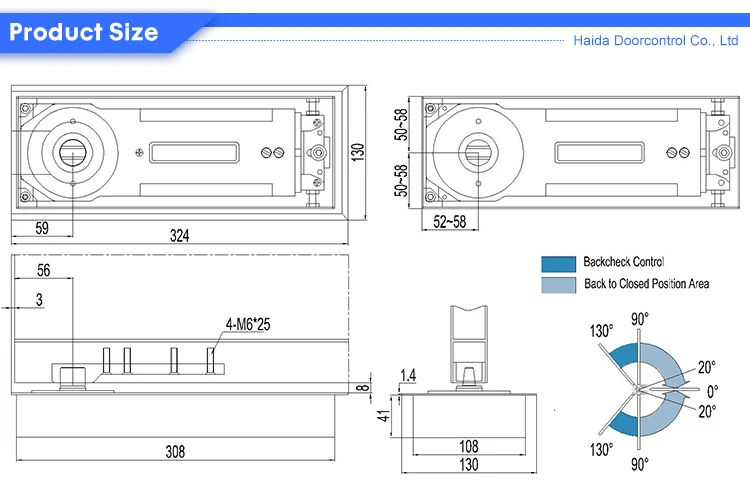

| Dimension (L*W*H) | 306mm * 108mm * 41mm |
Additional Information
- A. Produced under ISO9001 quality management system

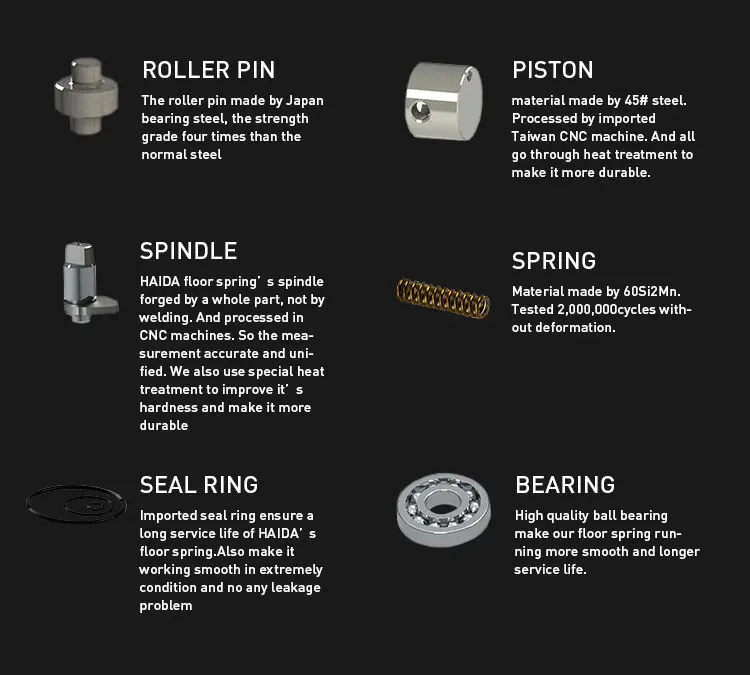

- B. Double speed adjustment, ball bearing inside, closing smoothly
- C. Fixed closing force EN2/EN3/EN4 for optional
- D. 500,000 cycles tested, long service life
- E. Applicable for glass door, wooden door, aluminum door, and frame door
- F. Different cam for optional (Germany, Italy, Brazil, Japan, and so on)
