clamp meter
Inquire NowDescription

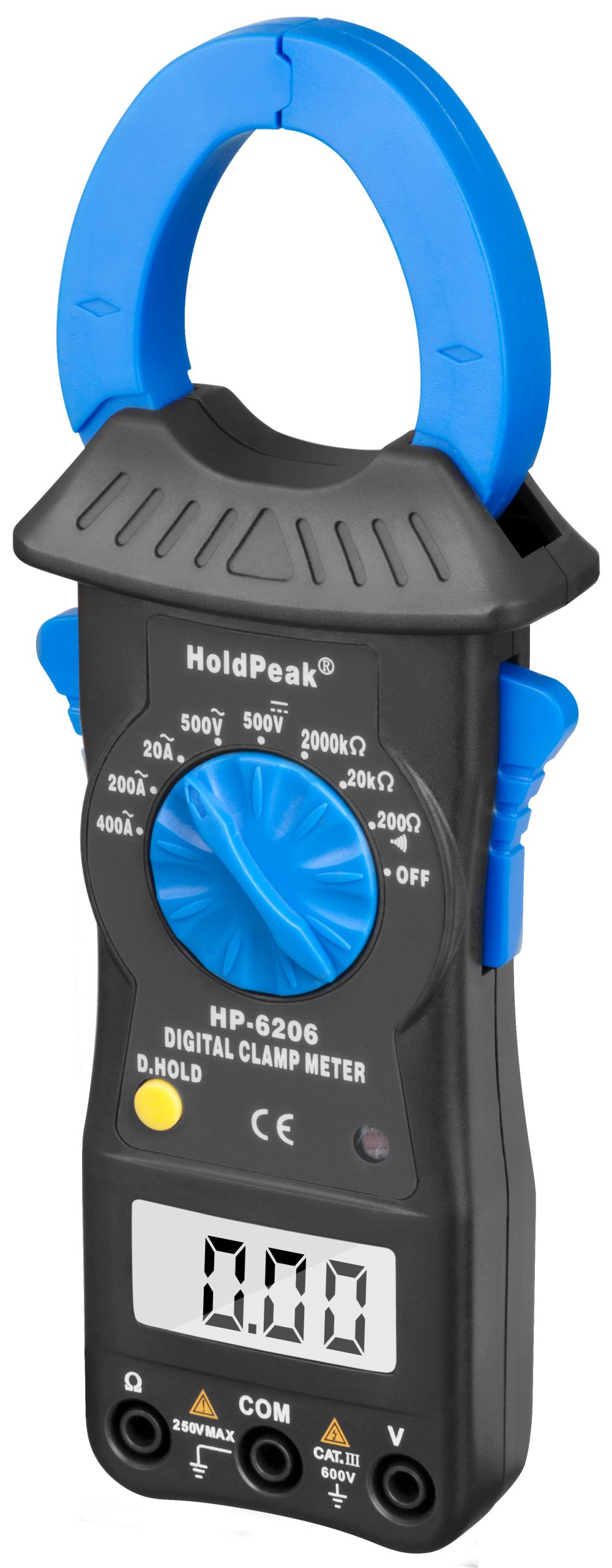

The 6206 Clamp Meter is a versatile 500V digital multimeter designed to meet the demanding needs of professionals across various industries. Featuring a double open jaw for enhanced accessibility and stability, this portable device boasts a high-resolution 6000 counts LCD monitor with 12.5mm character height for easy reading. Engineered with advanced circuitry, including large-scale IC A/D converters and an overload protection circuit, it ensures reliable performance and durability. The 6206 Clamp Meter is capable of measuring DC & AC voltage, DC & AC current, resistance, capacitance, frequency, temperature, positive diode voltage fall, and continuity, making it an indispensable tool in sectors such as manufacturing, telecommunications, petroleum refining, and chemical industries.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | HoldPeak |
| Model Number | HP-6206 |
| Display Type | Digital Only |
| Measuring Voltage Range | 500V |
| Measuring Current Range | 20A/200A/400A |
| Weight | 255g |
| Dimensions | 193*73*26mm |
| DIY Supplies | Electrical |
| Measuring Resistance Range | 200/20k/2000k |
| Display | 1999 |
| Operating Mode | Manual |
| Continuity Buzzer | YES |
| Date Hold | YES |
| Auto Back-Light | YES |
| Jaw Caliber | 34mm |
| Battery Type | 1.5V (AAA)*1 |
Additional Information
- Full range over current protection
- Low power consumption
- Stable performance and anti-dropping capacity
