CLL MECHANICAL CONNECTOR
Inquire NowDescription
The CLL Mechanical Connector is expertly designed for the intermediate connection of aluminium and aluminium alloy cables in low voltage applications. This robust connector ensures a reliable and stable connection, making it an essential choice for various electrical installations.
Constructed from high-strength aluminium alloy, the body of the connector guarantees durability, while the bolts are also made from aluminium alloy. The surface is treated with tin plating for enhanced corrosion resistance and longevity.
This product features a unique center block design, eliminating the need for crimping tools; instead, a socket spanner or wrench is all that’s required for installation. The torque-controlled shear head bolts are engineered to prevent damage to the conductors, ensuring a consistent and stable performance. Additionally, the connector comes prefilled with jointing compound, streamlining the installation process.
Designed in accordance with the IEC 61238-1: 2003 standard, the CLL Mechanical Connector boasts a wide application range, making it suitable for various low voltage projects.

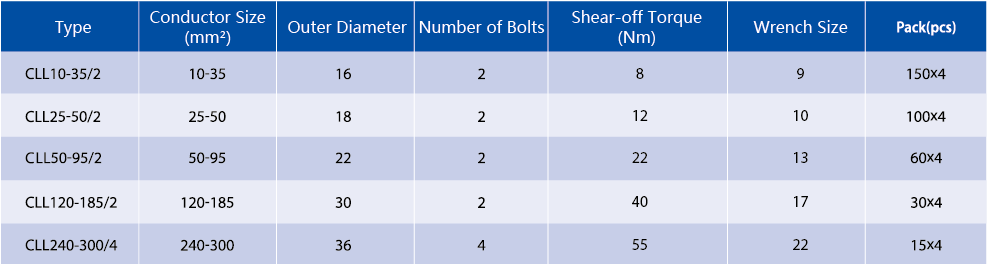

Specifications
| Attribute | Details |
|---|---|
| Material | High strength aluminium alloy (Body and Bolts) |
| Surface Treatment | Tin plated |
| Installation Tools Required | Socket spanner or wrench |
| Standard Compliance | IEC 61238-1: 2003 |
| Application | Intermediate connection of aluminium and aluminium alloy cables in low voltage |
Additional Information
- Features torque-controlled shear head bolts for damage prevention.
- Prefilled with jointing compound for easier installation.
- Wide application range suitable for multiple low voltage projects.
